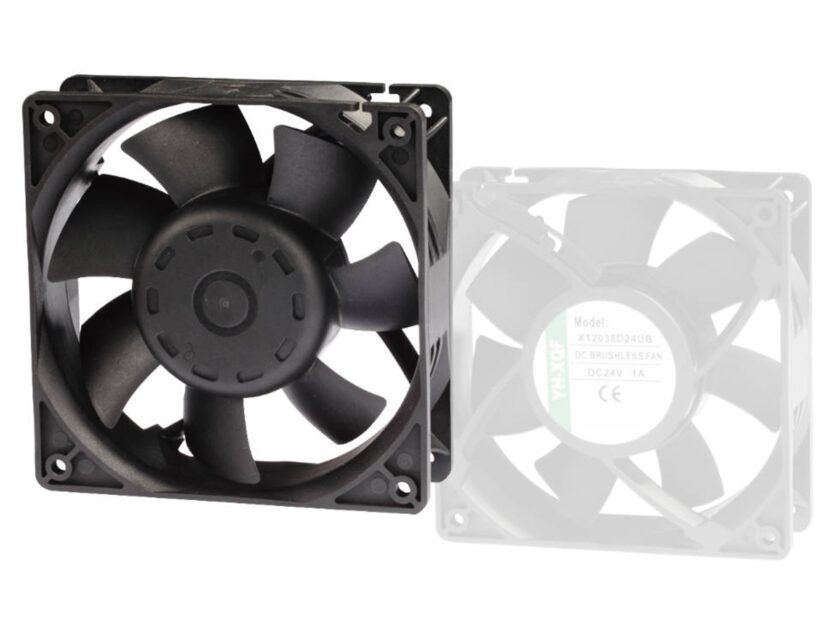

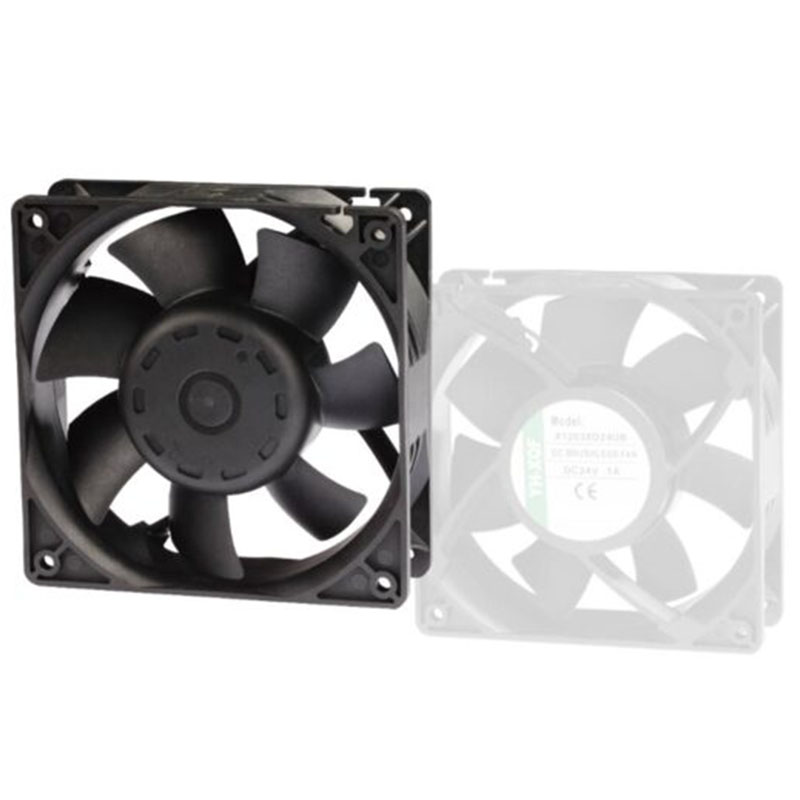

120x120x38mm DC Axial Fan Brushless Ball Bearing

The Ultimate Air Conditioning Service: The 120x38mm High-Speed Brushless DC Fan

On the planet of high-performance electronics and commercial equipment, reliable thermal monitoring is not just a feature– it is the cornerstone of integrity, durability, and peak performance. Warmth is the inevitable result of power, and its effective elimination is critical to stop system strangling, premature component failure, and catastrophic closures. This is where a truly exceptional air conditioning element becomes necessary.

We introduce a powerhouse of thermal characteristics: the 120x38mm DC axial fan, a design wonder created for the most demanding applications where compromise is not an alternative. Running at an awesome speed of roughly 5100 RPM, this DC axial fan is constructed to relocate an enormous volume of air with authority, guaranteeing your crucial parts continue to be cool under the most extreme functional pressure.

Unprecedented Airflow and Static Pressure

The main action of any kind of fan is its capacity to relocate air, and in this regard, this 120mm DC axial fan stands in a course of its very own. With its meticulously designed seven-blade impeller, it generates a remarkable maximum airflow of approximately 242 cubic feet per minute (CFM). This degree of air flow is capable of creating considerable turbulence within a room, making sure that no pocket of stationary hot air is left. It aggressively evacuates warmth from sensitive elements like CPUs, GPUs, FPGAs, and high-power voltage regulatory authorities, developing a stable and great operating environment.

However, large airflow is only half the tale. In numerous real-world applications, from dense 1U web servers to intricate commercial control cabinets, air movement is met with resistance from filters, heatsinks, and tightly loaded components. This resistance is called impedance, and conquering it requires high fixed stress.

This DC axial fan excels right here also, supplying an exceptional fixed stress of up to 1.18 inchH two O. This effective pushing pressure guarantees that cooling air properly permeates also the most limiting spaces, supplying straight and efficient cooling where it’s required most. The efficiency (P&Q) curve, which maps air movement against static pressure, demonstrates the DC axial fan’s capacity to keep substantial air movement even as backpressure increases, a testimony to its durable and enhanced design.

Engineered for Endurance and Integrity

A DC axial fan is often among the few mechanical parts in an otherwise solid-state system, making its toughness a vital issue. This 120x38mm DC axial fan is engineered from scratch for unrelenting, long-term procedure. At its core is a superior dual sphere bearing system. Unlike substandard sleeve bearings that are prone to wear and lube deterioration, twin round bearings use a considerably longer functional life-span, reduced friction, and the versatility to be placed in any kind of alignment– upright, straight, or tilted– without impacting efficiency or long life. This makes certain consistent and trustworthy air conditioning for many years to find.

The DC axial fan’s physical building and construction is similarly robust. Both the structure and the impeller are crafted from state-of-the-art Thermal Plastic that meets the UL 94V-0 flammability criterion. This requirements represents that the material is self-extinguishing and immune to igniting, a vital safety and security attribute for any digital device, particularly in commercial or industrial setups.

Moreover, the fan integrates vital electric motor protection modern technologies. Integrated impedance security safeguards the electric motor from damage if the blades are delayed, while reverse polarity defense avoids catastrophic failure in the event of inaccurate circuitry, including an additional layer of security throughout setup and upkeep.

Flexibility for a Range of Applications

Identifying that no two cooling difficulties equal, this DC axial fan is designed with intrinsic convenience. It is offered in numerous DC voltage scores, consisting of 12V, 24V, and 48V, making it perfectly compatible with a huge range of power systems found in customer electronics, telecoms infrastructure, and commercial automation.

Beyond its conventional arrangement, the DC axial fan can be furnished with a suite of sophisticated features to make it possible for smart and responsive thermal management:

• PWM Speed Control: Pulse Width Inflection (PWM) functionality permits precise, vibrant control over the fan’s rate. By connecting it to a motherboard or specialized controller, a system can instantly readjust the DC axial fan’s RPM in action to real-time temperature modifications. This causes an optimal balance of cooling down performance and acoustics– running quietly throughout idle periods and increase to full power just when required.
• Tachometer (FG) and Alarm System (RD) Signals: For mission-critical systems where cooling failure is not an alternative, the Regularity Generator (FG) and Turning Detector (RD) signals offer vital feedback. The FG signal outputs a pulse train corresponding to the fan’s rotational speed, enabling the system to monitor its wellness. The RD signal works as an alarm, notifying the system if the fan’s blades locks or stops working, allowing immediate rehabilitative action.

These functions make the 120x38mm DC axial fan the perfect selection for a considerable range of applications, including:

• Web Servers and Information Centers: Cooling high-density rack-mounted servers and network switches.
• Telecoms: Guaranteeing the reliability of base stations, routers, and other infrastructure.
• Industrial Automation: Cooling PLCs, motor drives, and power supply devices in control cabinets.
• High-Power Electronic Devices: Ventilating large welding devices, plasma cutters, and commercial-grade LED lights.
• Advanced Computing: Giving extreme cooling for high-end video gaming rigs and professional workstations.

Finally, the 120x38mm DC axial fan is greater than simply a component; it is an investment in the security and longevity of your beneficial devices. By providing an uncompromising combination of raw cooling power, extraordinary sturdiness, and intelligent attributes, it supplies the assurance that originates from understanding your thermal management is managed by the finest. When your application needs powerful, trustworthy, and constant cooling, this fan is the definitive service.
