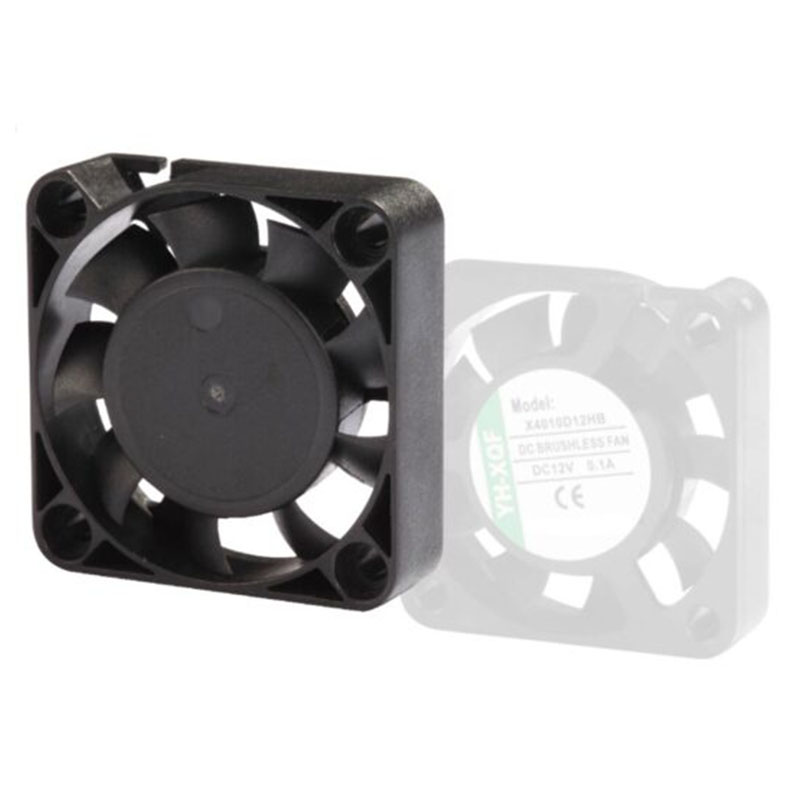

12V Brushless DC Axial Fan Cooling 40x40x10mm

Using Superior Cooling Power: A Comprehensive Look at the 12V Brushless DC Axial fan (40x40x10mm) .

In the ever-evolving landscape of electronic devices, where parts are continuously diminishing in size while simultaneously expanding in power, efficient thermal monitoring is no more a high-end– it is an absolute necessity. The long life, reliability, and peak performance of delicate digital elements are inherently connected to maintaining an ideal operating temperature. Answering this important demand is the compact and extremely efficient 12V Brushless DC Axial fan. Determining a simple 40x40x10mm, this cooling option is engineered to deliver outstanding airflow and static stress in a remarkably tiny impact, making it an ideal option for a large selection of applications where room is at a premium and efficiency can not be compromised.

Engineered for Accuracy and Durability .

At the core of this DC axial fan’s style is a commitment to quality and toughness. The frame and impeller are built from state-of-the-art thermal plastic that satisfies the UL 94V-0 flammability requirement, guaranteeing a high degree of security and resistance to heat. This robust building and construction allows the DC axial fan to run accurately throughout a vast temperature level spectrum, with a conventional operating temperature level range of -10 ° C to 70 ° C and a storage space temperature series of -40 ° C to 80 ° C. This resilience makes it suitable for deployment in varied and commonly difficult environmental problems.

the DC axial fan’s physical dimensions are diligently crafted for seamless assimilation. It includes a square framework of 40.0 ± 0.5 mm by 40.0 ± 0.5 mm, with a slim account of just 10.6 ± 0.5 mm in density. The mounting holes are strategically put in a standard 32.0 ± 0.3 mm square pattern, with a diameter of 4-Ø3.8 ± 0.3 mm, guaranteeing compatibility with a wide range of existing hardware and rooms. Weighing a simple 18 grams, its lightweight design lessens any kind of additional tons on the assembly structure. the DC axial fan is geared up with a 300 ± 10 mm lead cable, giving ample length for versatile link to a power source.

Unpacking the Performance: A Deep Study the Technical Specs .

The true action of an air conditioning fan depends on its performance metrics, and this 12V version is made to impress. Operating on a ranked voltage of 12 VDC, it is functional enough to operate within an operational voltage variety of 7.0 to 13.8 V, supplying flexibility in numerous power supply circumstances.

this DC axial fan is offered in numerous performance rates to accommodate details cooling needs:.

• High-Speed Design: For applications requiring maximum cooling, the high-speed alternative runs at a quick 9000 RPM. This version draws a rated current of 0.18 A, taking in 2.16 W of power. The outcome is a powerful maximum air movement of 8.56 Cubic Feet per Min (CFM), equal to 0.24 cubic meters per minute (m ³/ min). It likewise generates a substantial optimum fixed pressure of 5.85 mmH two O (0.23 inchH two O), making it extremely reliable at pushing air with restrictive spaces and largely stuffed parts. The compromise for this high performance is a noise level of 38 dBA.
• Standard-Speed Version: Striking a balance between durable performance and quieter operation, the standard-speed version runs at 7000 RPM. With a present draw of 0.12 A and power intake of 1.44 W, it delivers a solid maximum air flow of 6.66 CFM (0.19 m ³/ min )and a static stress of 4.85 mmH ₂ O (0.19 inchH ₂ O). Its sound degree is a more moderate 34 dBA.
• Low-Speed Version: When acoustics are a main worry, the low-speed option supplies efficient air conditioning with very little sound. Operating at 5000 RPM, it takes in simply 0.72 W of power (0.06 A present draw). This design creates a maximum air flow of 4.85 CFM (0.14 m ³/ minutes) and a static pressure of 2.52 mmH ₂ O (0.09 inchH ₂ O), all while maintaining a silent sound account of 25 dBA.

The partnership in between airflow (CFM) and static pressure (mmH two O) is graphically stood for in the offered P&Q (Pressure-Airflow) curve. This important graph illustrates that as the resistance to air flow (system insusceptibility) increases, the resulting airflow declines. By understanding the insusceptibility of their system, engineers can use the P&Q contour to precisely forecast the DC axial fan’s real-world efficiency and choose the optimum rate variation for their details cooling needs.

Advanced Attributes for Improved Dependability .

Beyond its raw efficiency numbers, this brushless DC fan integrates a suite of sophisticated functions designed to guarantee lasting, hassle-free operation. The electric motor is resistance shielded, a critical security feature that safeguards the motor from damage in the event of a blades lock. Additionally, it consists of reverse polarity security, which prevents damages to the DC axial fan’s electronic devices if the power leads are mistakenly attached inaccurately.

An “Vehicle Reactivate” feature is an additional vital integrity feature. Should the DC axial fan’s rotation be blocked for any kind of reason, the electric motor will immediately shut down to prevent overheating and afterwards attempt to reactivate regularly as soon as the blockage is removed. This smart feature enhances the DC axial fan’s autonomy and secures it from potential failure settings.

To meet the varied demands of modern-day electronics, the DC axial fan is supplied with two key bearing systems:.

• Round Bearing System: Known for its long life and higher temperature resistance, the double sphere bearing system is the costs option for applications where the DC axial fan will certainly be in continuous operation or based on elevated temperatures. It uses a much longer functional lifespan and consistent performance in time.
• Ball/Sleeve Bearing System: This crossbreed system offers an economical remedy that incorporates a round bearing and a sleeve bearing. It offers a great equilibrium of performance, cost, and longevity, making it a preferred choice for a wide range of customer and industrial applications.

These bearing alternatives, integrated with the numerous rate rates, enable accurate modification to match the particular needs of any type of task, balancing performance, acoustics, and expense.

Versatility in Application .

The portable size, robust building, and remarkable performance of this 40mm axial fan make it an extremely versatile air conditioning service for a wide variety of applications, including however not restricted to:.

• 3D Printers and Additive Manufacturing: Giving crucial cooling for hotends, extruder electric motors, and control panel to guarantee print quality and stop failings.
• Networking and Telecoms: Cooling down network switches, routers, and various other small interaction gadgets.
• Embedded Systems and Single-Board Computers: Handling warmth in densely packed units for gadgets like the Raspberry Masterpiece and other SBCs.
• LED Lights: Dissipating heat from high-power LED motorists and varieties to preserve illumination and expand life expectancy.
• Medical Devices: Making sure the dependability of compact clinical and analysis devices.
• Automotive Electronic Devices: Cooling infotainment systems, ECUs, and other in-vehicle electronic devices.
• PC Modding and Tiny Kind Aspect Constructs: Providing targeted place cooling for chipsets, VRMs, and disk drives in small computer system systems.

Finally, the 12V 40x40x10mm Brushless DC Axial fan stands as a testimony to modern design, using a powerful, dependable, and highly functional thermal management service. Its mix of a long lasting, compact layout, a variety of performance choices, and progressed safety features makes it a crucial part for designers, developers, and hobbyists alike. By effectively dissipating warm, this small but magnificent fan plays an essential duty in unlocking the full capacity and making certain the lasting reliability of a new generation of digital gadgets.
