12V DC Axial Fan Ball Bearing Brushless

High-Performance 12V DC Axial Fan: A Comprehensive Cooling Service .

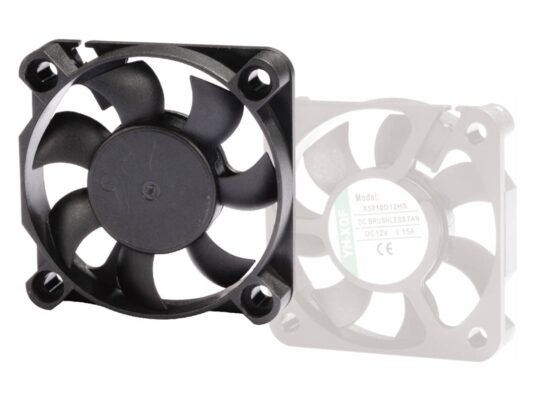

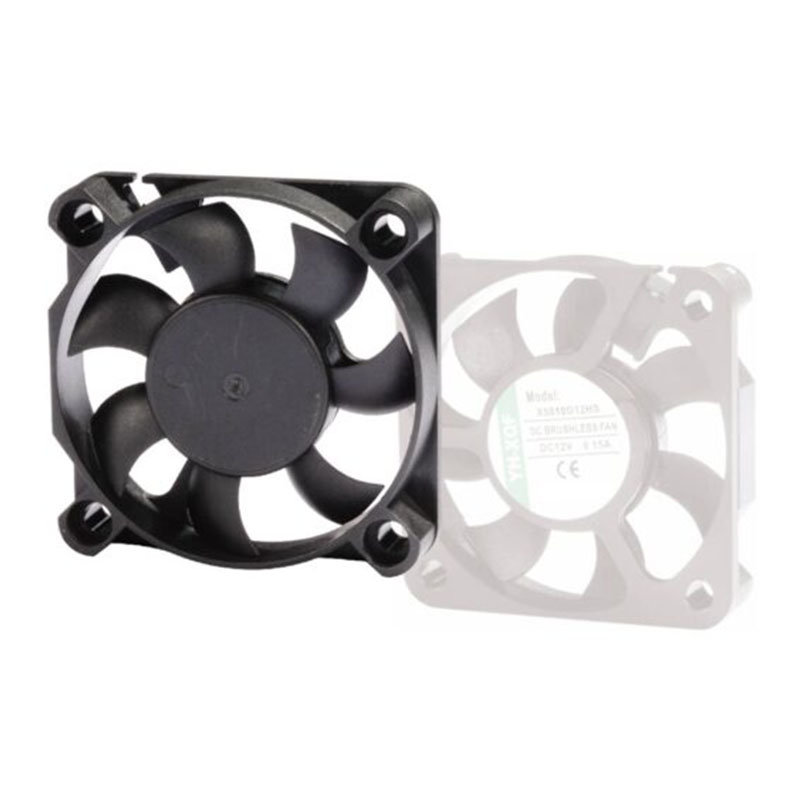

In the world of contemporary electronic devices, efficient thermal management is not simply a recommendation; it is an essential demand for guaranteeing gadget durability, integrity, and optimal efficiency. This 50x50x10.5 mm DC axial fan becomes a premier solution, thoroughly crafted to fulfill the stringent air conditioning demands of small and power-dense applications.

Developed for engineers, technology fanatics, and suppliers, this DC axial fan incorporates innovative motor technology, superior bearing systems, and robust construction to deliver phenomenal air movement, resilience, and peaceful procedure. It represents an essential element for any individual looking to develop or keep high-performance electronic systems, from custom PCs and 3D printers to advanced networking and web server devices.

The Core of Effectiveness: The Brushless DC Electric Motor .

At the heart of this DC axial fan exists a highly advanced Brushless DC (BLDC) electric motor, a crucial attribute that sets it in addition to traditional air conditioning solutions. Unlike older cleaned motors that depend on physical contact points (brushes) to promote turning, BLDC electric motors use electronic commutation. This modern-day strategy removes the friction and wear connected with brushes, causing a host of substantial benefits.

The most noteworthy advantages are a substantially boosted operational lifespan, premium power performance, and significantly quieter efficiency. By minimizing energy loss to friction and warmth, the BLDC motor makes sure that even more power is converted straight into rotational pressure, supplying regular and trusted air conditioning while taking in very little power. Furthermore, the absence of brushes decreases electro-magnetic interference (EMI), making this DC axial fan a suitable choice for implementation in or near delicate digital components where signal integrity is critical.

Engineered for Longevity: The Dual Round Bearing System .

The true action of a fan’s integrity over time hinges on its bearing system, and this model is furnished with a high-grade dual round bearing system for maximum endurance. Sphere bearings are significantly above common sleeve bearings, particularly in demanding applications. While sleeve bearings are frequently quieter and less expensive initially, they are vulnerable to use, have a shorter life expectancy, and are generally limited to horizontal installing.

In contrast, round bearings make use of rolling aspects to drastically decrease rubbing, enabling them to endure greater running temperature levels and last considerably much longer– frequently over 50,000 hours of constant use. An essential benefit of the round bearing design is its flexibility in mounting orientation. It executes similarly well whether mounted up and down, horizontally, or at any kind of angle, without the risk of premature wear or lubricant leak. This makes it a dependable “set-and-forget” remedy for equipment that runs around the clock or lies in hard-to-access areas where upkeep is unwise.

Performance Deep Dive: Comprehending Airflow and Fixed Stress .

Reliable cooling is an equilibrium in between 2 crucial performance metrics: airflow and fixed stress. Airflow, determined in Cubic Feet per Minute (CFM), measures the quantity of air the DC axial fan can relocate. Fixed pressure, gauged in inches of water (inchH ₂ O), defines the force the DC axial fan can exert to press air against resistance, such as with dense heatsinks, filters, or crowded chassis. this DC axial fan is offered in a number of performance versions, with choices delivering up to a powerful 14.36 CFM and generating a static stress of as much as 0.22 inchH ₂ O.

The partnership in between these 2 factors is highlighted by the DC axial fan’s P-Q (Pressure-Airflow) efficiency contour. This contour reveals that in an open, unrestricted atmosphere, the DC axial fan will certainly attain its optimum air movement. Alternatively, if the air passage is entirely blocked, it will certainly create its optimum static pressure yet with absolutely no airflow.

In any type of real-world application, the DC axial fan operates at a factor along this contour determined by the system’s resistance– the total resistance to airflow. The robust efficiency envelope of this DC axial fan ensures it can keep effective air conditioning also in high-impedance atmospheres, making it extremely versatile for a variety of system styles.

Robust Construction and Integrated Safety And Security Includes .

Durability and security are vital in the layout of any kind of digital component. The framework and nine-blade impeller of this DC axial fan are created from high-grade thermal plastic that fulfills the stringent UL 94V-0 flammability standard. This is the highest possible score for plastics, representing that the material will certainly self-extinguish within 10 seconds of a flame being gotten rid of and will certainly not produce flaming drips that might fire up other products. This function provides a crucial layer of safety and security, reducing fire danger within a digital unit.

Additional boosting its integrity are 2 vital built-in electric motor security mechanisms:.

• Insusceptibility Security: This safety function avoids the motor from overheating and stressing out if the DC axial fan blades come to be blocked. It functions by inherently restricting the existing drawn by the motor windings to a risk-free level during a locked-rotor condition, securing the DC axial fan from damage.
• Reverse Polarity Protection: This function safeguards the DC axial fan’s sensitive inner electronic devices from damage if the power wires are accidentally linked incorrectly. In case of reversed polarity, the defense circuit disrupts the power flow, avoiding disastrous failure and making installation more secure and extra forgiving.

Electric Qualities and Relieve of Installment .

Engineered for smooth combination, this DC axial fan operates a rated voltage of 12V DC however is made to operate dependably throughout a broad operating voltage variety of 7.0 V to 13.8 V. This tolerance ensures constant performance despite having minor variations from the power supply, which is common in numerous systems.

The DC axial fan features a basic two-wire (favorable and adverse) lead, kindly measuring 300mm (roughly 11.8 inches) in length. This provides enough adaptability for transmitting and attaching the DC axial fan within various chassis sizes without the prompt need for cord extensions. With a light-weight style at simply 19 grams and basic 50mm structure with 40mm placing holes, it is a drop-in remedy for a wide range of applications.

Versatile Applications .

The compact dimensions, durable performance, and long-life features of this 12V DC axial fan make it a perfect choice for a large selection of cooling applications, consisting of:.

• 3D Printers: Cooling down hotends, extruder electric motors, and control boards to make certain print high quality and stop failures.
• Single-Board Computers and Advancement Boards: Proactively cooling down processors on devices like the Raspberry Specialty to avoid thermal throttling and preserve peak performance.
• Network and Storage Instruments: Providing crucial airflow for routers, switches, and Network-Attached Storage Space (NAS) units.
• Compact Kind Aspect (SFF) Computers: Getting rid of heat from constrained computer cases where air movement is limited.
• Audio/Video and Security Equipment: Cooling amplifiers, receivers, and DVRs that run constantly.
• Personalized Electronics Projects: Providing a reputable and easy-to-integrate air conditioning option for plenty of do it yourself tasks.

In conclusion, this 50mm axial fan is more than simply a part; it is a detailed thermal administration option. By integrating the performance and longevity of a brushless DC motor, the undeviating durability of a dual round bearing system, and a collection of durable safety and construction functions, it stands as an exemplary option for any application where efficiency and integrity are non-negotiable.
