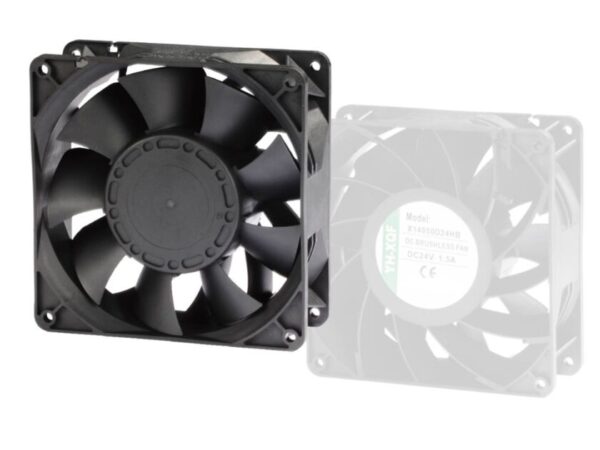

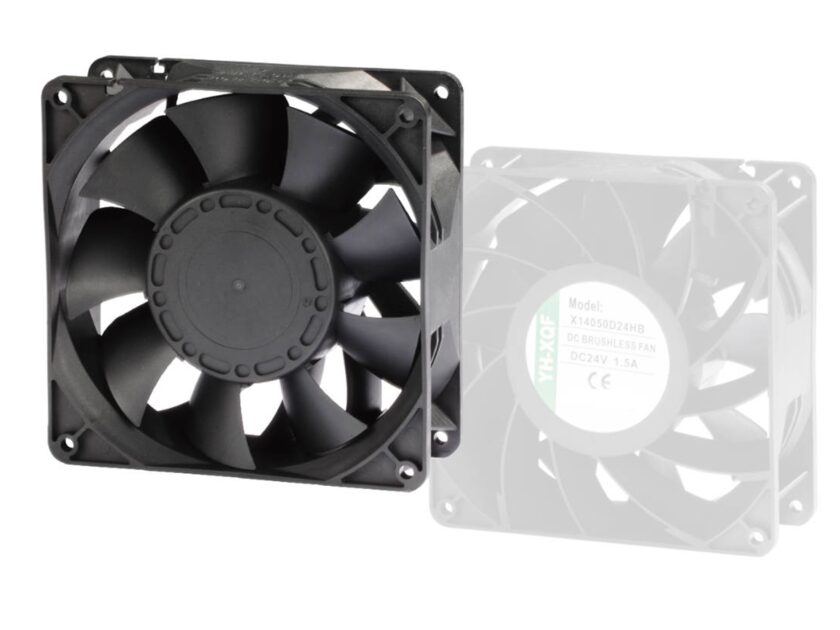

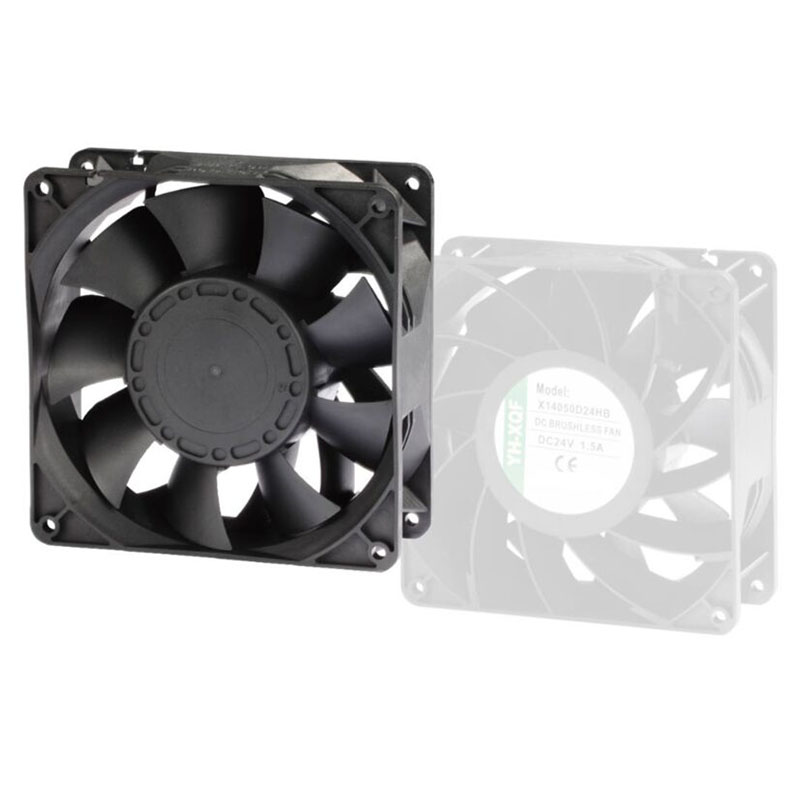

140mm DC Axial Fan Brushless High Speed

A Comprehensive Intro to the High-Performance 140mm DC Axial fan

Worldwide of contemporary electronic devices and commercial equipment, reliable thermal administration is not just a feature– it’s an essential requirement. As elements become extra powerful and small, the warmth they produce can break down efficiency, decrease life expectancy, and also cause tragic system failing. Answering the call for durable, trusted, and powerful cooling is this 140mm DC Axial Fan, a solution crafted for the most requiring applications where consistent efficiency and resilience are vital.

This fan is not just an element; it’s a thorough air conditioning solution constructed to relocate significant volumes of air, hold up against tough functional conditions, and supply a suite of adjustable attributes to incorporate flawlessly right into advanced systems. From high-density server racks and telecommunication cupboards to commercial control systems and high-performance computer rigs, this fan supplies the air movement and stress needed to maintain optimal operating temperatures.

Robust Building And Construction and Thoughtful Layout .

At the heart of this DC axial fan’s integrity is its superior construction. The structure and nine-bladed impeller are crafted from top quality Thermal Plastic, which meets the UL 94V-0 flammability standard. This is a vital security attribute, as this ranking symbolizes that must the product spark, it will certainly self-extinguish within 10 secs on an upright sampling, without producing flaming drips. This makes certain a higher degree of safety, particularly in encased digital gadgets where a fire can be ravaging.

The DC axial fan’s physical dimensions are a standard 140mm x 140mm, with a substantial thickness of 51mm. This deepness is a key element of its powerful efficiency, permitting a much more aggressive blade pitch and an effective electric motor, which together create both high air movement and high fixed stress. Placing is standard and uncomplicated, with four 4.5 mm holes set in a 125mm x 125mm square pattern, guaranteeing compatibility with a wide range of situations, braces, and enclosures. All models in this series have a solid weight of 500 grams, a testament to the robust motor and durable framework building.

Uncompromising Efficiency: Airflow and Static Stress .

The key feature of any DC axial fan is to relocate air, and this 140mm model masters this respect, supplying a functional range of efficiency rates to match numerous demands. On top end, it is capable of producing a massive maximum airflow of 320.11 Cubic Feet per Minute (CFM) . This degree of airflow is important for applications that need fast warm exchange in huge units or for cooling down largely packed components. For applications where sound or power usage is a better issue, options are readily available that provide a still-impressive 218.25 CFM.

Nevertheless, raw air movement is just half the tale. In several real-world applications, air should be forced through barriers like thick heatsinks, radiators, filters, or limiting chassis grills. This is where fixed pressure ends up being vital. Static pressure is the step of force a DC axial fan can put in to press air through such resistance.

This DC axial fan boasts a optimum static pressure of up to 29.02 mmH ₂ O (millimeters of water), making it remarkably appropriate for high-impedance settings. For much less limiting applications, designs are readily available with a static stress of 14.9 mmH ₂ O. The P&Q (Pressure vs. Airflow) contour offered in the requirements illustrates this trade-off, showing how the DC axial fan will carry out across a variety of system resistances, enabling designers to choose the excellent operating point for their details design.

Performance and Durability: The Brushless DC Motor and Ball Bearings .

Powering this outstanding efficiency is a sophisticated brushless DC (BLDC) motor. Unlike their brushed counterparts, BLDC motors have no physical brushes to wear out, resulting in considerably greater effectiveness, a much longer functional lifespan, and quieter procedure. This technology additionally allows for more specific rate control and creates much less electro-magnetic interference (EMI), a crucial advantage for sensitive electronic atmospheres.

To match the longevity of the motor, the DC axial fan is outfitted with a double ball bearing system . Ball bearings transcend to typical sleeve bearings in almost every statistics for high-performance applications. They provide a lot longer life span, can operate accurately at greater temperatures, and are not restricted by mounting positioning– they carry out just as well whether installed vertically, horizontally, or at an angle. This guarantees constant and trustworthy efficiency for tens of countless hours, also under constant operation.

The DC axial fan’s longevity is more underscored by its broad operational temperature level range, from -10 ° C to +70 ° C , and a storage space temperature level range of -40 ° C to +85 ° C. This strength makes it an ideal option for environments that are not climate-controlled, such as or exterior telecom units. For added peace of mind, the motor features integrated resistance protection , which prevents fatigue if the rotor is obstructed, and turn around polarity defense , which safeguards the DC axial fan’s electronics against accidental wrong circuitry during installment.

Adaptability and Intelligent Control .

Acknowledging that contemporary systems demand greater than just raw performance, this DC axial fan is readily available with a variety of power and control choices. It can be set up for various DC power systems, with 12V, 24V, and 48V rated voltage alternatives . This flexibility permits it to be incorporated into every little thing from consumer-grade PCs (12V) and commercial automation systems (24V) to telecommunications tools (48V).

Performance can be specifically scaled throughout four main speed rankings: 2800 RPM, 3200 RPM, 3700 RPM, and 4000 RPM . This selection enables an equilibrium in between maximum air conditioning, energy performance, and acoustics. Noise degrees vary from a moderate 56 dBA for the lower-speed models to a durable 69 dBA for the highest performance variant– a sound degree a measure of its powerful air-moving capacity.

For systems that need intelligent, vibrant control, the DC axial fan can be outfitted with numerous sophisticated functions:.

• PWM (Pulse Size Modulation) Control: This function provides a 4th wire for a PWM signal, allowing a motherboard or devoted fan controller to precisely handle the fan’s speed based upon real-time system temperature levels. This allows the system to run almost silently at still and ramp up to full power just when required, maximizing both acoustics and cooling efficiency.
• FG (Frequency Generator) Signal: Also called a tachometer outcome, this third-wire signal supplies responses on the fan’s rotational rate. System managers can use this data to keep an eye on the health and performance of the cooling system, ensuring all fans are running as anticipated.
• RD (Rotation Detector) Signal: This feature acts as a basic however essential alarm system. It sends out a high or low signal to the system to indicate whether the fan is rotating or has actually stopped working. In mission-critical applications like web servers or medical tools, this alarm can trigger signals or system shutdowns to avoid tragic damage from overheating.
• IP (Access Protection) Rating: For implementation in specifically harsh environments, the fan can be made to fulfill specific Access Security standards, offering certified defense against the invasion of dust and dampness.

Conclusion .

This 140mm High-Speed DC Axial fan is a masterclass in cooling design, created from the ground up for performance, integrity, and versatility. By incorporating an effective and efficient brushless motor, a resilient twin sphere bearing system, and a robust, safety-rated building and construction, it provides extraordinary air flow and fixed pressure. With its wide range of readily available voltages, rates, and progressed control features like PWM, FG, and RD, it is greater than simply an element– it is a clever, adaptable, and crucial tool for any kind of significant thermal monitoring approach.

Whether you are a designer developing an industrial control cabinet, a systems integrator building a server cluster, or a lover seeking the best in computer cooling, this DC axial fan supplies the uncompromising efficiency called for to keep important elements cool down, stable, and running successfully for many years to find.
