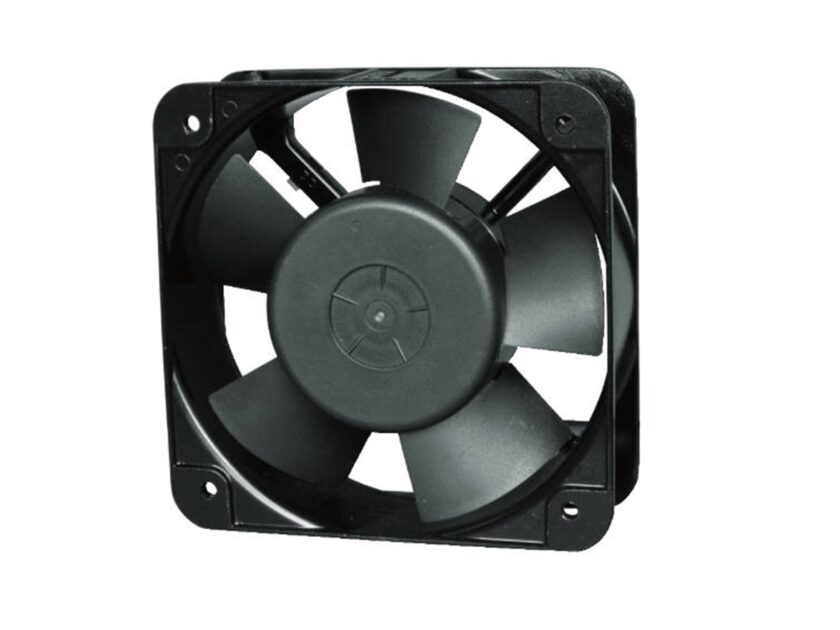

150x150x50mm AC Axial Fan, 110V/220V, Ball/Sleeve
This 150x150x50mm AC axial fan operates on 110V or 220V, offering reliable performance with sleeve or ball bearings. It delivers 175–195 CFM airflow at 2600–2800 RPM, with low noise levels of 48–52 dBA, making it ideal for ventilation and cooling systems.
Item Intro: 150x150x50mm AC Axial Fan (110V/220V, Ball/Sleeve Bearing) .
The 150x150x50mm AC Axial Fan is a durable and extremely effective air-moving remedy developed to fulfill the growing thermal management demands of commercial and commercial systems.
Developed with precision engineering and available in both ball and sleeve bearing setups, this AC axial fan makes sure trusted air movement efficiency, decreased operational noise, and expanded service life. Operating at standard a/c voltages of 110V and 220V with dual-frequency compatibility (50/60Hz), it is the excellent suitable for cooling rooms, ventilation systems, control closets, and various other heat-sensitive electronic or mechanical applications.
Design & Building and construction .
This AC axial fan features a square metal framework measuring 150mm x 150mm x 50mm , making it suitable for tool to big enclosure systems. The housing is built from durable materials created to withstand ecological and mechanical stresses, making sure durability and durability even sought after atmospheres. Its 7 aerodynamic blades are optimized for well balanced air flow and effective warmth dissipation while keeping minimal noise.
The AC axial fan’s construct enables simple assimilation with a wide range of systems, thanks to basic installing dimensions and an user-friendly design. It consists of 4 corner installing openings (8 openings, Ø4.2 mm) for protected fastening and resonance minimization. The AC axial fan is further sustained by double lead wires determining approximately 300mm in size, using 22AWG gauge for secure and constant power supply.
Electric & Mechanical Specs .
Ranked Voltage and Frequency .
- Voltage Options: 110V AIR CONDITIONING or 220V AIR CONDITIONING.
- Frequency Compatibility: 50/60Hz.
- These requirements allow the follower to be operated throughout international power criteria, making it very adaptable for global use.
Existing Draw .
- 110V Variation: 0.40 A (50Hz)/ 0.34 A (60Hz).
- 220V Version: 0.23 A (50Hz)/ 0.27 A (60Hz). This small current draw allows the follower to run successfully without burdening power products, particularly in multi-fan setups.
Bearing System Options .
- Sleeve Bearing: Cost-efficient, quiet operation, appropriate for upright or low-duty applications.
- Sphere Bearing: Prolonged service life, better thermal endurance, perfect for straight or high-duty cycles.
Each bearing type is optimized for different working environments, permitting users to choose the most effective fit based upon operational tons, temperature, and orientation.
Performance Metrics .
Rate (RPM) .
- 2600 RPM (50Hz) .
- 2800 RPM (60Hz) . The follower runs at high rotational speeds, adding to its powerful air flow capacities. This high RPM aids swiftly eliminate warmth and maintain temperature level security.
Air flow .
- 175 CFM (50Hz) .
- 195 CFM (60Hz) . These remarkable air flow numbers make this axial fan suitable for moderate to high cooling demands. The follower can relocate a considerable volume of air via units, warmth sinks, or air flow air ducts, stopping getting too hot and improving tools long life.
Fixed Pressure .
- 13.5 mmH ₂ O (50Hz) .
- 15.8 mmH ₂ O (60Hz) .
- Equivalent to 0.53 to 0.62 inchH two O. High fixed pressure guarantees that air flow is preserved also when travelling through filters, grills, or densely jam-packed electronic devices. This makes the fan efficient in both free-blowing and impedance-rich applications.
Noise Level .
- 48 dBA (50Hz) .
- 52 dBA (60Hz) . Regardless of its high-performance electric motor and airflow capacities, the fan generates fairly low sound levels. These appropriate for environments where audible interruption requires to be kept marginal– such as workplaces, control rooms, or residential installments.
Longevity & Longevity .
Each unit evaluates about 920 grams , indicating making use of solid materials and robust internal systems. The fan housing and impellers are developed to endure constant operation, vibrations, and temperature fluctuations. With proper installation and voltage matching, these followers provide extended life process also under 24/7 procedure.
The bearing kind additional enhances resilience. Sleeve-bearing models are maximized for upright place and light-duty cycles, whereas ball-bearing fans are liked for high-performance or temperature-sensitive settings where follower alignment differs or ambient problems are less flexible.
Circuitry & Connectivity .
The AC axial fan comes prewired with 300mm lengthy leads making use of 22 AWG cord, making it easy to get in touch with air conditioner keys or regulated switching over units. This streamlines installment for OEMs, engineers, and do it yourself users alike.
Applications .
Thanks to its balanced mix of air movement performance, small dimension, and dual-voltage compatibility, this 150x150x50mm AC axial fan is fit for a wide array of uses, consisting of:.
- Electric Control Cupboards: Avoids part getting too hot, preserving integrity.
- HVAC and Air Flow Devices: Ensures regular air movement in confined rooms.
- Industrial Devices Cooling: Shields sensitive electronic devices from thermal damage.
- Inverter and Rectifier Units: Keeps transformers, warm sinks, and capacitors cool.
- 3D Printers & CNC Machines: Maintains stable ambient temperatures.
- Server Racks & Network Closets: Protects data stability and devices performance.
- Battery Back-up Solution (UPS): Helps dissipate the warmth created throughout charging/discharging cycles.
- Refrigeration Devices or Drink Coolers: Adds extra air conditioning in portable compartments.
Mounting and Airflow Direction .
- The AC axial fan includes a clockwise turning (watched from the blade side) and presses air in the straight instructions , as shown in the mechanical drawing.
- It can be installed to press air into an enclosure (favorable stress) or extract it (unfavorable pressure), relying on air conditioning demands.
- Placing is structured thanks to the precisely drilled 4-hole style, with 122mm x 122mm screw spacing.
Why Select This AC Axial Fan? .
This AC axial fan delivers on multiple fronts:.
- Powerful Air flow: Approximately 195 CFM at peak RPM.
- Reputable Bearings: Alternative of sleeve for economic situation or sphere for endurance.
- Quiet Procedure: Low dBA ratings for noise-sensitive atmospheres.
- Resilience: Sturdy structure, top quality products, and solid design.
- Universal Compatibility: Operates at 110V or 220V with 50/60Hz support.
- Alleviate of Setup: Pre-wired, standard dimension, and mounting.
