24V DC Radial Fan Brushless Backward Curved

Harnessing Superior Air Movement: An Extensive Check Out the Backward Curved DC Radial Fan .

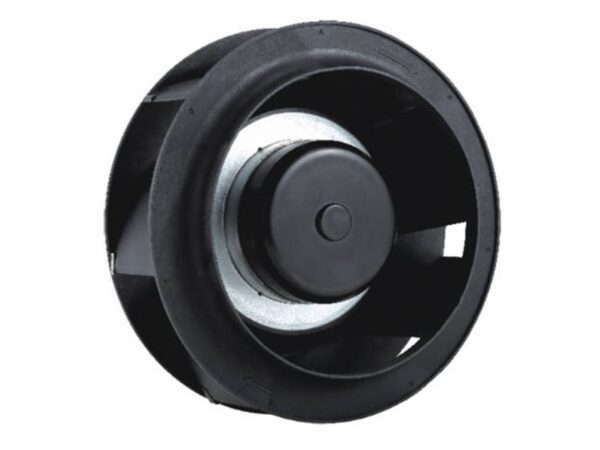

In the landscape of modern thermal administration and air flow, the need for components that are not only effective however additionally effective, quiet, and incredibly resilient has actually never been greater. Answering this phone call is the 175mm 24V Brushless Backward Curved DC radial fan, a thoroughly crafted service designed for applications where performance can not be compromised.

This DC radial fan incorporates innovative aerodynamic principles, durable products, and a high-efficiency electric motor to deliver premium air movement, high static pressure, and a remarkable functional life-span, making it a foundation component for a large array of requiring industries.

The Wind Resistant Benefit: Backwards Bent Impeller Style .

At the heart of this DC radial fan’s exceptional performance is its in reverse curved impeller. Unlike forward-curved or axial fan layouts, backward curved fans feature blades that contour far from the instructions of rotation. This specific geometry supplies numerous unique and important advantages.

To start with, it results in the highest possible fixed effectiveness of any kind of follower type. Fixed effectiveness is an action of a DC radial fan’s capacity to transform motor power right into atmospheric pressure.

This high effectiveness implies the DC radial fan is especially experienced at moving air versus significant resistance, such as via dense electronic parts, complex ductwork, thick filters, or heat exchangers. For applications like web server shelfs, telecommunications devices, and progressed HVAC systems, where getting over pressure decreases is a day-to-day obstacle, this ability is critical. The DC radial fan’s style allows it to keep impressive air movement capacity even when faced with the elevated resistance and pressure usual in these settings.

Second of all, backwards bent fans have a non-overloading power characteristic. This suggests that even if the system’s resistance adjustments and the fan operates at its optimum circulation rate (a factor of no fixed stress), the motor will certainly not attract extreme power or be at danger of overloading. This fundamental self-regulating function supplies an essential layer of protection for the electric motor, boosting its integrity and durability.

Efficiency Throughout the Range: Adaptable Three-Speed Operation .

Acknowledging that not all applications call for constant maximum result, this DC radial fan is geared up with a functional three-speed control system, all powered by a stable 24V DC input. This enables accurate tailoring of performance to satisfy the certain air conditioning or ventilation needs of the minute, optimizing both air movement and power intake.

• Low Rate (L): At its quietest setting, the DC radial fan runs at a moderate 2300 RPM. In this mode, it consumes just 18.24 watts of power while delivering a considerable air flow of 451.93 cubic meters per hour (M THREE/ hr), comparable to 266 cubic feet per min (CFM). It creates a static stress of 21.00 mm-H ₂ O with a noise level of 60 dBA. This setting is excellent for typical operating conditions where keeping a cool, stable setting with marginal acoustic disturbance is the concern.
• Medium Speed (M): For situations requiring a boosted level of cooling, the medium speed establishing gives a considerable boost in performance. Spinning at 2950 RPM, the DC radial fan moves 565.77 M SIX/ hr (333 CFM) of air and generates a fixed stress of 32.00 mm-H two O. The power intake rises to 32.40 watts, and the noise level to 67 dBA, striking a best equilibrium between hostile air conditioning and functional efficiency.
• High Speed (H): When optimal thermal dissipation is important, the high-speed setup lets loose the follower’s complete potential. At an effective 3500 RPM, it produces a huge airflow of 686.40 M FIVE/ hr (404 CFM) and an impressive fixed pressure of 49.00 mm-H two O, with the ability of getting rid of also the most difficult system resistances. This peak performance calls for 55.20 watts of power and operates at a noise level of 71 dBA, making certain mission-critical parts stay trendy under the heaviest loads.

Built to Last: Superior Construction and Materials .

The long-lasting integrity of a DC radial fan is fundamentally linked to the top quality of its construction. This DC radial fan is built from superior materials picked particularly for their durability and performance under demanding conditions.

The impeller and placing base are crafted from high-temperature-resistant (Polyamide) engineering plastics. Polyamide, often known as nylon, is renowned for its high strength, durability, exceptional wear resistance, and thermal security. This ensures the impeller blades keep their exact aerodynamic shape without buckling or breaking down, even during continual operation at raised temperatures as much as 70 ° C.

The motor itself is housed in ADC12 die-cast light weight aluminum, a material that supplies exceptional structural rigidness and functions as a premium warmth sink, efficiently dissipating thermal power created by the motor to guarantee stable, lasting procedure.

At the core of its rotational system is a high-precision round bearing arrangement. Compared to simpler sleeve bearings, ball bearings provide significantly lower friction, which translates to a longer life expectancy, higher efficiency, and the capability to run reliably at higher temperature levels.

Critically, sphere bearings permit the DC radial fan to be placed in any kind of alignment– straight, upright, or at an angle– without endangering efficiency or durability, providing maximum versatility for system integrators. This durable mix of products and engineering finishes in an expected maximum life span of 50,000 hours, appealing years of trustworthy, maintenance-free procedure.

The Giant Within: Brushless DC Motor Modern Technology .

The DC radial fan is driven by an advanced brushless DC (BLDC) motor, which is a key contributor to its efficiency and toughness. Unlike conventional cleaned electric motors, BLDC electric motors utilize electronic commutation, getting rid of the physical brushes that are prone to wear and tear. This fundamental design distinction returns numerous advantages:.

• Enhanced Efficiency: Without power lost to rubbing from brushes, BLDC electric motors are dramatically a lot more energy-efficient, transforming more electric power straight into rotational force.
• Longer Life expectancy: The absence of brush wear considerably expands the functional life of the electric motor, making it an extra trustworthy and affordable solution over time.
• Quiet Procedure: Getting rid of brush friction leads to lower functional noise and decreased resonance, a crucial factor in noise-sensitive applications.
• Accurate Control: BLDC electric motors enable smooth and specific speed control across their whole RPM range, making it possible for the versatile three-speed functionality of this DC radial fan.

Furthermore, the fan’s electrical style follows strict safety and high quality requirements. It features Course B insulation, which is ranked to endure maximum operating temperature levels of 130 ° C( 266 ° F ), offering a significant security margin and securing the electric motor windings from thermal damages. The high insulation resistance of 10MΩ at 500VDC and a stand up to voltage of 500VAC for 2 minutes emphasize its electric effectiveness and secure operation.

Versatile Applications and Seamless Combination .

With its portable 175mm framework, effective performance profile, and durable construction, this backward curved centrifugal fan is a suitable option for a wide range of applications. Its ability to create high static pressure makes it excellent for:.

• Air conditioning densely packed electronics cabinets, web server shelfs, and telecommunication enclosures.
• Ventilation systems calling for air to be moved with ductwork.
• Air purification devices and filtration systems.
• Medical tools and commercial control systems.
• Any application where consistent air movement is needed in a high-resistance environment.

The in-depth dimensional layout, full with clearly significant mounting factors (4-M4), guarantees that designers and developers can incorporate the fan right into their systems effortlessly and precision.

Finally, this 24V Brushless Backward Curved Centrifugal DC radial fan stands for the pinnacle of air-moving innovation. It uses an effective mix of high airflow, phenomenal fixed pressure, and variable-speed control, all within a durable and highly reputable package. From its aerodynamically exceptional impeller design to its long-life sphere bearings and efficient brushless motor, every part is engineered to provide uncompromising efficiency for the most demanding applications.
