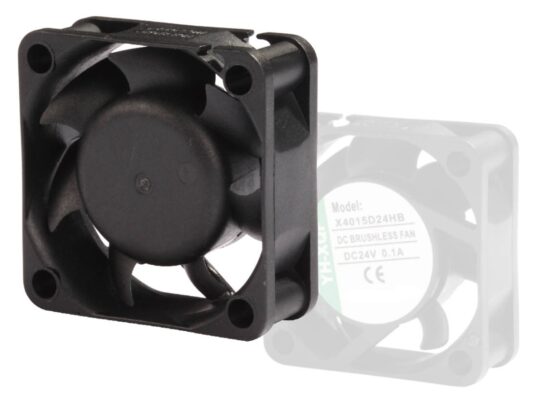

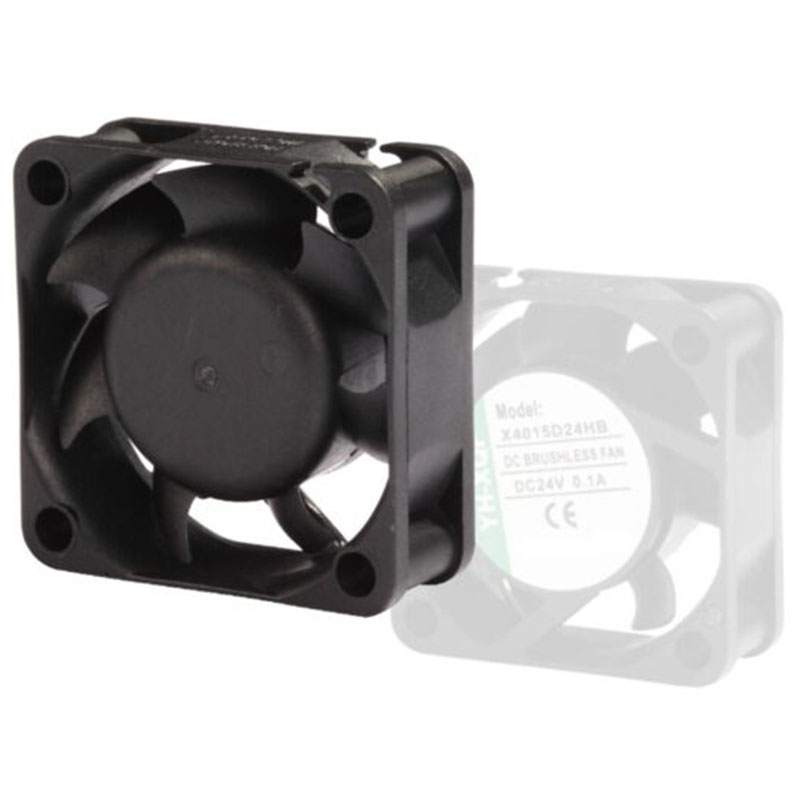

40x40x15mm Brushless DC Axial Fan 24V Ball Bearing

Presenting a Compact Powerhouse of Cooling: The 40x40x15mm 24V DC Axial fan

In the ever-evolving globe of electronic devices, efficient thermal monitoring is not just a suggestion; it is a basic demand for performance, dependability, and durability. As parts end up being a lot more effective and compact, the demand for effective and reputable air conditioning options has become vital.

Answering this crucial need is this high-performance 40x40x15mm brushless DC axial fan. Carefully engineered for applications where space is at a costs but airflow can not be jeopardized, this DC axial fan stands for a best harmony of compact layout, durable construction, and remarkable air conditioning capacity. Operating a 24V DC system and furnished with a long lasting round bearing system, it is built to offer regular, lasting solution in a vast variety of demanding settings.

Engineered for Accuracy and Combination .

The design of this axial fan begins with its exact and standardized dimensions. The square framework measures 40mm by 40mm, a widely adopted kind element that ensures compatibility with plenty of devices, from consumer electronics to industrial equipment. Its slim 15mm profile enables installation in low-profile units and tightly packed digital settings up where larger, bulkier fans would be impractical.

The mounting system is created for universal and uncomplicated combination. Four installing openings are tactically positioned with a center-to-center spacing of 32.0 mm, a standard arrangement for 40mm fans. This enables system developers and DIY lovers alike to conveniently place the DC axial fan onto heatsinks, framework panels, and custom brackets. The generous 300mm (around 11.8 inches) lead cables supply ample size to reach power ports on a motherboard or power circulation board, approving flexibility in cord routing and management without the prompt demand for extensions. the DC axial fan is terminated with a conventional two-pin connector, making sure a safe and reliable electric connection.

At its core, this is an axial fan, a design renowned for its performance in moving high volumes of air. As indicated by the airflow diagram, air is attracted and tired alongside the DC axial fan blade’s axis of turning. This straight-through airflow course is excellent for general-purpose cooling, such as ventilating an electronics room, moving air throughout a bank of components, or providing direct cooling to a low-to-medium thickness heatsink.

Uncompromising Performance Characteristics .

While its size is compact, its performance is anything yet. this DC axial fan is engineered to deliver an effective cooling strike. Running at its ranked voltage of 24V DC, the electric motor rotates the seven-bladed impeller at an awesome rate of 10,000 RPM. This high rotational speed is the engine behind its outstanding airflow and fixed pressure ratings.

• Optimum Air flow: the DC axial fan can relocating a considerable 13.8 Cubic Feet per Min (CFM) of air. This metric represents the sheer volume of air it can displace in an open setting, making it highly efficient at purging hot, stationary air out of a system and replacing it with cooler, ambient air.
• Optimum Static Stress: In numerous real-world applications, air movement is restricted by barriers like heatsink fins, dirt filters, and dense part formats. This is where fixed pressure ends up being critical. this DC axial fan produces an optimum static stress of 12.30 mmH ₂ O , which symbolizes its strong ability to press air through these impediments and make certain that cooling down air movement reaches the important components that require it most.

The connection between airflow and fixed stress is detailed in the offered P-Q (Pressure-Airflow) curve. This performance graph highlights that the DC axial fan offers a well balanced outcome, making it functional for either high-airflow or high-impedance scenarios. This information is important for engineers seeking to specifically match the DC axial fan’s capacities to their system’s unique air conditioning needs. Regardless of this high level of efficiency, the DC axial fan is incredibly effective, attracting only 0.10 A of present for an input power of just 2.40 Watts.

Developed for Longevity and a Long Operational Life .

Dependability is the cornerstone of this DC axial fan’s style. It begins with the selection of an exceptional dual sphere bearing system . Contrasted to more typical and more economical sleeve bearings, ball bearings offer considerable benefits that translate directly to a longer life-span and even more constant efficiency. They are much less at risk to use, can operate at higher temperature levels without lubricating substance deterioration, and are not depending on installing positioning. This means the DC axial fan can be mounted horizontally, vertically, or at any type of angle without compromising its durability or performance, a crucial function for personalized and unconventional setups.

the DC axial fan’s building products are chosen for safety and durability. Both the structure and the impeller are made from a high-quality thermal plastic that meets the UL 94V-0 flammability typical . This is the highest rating for plastics, showing that the material will certainly self-extinguish within 10 secs after a flame is gotten rid of and will certainly not create flaming drips. This function provides necessary assurance, reducing fire danger within encased electronic devices.

Further enhancing its dependability are a number of incorporated electric motor security features:.

• Impedance Protection: This avoids the motor from stressing out if the blades end up being obstructed by a cable or other foreign things. The electric motor’s internal insusceptibility restricts the present to a risk-free level till the blockage is removed.
• Reverse Polarity Protection: This critical safety and security circuit guards against unintended miswiring. If the favorable and adverse leads are connected incorrectly, the DC axial fan will not be damaged, securing your investment.
• Car Restart: the DC axial fan is furnished with an auto-restart feature. If the blades is secured, the DC axial fan will automatically reduce the present and then effort to restart periodically, guaranteeing it resumes procedure as soon as the obstruction is gotten rid of.

the DC axial fan is additionally built to endure a large range of ecological problems. It is ranked for operation in temperatures from -10 ° C to 70 ° C and can be safely stored in temperature levels varying from an icy -40 ° C to a hot 80 ° C, a testament to its robust construct high quality.

The Ideal Cooling Option for a Multitude of Applications .

With its combination of a small footprint, powerful air flow, high static stress, and industrial-grade integrity, this 40x40x15mm axial fan is a suitable choice for a comprehensive list of applications, including:.

• 3D Printers: Perfect for cooling down hotends, controller boards, or stepper motors.
• Networking and IT: Cooling switches, routers, and little form-factor servers.
• Embedded Systems: Offering energetic air conditioning for single-board computers and various other high-performance processors.
• LED Lights: Dissipating heat from high-intensity LED motorists and modules.
• DIY Electronics: A flexible fan for any type of task needing trustworthy and effective air conditioning.

In recap, this 24V brushless DC axial fan is more than simply a part; it’s an assurance of stability. It provides the performance needed to protect delicate electronics, the reliability required by continual operation, and the compact type factor called for by modern style. When your task needs efficient, resilient cooling in a small plan, this DC axial fan is the clear-cut selection.
