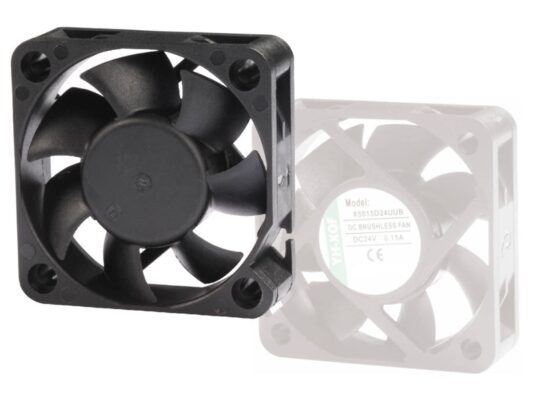

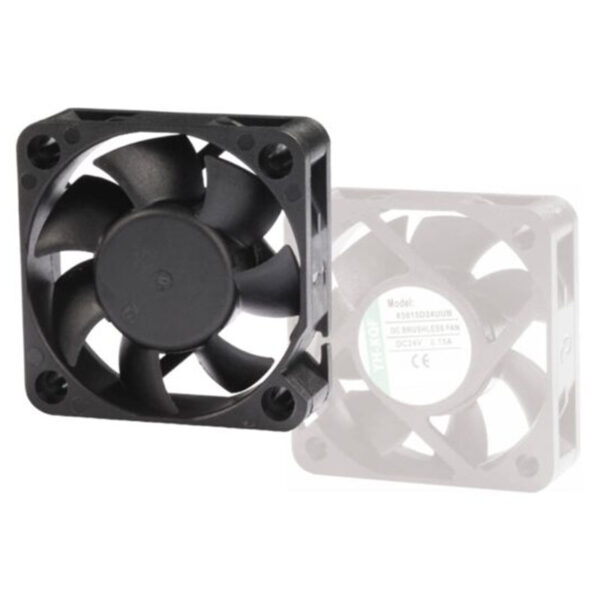

50x50x15mm Brushless DC Axial Fan Ball Bearing

An Extensive Air Conditioning Solution: The 50x50x15mm Brushless DC Axial fan

In the ever-evolving landscape of electronic devices, where components come to be extra effective and portable with each generation, efficient thermal administration is no more a luxury– it’s a basic requirement. Overheating can cause performance throttling, lowered component life expectancy, and disastrous system failure. Resolving this essential requirement is the 50x50x15mm Brushless DC Axial Fan, a masterclass in cooling down engineering that supplies an effective, reliable, and intelligent air flow solution in an extremely portable kind aspect. Developed for adaptability and longevity, this DC axial fan is the ideal option for a vast array of applications, from high-performance computer and 3D printing to industrial automation and customized digital jobs.

Compact Design, Uncompromised Efficiency .

The first thing one notices concerning this DC axial fan is its standard 50x50mm frame and slim 15mm profile. This small footprint makes it an outstanding remedy for space-constrained atmospheres where every millimeter counts. It can be effortlessly integrated right into tiny kind factor (SFF) PCs, blade servers, network buttons, DVRs, and embedded systems without needing a major redesign of the chassis. The placing holes are positioned at a common 40x40mm spacing, ensuring drop-in compatibility with lots of existing products.

Regardless of its tiny dimension, this DC axial fan is a performance heavyweight. Depending upon the details version picked, it can producing excellent air movement rates of as much as 19.34 Cubic Feet per Minute (CFM) . This high quantity of air flow is necessary for promptly eliminating heat from essential elements like CPUs, GPUs, and power regulatory authorities. Moreover, it flaunts an optimum fixed stress of approximately 10.54 mmH2O . This high static stress is essential for applications where air have to be forced via restrictive courses, such as thick heatsinks, dust filters, or slim air flow channels. The capacity to conquer resistance makes certain that great air reaches the elements that require it most, also in securely loaded rooms.

The connection between airflow and fixed pressure is clearly highlighted in the provided P-Q contour. This graph is an indispensable device for engineers, demonstrating the DC axial fan’s performance features at different operating rates (RPM). It shows that as the resistance (static stress) in a system increases, the resulting air flow (CFM) will certainly reduce. By recognizing their system’s particular impedance, developers can utilize this curve to pick the excellent fan design that will operate at the optimum point for their requirements, balancing cooling effectiveness with acoustic performance.

Engineered for Longevity and Dependability .

A cooling down fan is often one of the few mechanical components in an electronic tool, making its integrity extremely important. this DC axial fan is built to last, beginning with its premium double ball bearing system. Contrasted to traditional sleeve bearings, round bearings use a substantially longer operational life-span, exceptional efficiency at higher temperature levels, and the flexibility to be placed in any kind of positioning– straight, vertical, or upside-down– without influencing durability or efficiency. This makes them the conclusive option for important applications and tools that have to operate 24/7.

the DC axial fan’s physical building is similarly robust. Both the frame and the impeller are crafted from Thermal Plastic that meets the UL 94V-0 flammability conventional . This is a critical safety attribute, certifying that the material is self-extinguishing and will not circulate a fire in case of an extreme electronic failure. This ranking is commonly a need for parts made use of in business and commercial tools.

To secure its inner electronic devices, the DC axial fan electric motor includes 2 essential security mechanisms. Resistance Protection makes sure that the electric motor will certainly not overheat and burn out if the DC axial fan blades are physically blocked or delayed. Opposite Polarity Protection protects against damage to the DC axial fan’s circuitry if the power cords are unintentionally connected backward during installation. These attributes contribute to a resistant and fault-tolerant style, offering satisfaction to system integrators and end-users alike.

Ultimate Adaptability with Numerous Voltages and Advanced Features .

Recognizing that various applications have different power needs, this DC axial fan is offered in 3 standard DC voltages: 5V, 12V, and 24V .

• 5V models are excellent for USB-powered gadgets, single-board computers like the Raspberry Masterpiece, and various other low-power electronic devices.
• 12V designs are the requirement for computer cooling, customer electronics, and a wide range of general-purpose applications.
• 24V designs are customized for more requiring equipment, consisting of 3D printers, industrial control cabinets, networking hardware, and telecommunications systems.

Past voltage choices, the DC axial fan can be furnished with a collection of advanced features that enable smart system surveillance and control:.

• Automobile Restart: A conventional feature that boosts reliability. If the DC axial fan’s turning is temporarily stopped by an external object, the motor will instantly attempt to restart as quickly as the obstruction is eliminated, guaranteeing that cooling is recovered without hand-operated intervention.
• PWM (Pulse Size Inflection) Control: For applications requiring vibrant performance, the PWM feature is important. It includes a 4th wire that approves a control signal, enabling a motherboard or fan controller to precisely change the DC axial fan’s speed. This makes it possible for the system to run silently at idle and ramp up cooling down power flawlessly under hefty tons, enhancing for both acoustics and thermal performance.
• FG (Frequency Generator) Output: Likewise known as a tachometer signal, the FG result offers real-time comments on the DC axial fan’s rotational rate. This is critical for mission-critical systems that require to check fan health. If the speed drops below a particular threshold, the system can inform the individual to an upcoming failure before overheating happens.
• RD (Turning Detector) Alarm: The RD signal supplies a simpler, binary form of fan monitoring. It sends out a “high” signal when the DC axial fan is running and a “low” signal when it has stopped. This alarm system can cause a system shutdown or an alert light, providing a sound in the event of a fan failure.
• IP Ranking: For systems deployed in rough or industrial environments, the DC axial fan can be made with an official Access Security (IP) ranking, giving licensed protection versus the intrusion of dust and wetness.

To conclude, the 50x50x15mm Brushless DC Axial fan is even more than just a component; it is an extensive, high-performance air conditioning system. By incorporating a compact, industry-standard type element with powerful airflow, remarkable static pressure, and durable ball-bearing building, it satisfies the core needs of any thermal administration difficulty. Its schedule in numerous voltages and with an array of advanced control and tracking attributes makes it among the most versatile and smart cooling remedies on the market, flawlessly fit to empower the next generation of electronic devices.
