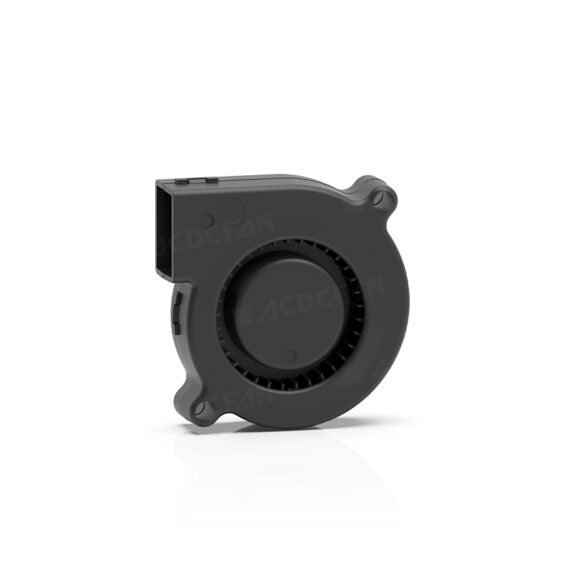

Brushless DC Radial Fan 50x50x15mm Blower Cooler

In-Depth Look: The 50x50x15mm Brushless DC Radial Fan

In the ever-evolving landscape of contemporary electronics, efficient thermal monitoring is not just a function– it’s an essential requirement. As elements end up being more effective and layouts end up being a lot more compact, the obstacle of dissipating warm efficiently is vital to guaranteeing efficiency, dependability, and longevity. The 50x50x15mm Brushless DC Radial fan is a masterclass in portable, high-performance cooling, engineered to fulfill these demanding needs. This functional blower is created to supply targeted air flow and high static stress, making it an optimal solution for a substantial selection of applications, from cutting-edge customer electronic devices to robust commercial equipment.

Style and Building And Construction: Built for Toughness

In the beginning glimpse, the DC radial fan provides a small and robust type factor. Gauging simply 50mm by 50mm with a slim 15mm account, it is especially created for assimilation right into space-constrained environments where typical axial fans would be unwise or inadequate. Its lightweight, a mere 26.7 grams, ensures it includes very little mass to any assembly, a crucial consideration for portable devices and weight-sensitive applications.

Both the DC radial fan framework and the complex impeller blades are created from Thermoplastic PBT (Polybutylene Terephthalate) with a UL 94V-0 rating. This material choice is substantial for numerous reasons. PBT is understood for its remarkable mechanical strength, dimensional security, and resistance to a wide range of chemicals and solvents. The UL 94V-0 rating is the highest category for plastic flammability, suggesting that the material will self-extinguish within 10 seconds after the flame source is removed. This inherent security feature is essential for electronics that run continually or deal with significant power tons, supplying peace of mind and guaranteeing conformity with strict safety standards.

The DC radial fan’s design is that of a radial or “blower” design fan. Unlike axial fans that relocate air alongside the axis of turning, a blower attracts air in through the central inlet and removes it at a 90-degree angle via a concentrated outlet. This style is inherently exceptional for producing high static pressure, which is the force needed to relocate air via limiting rooms like heatsink fins, dense part designs, and filteringed system enclosures.

Performance and Versatility: Customized to Your Requirements

The true strength of this 50mm DC radial fan lies in its outstanding versatility and efficiency, which can be tailored through a variety of available arrangements.

Voltage Options: The fan is readily available in three basic DC voltages to seamlessly incorporate right into different electrical systems:

• 5V DC: Perfect for low-power applications, including USB-powered devices, single-board computers (like Raspberry Specialty or Arduino projects), portable gadgets, and various other small electronic devices. These models are very energy-efficient, with power consumption as reduced as 0.5 to 0.8 watts.
• 12V DC: This is one of the most common voltage for computer cooling, consumer electronics, networking equipment like routers and buttons, and automobile applications. The 12V versions use a balanced portfolio of rate and power, making them a best option for a majority of tasks.
• 24V DC: Primarily made use of in commercial applications, automation systems, professional-grade 3D printers, and bigger digital assemblies that utilize a 24V power requirement. These versions typically give the highest possible efficiency degrees.

Air Movement and Fixed Pressure: The DC radial fan is supplied in numerous efficiency tiers, each defined by its rotational speed (RPM).

• Low-Speed (approx. 4000 RPM): This rate equilibriums peaceful procedure with effective cooling, delivering up to 2.74 CFM of air movement and 2.11 mmH2O of static pressure. It is an outstanding selection for noise-sensitive settings like home libraries or workplace equipment.
• Medium-Speed (approx. 5000 RPM): Providing a significant increase in efficiency, this model creates approximately 3.43 CFM and a strong fixed stress of 3.29 mmH2O. It represents a superb middle ground for applications requiring more durable cooling without extreme sound.
• High-Speed (approx. 6500 RPM): This is the high-performance variant, crafted for the most demanding thermal challenges. It produces an effective 4.45 CFM of airflow and an impressive maximum fixed stress of 5.56 mmH2O. This design is suitable for cooling high-power processors, thick server components, or for usage as a part-cooling fan in high-speed 3D printing.

The air performance contour highlights the timeless trade-off for blowers: as the called for static stress (resistance) raises, the resulting air flow declines. However, this DC radial fan preserves effective stress even as airflow is tightened, confirming its suitability for high-impedance systems.

Integrity and Longevity: Engineered to Last

A cooling DC radial fan is usually a critical element, and its failure can bring about system-wide failure. This blower is built with reliability at its core, using 2 distinct birthing systems to match application needs:

• Sleeve Bearing: This is an affordable choice that supplies really peaceful procedure, specifically at reduced speeds. Sleeve bearings are best matched for secure, straight mounting alignments. They offer a reliable service life of 30,000 hours at a constant operating temperature of 40 ° C, making them a cost-effective option for lots of consumer electronic devices.
• Ball Bearing: For applications requiring the utmost in long life and resilience, the dual sphere bearing system is the premium selection. Ball bearings use a substantially longer service life of 70,000 hours at 40 ° C– that’s nearly eight years of 24/7 procedure. They are less sensitive to installing orientation and can stand up to a much broader operating temperature level range, from an icy -30 ° C to a hot 70 ° C. This makes them the definitive selection for industrial, mission-critical, or high-temperature environments.

Advanced Functions for Smart Solutions

Beyond the core specifications, this DC radial fan can be equipped with a collection of innovative functions for enhanced defense, monitoring, and control:

• Motor Security: Integrated safeguards can consist of Reverse Polarity Security, Over Voltage Defense (OVP), and a Soft-Start (SS) function that gradually increases the follower speed to decrease electric inrush existing.
• Signal Result: For systems that call for energetic surveillance, the fan can be set up with a Frequency Generator (FG) signal that outputs a pulse train representing the follower’s speed, or a Rotation Detector (RD) alarm system that signals if the fan delays or stops working.
• Speed Control: The most powerful attribute for contemporary dynamic systems is Pulse Width Modulation (PWM) rate control. A PWM-equipped follower permits a microcontroller to exactly adjust the fan’s RPM in real-time. This allows the creation of “wise” air conditioning systems that can run quietly at idle and ramp up to full power just when needed, maximizing the balance between performance, noise, and power consumption.

Applications

The unique combination of portable dimension, high static pressure, and customizable functions makes this 50x50x15mm DC radial fan appropriate for an unbelievably varied series of applications, including:

• 3D Printers: As a high-performance part-cooling fan to quickly solidify extruded filament for sharper details and far better overhangs.
• Single-Board Computers & Embedded Equipments: For proactively cooling cpus aboard like the Raspberry Masterpiece, Jetson Nano, and various other SBCs inside compact instances.
• Networking and A/V Tools: Cooling down routers, network buttons, DVRs, and set-top boxes loaded right into limited rooms.
• Portable and Handheld Devices: Giving vital cooling for medical tools, diagnostic devices, and other high-performance handhelds.
• LED Lighting: Dissipating heat from high-intensity LED drivers and components to preserve brightness and expand lifespan.
• DIY Electronic devices: A perfect cooling service for hobbyists and manufacturers designing their very own personalized electronic devices projects.

Finally, the 50x50x15mm Brushless DC Radial Fan is much more than simply a fan; it is an innovative, functional, and highly trustworthy thermal management solution. Its durable building and construction, powerful efficiency, and considerable customization alternatives make it an exemplary selection for designers, designers, and hobbyists looking for to solve intricate cooling challenges in the most portable of rooms.
