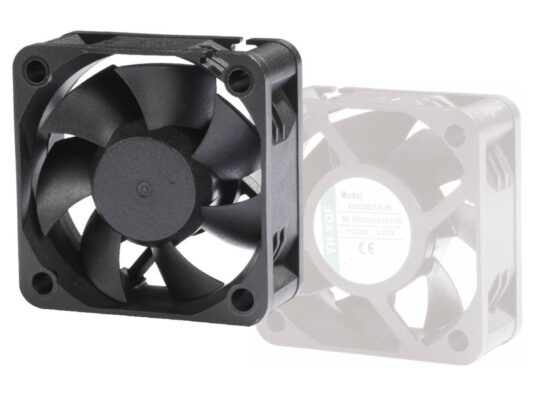

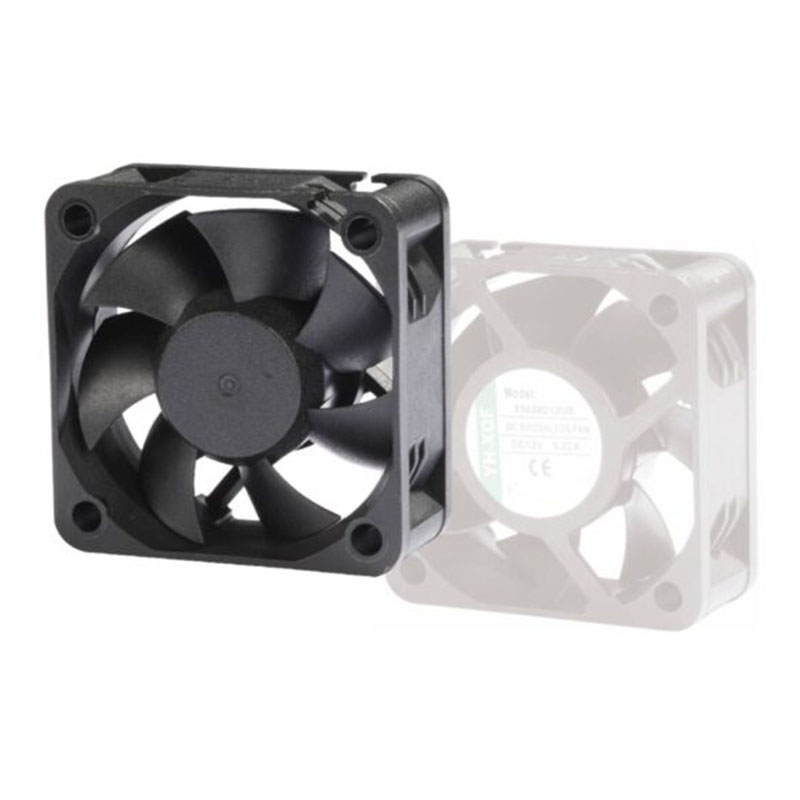

50x50x20mm DC Axial Fan Cooling 12V Ball Bearing

The introduction of the 50x50x20mm DC Axial Fan

In the detailed world of modern electronics, where processing power and part thickness are constantly growing, efficient thermal management stands as a foundation of system dependability and durability. The warmth produced by hardworking elements can be a silent saboteur, degrading performance, reducing operational life-spans, and posing a risk of full system failing.

To combat this ever-present thermal difficulty, designers and system contractors call for cooling options that are not just powerful however additionally small, efficient, and extremely reliable. The 50x50x20mm DC Axial Fan, crafted for 12V procedure and geared up with a durable sphere bearing system, is a premier remedy developed to fulfill and exceed these crucial needs.

Robust Style and Superior Building And Construction .

In the beginning glance, this fan is a version of portable and effective style. Its structure dimensions of 50mm by 50mm, with a depth of 20mm, make it an ideal selection for a vast variety of applications, particularly where room is at a premium. the DC axial fan features a common 4-hole mounting pattern with a 40mm by 40mm spacing, making sure straightforward combination into existing layouts, be it on a CPU heatsink, within a small electronic devices unit, or as part of a bigger ventilation system.

The construction of this fan talks quantities regarding its designated sturdiness and safety. Both the structure and the seven-blade impeller are crafted from state-of-the-art Thermoplastic PBT (Polybutylene terephthalate). This material is picked for its excellent mechanical strength, rigidness, and resistance to warm and chemicals. Critically, it brings a UL94V-0 flammability score. This is the greatest score for plastics, suggesting that the material will certainly self-extinguish within 10 seconds after the fire source is eliminated, offering an essential layer of safety for any digital device.

The Round Bearing Benefit: Durability and Dependability .

At the very core of this fan’s style is its dual sphere bearing system, a function that establishes it besides fans using conventional sleeve bearings. The sphere bearing system is engineered for a substantially longer functional life, efficient in standing up to higher operating temperature levels without deterioration in performance.

This is attained with decreased rubbing and boosted stability of the blades. The result is a fan that is flawlessly fit for continuous, 24/7 operation in demanding atmospheres such as servers, networking tools, and industrial control systems. The fundamental stability of the round bearing layout also lessens wobble and resonance, contributing to reduced overall acoustic noise and reducing mechanical stress and anxiety on the DC axial fan itself and its surrounding elements, guaranteeing regular performance over countless hours.

Optimized Electrical and Efficiency Characteristics .

This fan is created to operate on a typical 12V DC power source, making it suitable with a vast array of digital systems. The specified operating voltage range for the 12V designs, from 7.0 to 13.8 volts, offers excellent operational adaptability and guarantees steady efficiency even when the power supply experiences minor fluctuations. The line of product includes numerous variations, each tailored for different performance needs.

As an example, lower-speed versions prioritize silent procedure, drawing minimal existing for energy-efficient air conditioning. Alternatively, high-speed variations are developed for maximum cooling possibility, moving a considerable volume of air to cool high-power parts.

The performance of an axial fan is defined by its capacity to relocate air (airflow) and its capability to press that air versus resistance (static pressure). This 50mm fan masters both locations. Relying on the specific 12V design, it can attain rotational speeds from a silent 4500 RPM up to an awesome 8000 RPM. This equates into excellent airflow numbers, reaching up to 19.34 CFM (Cubic Feet per Minute). Such airflow is crucial for efficiently evacuating hot air from an enclosure and presenting cool, ambient air to vital parts.

All at once, the DC axial fan can generating considerable static stress, with high-performance models reaching up to 0.42 inchH2O (or 10.54 mmH2O). This high static stress is vital in applications where airflow is limited by barriers such as thick heatsink fins, dirt filters, or firmly packed interior parts. the DC axial fan has the force needed to conquer this resistance and ensure that cooling air reaches its desired target.

Recognizing the P&Q Efficiency Curve .

The consisted of P&Q (Stress vs. Airflow) contour is a crucial design device that envisions the DC axial fan’s performance qualities.

It highlights the inverted relationship between fixed pressure and airflow. At zero air flow (a totally blocked outlet), the DC axial fan generates its optimum fixed pressure. On the other hand, with zero resistance, it achieves its maximum air movement. A system developer can compute the insusceptibility of their details system and story it on this curve to discover the precise operating point of the DC axial fan. This guarantees that the picked fan is an ideal match for the application’s demands, delivering optimum and predictable air conditioning.

Advanced Features for Modern Solutions .

Past its core mechanical and electrical performance, this fan integrates features important for modern-day, smart systems. Requirement motor protection consists of both impedance defense and reverse polarity protection. Impedance protection prevents the electric motor from stressing out if the blades are delayed or blocked, while reverse polarity defense safeguards the DC axial fan’s electronics from damages if power is attached inaccurately.

In addition, this fan platform supports a collection of innovative control and monitoring functions, usually designated by icons or defined as choices:.

• Automobile Restart: An important reliability feature that makes certain if the rotor is ever before locked, the electric motor will immediately attempt to restart, bring back cooling operation without needing hand-operated treatment.
• Frequency Generator (FG) Signal: This is a tachometer result cable that supplies a pulse signal corresponding to the DC axial fan’s rotational speed. A system’s motherboard or controller can monitor this signal to validate the DC axial fan is operating appropriately and at the anticipated rate.
• Turning Detector (RD) Signal: This is an alarm system feature. If the DC axial fan delays or stops revolving, this signal will certainly transform its state (e.g., from high to low), instantly notifying the system to a cooling failure so that it can take safety steps, such as shutting down to stop getting too hot.
• PWM (Pulse Width Modulation) Control: Lots of modern-day systems demand dynamic cooling. The 4-wire PWM variation of this fan allows for precise rate control. By sending a PWM signal to the 4th cord, a system can change the DC axial fan’s rate in real-time based on temperature sensing unit readings. This produces an extremely reliable cooling system that runs strongly under heavy tons and drops to a near-silent state when the system is idle, saving energy and lessening sound.

To conclude, the 50x50x20mm 12V DC Axial Fan is even more than just an easy cooling element. It is a very engineered, feature-rich remedy for sophisticated thermal management. Its robust and safe building and construction, long-life round bearing system, and remarkable balance of high air movement and fixed stress make it a functional selection for countless applications– from cooling high-performance PCs and 3D printers to making sure the reliability of important networking and commercial equipment.

With sophisticated protection and control attributes, it gives not simply cooling down, yet smart and dependable thermal guideline, safeguarding the efficiency and long life of the beneficial electronic devices it is developed to safeguard.
