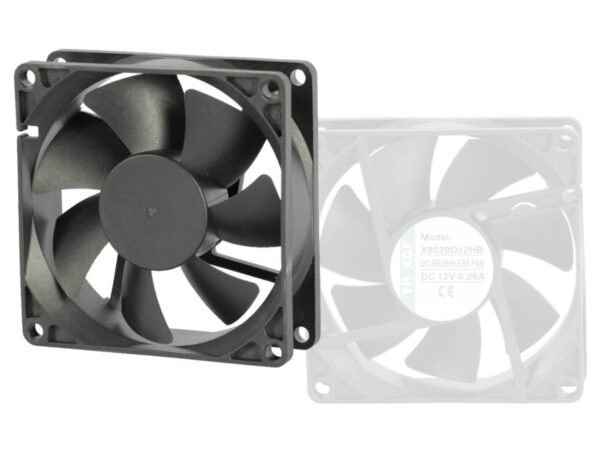

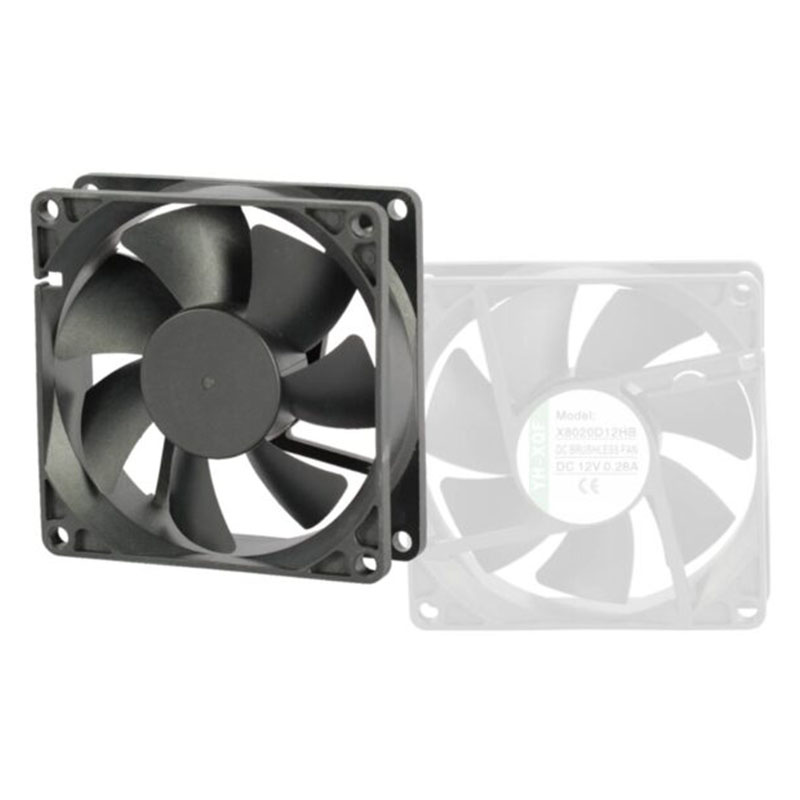

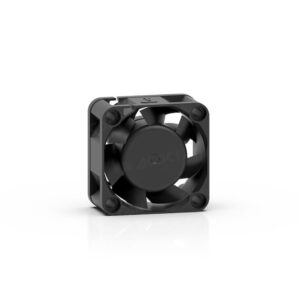

80x80x20mm DC Axial Fan Brushless High Speed

High-Performance Air Conditioning Service: The 80x80x20mm DC Axial Fan

On the planet of contemporary electronics and industrial machinery, reliable thermal administration is not simply a referral; it is a crucial need. As elements come to be more powerful and compact, the heat they produce can weaken efficiency, decrease life expectancy, and result in catastrophic failures. Addressing this obstacle head-on is the 80x80x20mm brushless DC axial fan, a high-speed cooling remedy engineered for performance, integrity, and accuracy control in a wide variety of requiring applications.

Style and Construction

This DC axial fan is constructed around a typical 80x80mm framework with a slim 20mm profile, making it a suitable choice for applications where space goes to a premium. The specific measurements, as described in the technological drawings, are 80.0 ( ± 0.5 )mm x 80.0 ( ± 0.5 )mm x 20.0 ( ± 0.5) mm. It includes a standard installing opening pattern of 71.5 x 71.5 mm, guaranteeing very easy integration right into existing layouts and systems.

The frame and impeller are constructed from a durable thermoplastic product that satisfies the UL 94V-0 flammability requirement. This is a substantial safety feature, as UL 94V-0 is among the highest possible rankings for plastic material flammability. It implies that in an upright shed examination, the material must self-extinguish within 10 seconds after the flame source is removed and create no flaming drips, lessening the danger of fire breeding within an unit.

Uncompromising Performance: Air Movement and Fixed Stress

The primary function of any DC axial fan is to relocate air, and this version excels in that function. As an DC axial fan, it draws air in and removes it along a course parallel to the shaft’s axis, making it very reliable for cooling parts and aerating units.

The efficiency features are clearly illustrated in the P&Q (Stress vs. Air movement) curve, which showcases the DC aixal fan’s capabilities at various rotational speeds. The line of product includes a number of variations to match particular air conditioning needs:

• High-Speed (5000 RPM): The top-tier version delivers a remarkable maximum airflow of 51.88 Cubic Feet per Min (CFM) (1.47 m ³/ minutes). It likewise produces an effective maximum fixed stress of 6.61 mmH two O, making it extremely appropriate for high-impedance applications, such as densely stuffed web server shelfs, heatsinks with great fins, or enclosures with limiting filters where high pressure is needed to force air via.
• Medium-Speed (4000 RPM): Offering a balanced account, this version creates a substantial optimum airflow of 41.5 CFM (1.18 m FOUR/ min )and a static stress of 5.29 mmH two O. It strikes an excellent compromise in between strong cooling efficiency and even more moderate acoustic levels, appropriate for a broad variety of electronic devices and networking equipment.
• Low-Speed (3500 RPM): For settings where sound is a primary concern, this design offers reliable air conditioning with an optimum air movement of 38.31 CFM (1.03 m FIVE/ minutes) and a static stress of 4.63 mmH ₂ O, all while operating at a considerably lower sound level of simply 32 dBA.

Reliability and Longevity by Design

This DC axial fan is engineered for lasting, constant procedure in tough atmospheres.

Double Sphere Bearing System: At its core is a high-quality double sphere bearing system. Contrasted to usual sleeve bearings, ball bearings offer exceptional longevity, frequently rated for 50,000 hours or even more. They utilize rolling rubbing, which creates less warm and wear than the sliding friction of sleeve bearings. This makes them much more trustworthy in time and permits the DC axial fan to be mounted in any alignment (straight, upright, or at an angle) without impacting its life-span or performance.

Robust Motor Security: The brushless DC electric motor incorporates a number of layers of security to guarantee its long life. It is both Insusceptibility Protected and Reverse Polarity Secured .

• Insusceptibility Protection is a vital security function that protects against the electric motor from stressing out if the rotor ends up being locked or delayed. In a delay condition, the electric motor’s windings are made with a high sufficient insusceptibility to restrict the present draw, maintaining the temperature level from rising to dangerous levels.
• Reverse Polarity Security safeguards the fan’s delicate electronics from damage if the power leads are mistakenly connected improperly. This protects against prompt failure throughout installment or upkeep.

Wide Operating Array: The DC axial fan is rated for an operating temperature series of -10 ° C to +70 ° C and a storage space temperature level series of -40 ° C to 80 ° C, showing its viability for use in both regulated and extreme thermal environments.

Advanced Control with PWM

Among the standout functions of this fan is its Pulse Width Inflection (PWM) speed control capacity. PWM permits precise, dynamic control over the fan’s speed by sending out a digital signal to a dedicated 4th cord. Instead of differing the voltage, PWM changes the “responsibility cycle” of a consistent voltage signal, efficiently transforming the electric motor on and off at a very high frequency.

This approach provides a number of advantages:

• Accuracy and Performance: It enables a system’s controller or motherboard to adjust the fan speed in real-time based upon thermal tons. This indicates the fan can run quietly at reduced speeds when the system is still and increase to full power only when required, optimizing both cooling down effectiveness and energy intake.
• Improved Torque: Unlike simple voltage control, PWM delivers the complete electric motor voltage basically pulses, providing better torque even at reduced speeds.
• System-Wide Control: Multiple PWM fans can be managed in unison from a solitary signal, streamlining system design.

The DC axial fan is offered in numerous ranked voltages– 5V, 12V, and 24V– with large operating voltage varieties, guaranteeing compatibility with a large range of source of power and systems.

Applications

The combination of its small size, powerful performance, robust building, and advanced control functions makes this 80x80x20mm DC axial fan an exceptionally flexible cooling solution for countless applications, consisting of:

• IT and Networking: Cooling high-density servers, network switches, routers, and storage varieties.
• Computer and Enthusiast Builds: High-performance CPU colders, chassis ventilation, and small form element (SFF) PC builds.
• Industrial Automation: Cooling control cupboards, PLCs, motor drives, and other sensitive industrial electronic devices.
• 3D Printing and Production: Aerating print rooms and cooling hotends and electronics on 3D printers and various other small-scale manufacturing equipment.
• Audio/Video and Consumer Electronics: Cooling professional amplifiers, receivers, and other high-power customer tools.

In recap, this high-speed brushless DC axial fan is a premium thermal administration tool. It supplies extraordinary airflow and fixed pressure in a small kind variable, built with premium elements like dual sphere bearings and a UL-rated frame for optimum reliability and security. With the included intelligence of PWM rate control, it offers a dynamic and effective air conditioning solution for any kind of project that requires the very best in efficiency and resilience.
