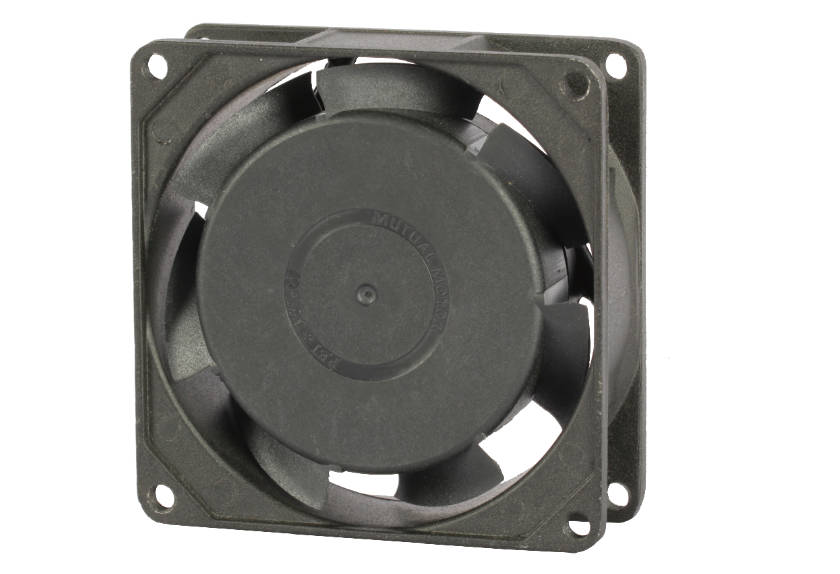

80 × 80 × 25mm AC Axial Fan–High-Speed Efficiency for Applications .

Intro.

The 80 × 80 × 25mm AC axial fan represents an optimum equilibrium of portable design, high-performance air conditioning, and functional power compatibility for commercial and industrial applications. Engineered to deliver robust airflow in space-constrained settings, this AC axial fan series operates throughout 110-220V cooling power inputs while maintaining outstanding dependability with both sphere and sleeve bearing arrangements.

With a maximum speed of 2700 RPM, it produces approximately 23 CFM (0.65 m FOUR/ min )air flow– making it ideal for cooling down electric enclosures, telecommunications equipment, automation systems, and other heat-sensitive gadgets where efficient thermal management is crucial.

Accuracy Engineering & Compact Design .

The AC axial fan’s 80 × 80 × 25mm type aspect makes sure smooth assimilation right into limited rooms without endangering efficiency. Key dimensional functions consist of:.

• Framework & Mounting: Square framework with standard 71.5 mm ( ± 0.5 mm )mounting hole spacing (center-to-center), compatible with M3 or M4 screws for safe and secure installment.
• Air movement Optimization: Blade geometry and motor positioning are calibrated to make the most of air flow (as much as 23 CFM) while reducing disturbance. The 25.5 mm center size makes sure reliable air channeling.
• Clearance Requirements: Designed for a minimal 320mm ( ± 20mm) clearance behind the follower to stop air movement obstruction, essential for keeping efficiency in encased systems.

Universal Voltage Compatibility & Electric Performance .

This AC axial fan sustains dual-voltage procedure (110V and 220V A/c at 50/60Hz), eliminating the requirement for region-specific versions. Secret electric specifications:.

• High-Speed Efficiency: Supplies 2300– 2700 RPM under 110V or 220V input, with existing draw as reduced as 0.05 A (220V) and 0.10 A (110V).
• Energy Effectiveness: Eats just 15– 17W at peak lots, reducing operational costs for continuous-use applications like web server racks or industrial control panels.
• Regularity Versatility: Secure procedure throughout 50Hz and 60Hz power grids makes certain worldwide deployability.

High-Performance Cooling Capabilities .

Engineered for requiring thermal administration, the AC axial fan excels in both air flow and static pressure:.

• Airflow: 19– 23 CFM (0.54– 0.65 m FIVE/ min) at high speed, adequate to cool down heat-generating components like power supplies, transformers, or LED selections.

• Fixed Pressure: 2.9– 4.0 mmH ₂ O (0.11– 0.16 inchH ₂ O), allowing effective cooling even in limited settings with filters or thick part formats.
• Speed Irregularity: RPM changes dynamically to voltage changes, keeping constant performance across input variations.

Birthing Choices for Diverse Usage Cases .

Readily available in both sphere and sleeve bearing configurations to match application needs:.

• Round Bearing (High Longevity): .
• Ideal for 24/7 operation or high-temperature atmospheres (e.g., industrial equipment).
• Longer life-span (50,000+ hours L10) and better resistance to mechanical anxiety.
• Sleeve Bearing (Affordable): .
• Ideal for lighter-duty applications with intermittent use (e.g., business devices).
• Lower noise levels (30– 35 dBA in medium-speed variations).

Acoustic Efficiency & Sound Mitigation .

In spite of its high-speed operation, the AC axial fan integrates noise-dampening attributes:.

• Audio Levels: 36– 38 dBA at 2700 RPM, quieter than numerous industrial-grade followers.
• Vibration Decrease: Well balanced rotor assembly and precision-molded blades reduce powerful sound, important for audio tools or medical devices.

Robust Construction & Reliability .

• Product Top Quality: Flame-retardant polycarbonate real estate (UL94 V-0 rated) and corrosion-resistant blades.
• Environmental Resilience: Operates in temperature levels from -10 ° C to +70 ° C, with optional finishes for humidity or chemical direct exposure.
• Weight: Lightweight (202g) yet durable, minimizing anxiety on placing surface areas.

Applications .

• Industrial: Cooling PLCs, electric motor drives, and CNC systems.
• Telecom: Air flow for 5G base stations and network buttons.
• Medical Devices: Quiet cooling for imaging gadgets and laboratory tools.
• Renewable resource: Inverter and battery air conditioning in solar/wind systems.

Final thought .

The 80 × 80 × 25mm AC axial fan integrates high-speed cooling (as much as 2700 RPM), global voltage assistance, and configurable bearing modern technology to attend to varied thermal difficulties. Whether released in a loud or a noise-sensitive clinical laboratory, its blend of 23 CFM air flow, 4.0 mmH ₂ O fixed stress, and 38 dBA acoustic efficiency makes certain efficient, dependable procedure.

With a compact impact and robust building and construction, it is a flexible option for designers prioritizing space performance, energy savings, and lasting dependability in cooling down systems.
