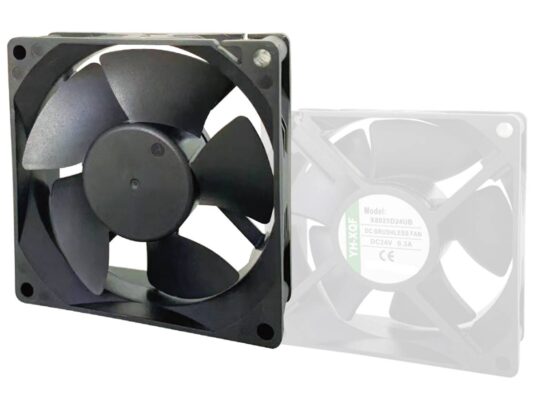

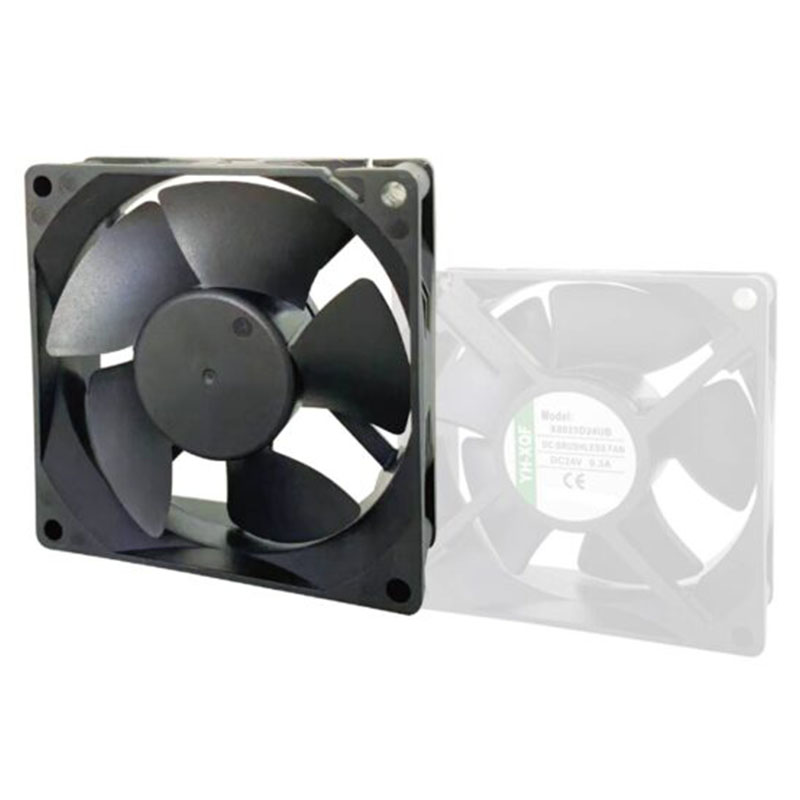

80x80x25mm DC Axial Fan Ball Bearing
This 80x80x25mm DC axial fan features a durable ball bearing system, wide voltage range (12–48V), and high airflow performance up to 79.05 CFM. Ideal for continuous cooling in tight spaces, it ensures quiet, efficient, and reliable thermal management.
Product Intro: 80x80x25mm DC Axial Fan with Sphere Bearing (12– 48V).
In high-performance digital and industrial settings, keeping constant air flow and warmth dissipation is crucial to the long life and effectiveness of devices. The 80x80x25mm DC Axial Fan with Ball Bearing supplies a reputable and robust cooling solution made to fulfill the needs of a vast array of applications, from industrial control equipment to telecoms and power electronics.
Compact and Versatile Design.
With a portable kind factor determining just 80mm x 80mm x 25mm, this DC axial fan is engineered to fit in space-constrained installations without endangering performance. Its square layout and light-weight framework– simply 72 grams– make sure simple assimilation into rooms, panels, or any type of application requiring regular air conditioning in tight rooms.
the DC axial fan is produced with high-quality thermal plastic (UL 94V-0) for both the frame and impeller. This flame-retardant material improves safety while providing toughness in a variety of environmental problems. The black matte coating includes an expert look, complementing modern hardware aesthetic appeals.
Wide Voltage Array Support (12V, 24V, 48V).
This fan is offered in arrangements compatible with three different rated voltages– 12V, 24V, and 48V DC– each supporting a broad operational voltage array:.
- 12V Versions: 7.0– 13.8 V.
- 24V Designs: 14.0– 27.6 V.
- 48V Versions: 28.0– 56.0 V.
This broad voltage versatility makes certain stable operation also under fluctuating power supply conditions, making it suitable for mission-critical systems where dependability is extremely important.
Advanced Round Bearing System.
Furnished with a ball bearing system, this fan delivers long-lasting efficiency with reduced rubbing and reduced wear with time compared to sleeve-bearing choices. The round bearings make sure trustworthy operation at both high and low temperature levels, and they sustain horizontal, vertical, or likely installing without sacrificing performance or lifespan. This makes the DC axial fan especially suitable for constant operation sought after atmospheres.
Powerful Airflow and Fixed Pressure Performance.
Cooling efficiency is where this axial fan truly excels. Relying on the model, it provides rated rates from 5000 to 8200 RPM, giving maximum air movement as much as 79.05 CFM (2.24 m FOUR/ min) and fixed pressure as high as 20.35 mmH two O (0.8 inchH ₂ O). These high air flow rates make certain effective air conditioning of high-power tools, motherboard, or largely jam-packed rooms.
Even at reduced rates (e.g., 5000 RPM), the DC axial fan achieves a decent 48.2 CFM air flow, ensuring reliable thermal administration with decreased power usage and noise outcome.
Sound Optimization.
Noise levels vary from simply 39 dBA to 51 dBA , depending on the voltage and rate setups. This makes the DC axial fan suitable for settings where noise sensitivity is a problem– such as workplace electronics, clinical devices, or audio-visual equipment– while still providing high air flow.
Thanks to accuracy production, the impellers are well-balanced to minimize vibration and acoustic disturbance, even at greater RPMs. The use of a ball bearing system additional boosts silent procedure over lengthy solution hours.
Power Performance.
Power intake differs from just 3.4 W to 8.4 W , relying on the selected voltage and rate score. Lower current designs (as reduced as 0.08 A) are particularly suitable for energy-sensitive applications or systems working on battery power, while higher present models deliver efficiency for heat-intensive setups.
the DC axial fan likewise supports auto-restart and reverse polarity defense , includes that secure both the DC axial fan and the host tools from electrical failures and unanticipated power interruptions.
Environmental and Safety And Security Scores.
This fan is built to run in vast temperature level and moisture varieties:.
- Running Temperature: -10 ° C to +70 ° C. Storage Temperature: -40 ° C to +80 ° C. Moisture Tolerance: 35% to 85% RH.
It features resistance protection and is created for use in sturdy, high-demand environments, including both indoor and exterior enclosures with sufficient securing.
Its defense ratings likewise include:.
- FG (Frequency Generator) Signal Outcome: For fan monitoring.
- RD (Rotation Detection): For functional feedback.
- IP Score (Access Defense): Enhancing dirt and moisture resistance.
- PWM Control (Pulse Width Inflection): For rate control based on system temperature.
These attributes make the DC axial fan a preferred option in smart systems requiring real-time surveillance and automated fan rate change.
Normal Applications.
The 80x80x25mm DC axial fan is versatile and suitable for a large range of applications, including however not restricted to:.
- Industrial Automation: Keeping control closets and PLC units cool.
- Telecom and Networking Devices: Preserving air flow in routers, servers, buttons, and base stations.
- Power Supplies and Inverters: Avoiding thermal closures in power electronics.
- Medical Gadgets: Giving silent, trustworthy airflow in analysis and treatment equipment.
- Consumer Electronics: Cooling for home computer, game gaming consoles, and media servers.
- LED Lights Solutions: Regulating heat in high-intensity LED units.
- Battery-Powered Instruments: Making sure durability of battery parts by means of thermal law.
Mechanical Measurements and Installment.
With standard measurements and placing opening positioning (71.5 ± 0.3 mm apart), the DC axial fan supplies simple drop-in substitute for existing 80mm x 25mm cooling down services. It can be mounted utilizing basic screws or brackets and supports both front and back air flow setups.
The incorporated 3-wire UL type adapter (with red, black, and yellow leads) simplifies electrical link and enables surveillance or control attributes through FG and PWM signal lines where offered.
Trustworthy High Quality and Certification.
Produced under rigorous quality control, this fan abides by international safety and performance standards. All designs include UL-certified parts and are built to endure years of operation in both static and mobile environments.
The high-precision design of the impeller blades and inner rotor structure makes certain constant efficiency under varying loads, while the high MTBF (Mean Time Between Failings) score supports 24/7 constant usage in commercial or commercial settings.
Final thought.
The 80x80x25mm DC Axial fan with Round Bearing (12– 48V) stands for a perfect equilibrium in between small design, effective efficiency, and lasting integrity. Whether you’re cooling down digital units, boosting the air flow of embedded systems, or keeping thermal regulation in industrial cabinets, this fan delivers phenomenal worth and versatility.
With wide voltage assistance, wise control options, and a durable ball bearing system, it’s the ideal air conditioning solution for specialists looking for effective thermal administration popular environments. Its energy effectiveness, silent procedure, and robust construction make it a necessary element for modern electronics, automation systems, and past.
