80x80x25mm DC Axial Fan Ball/Sleeve

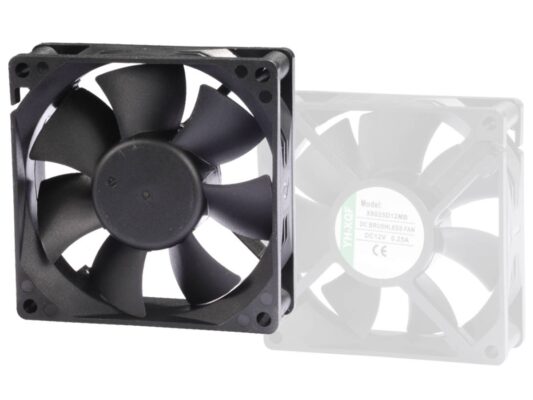

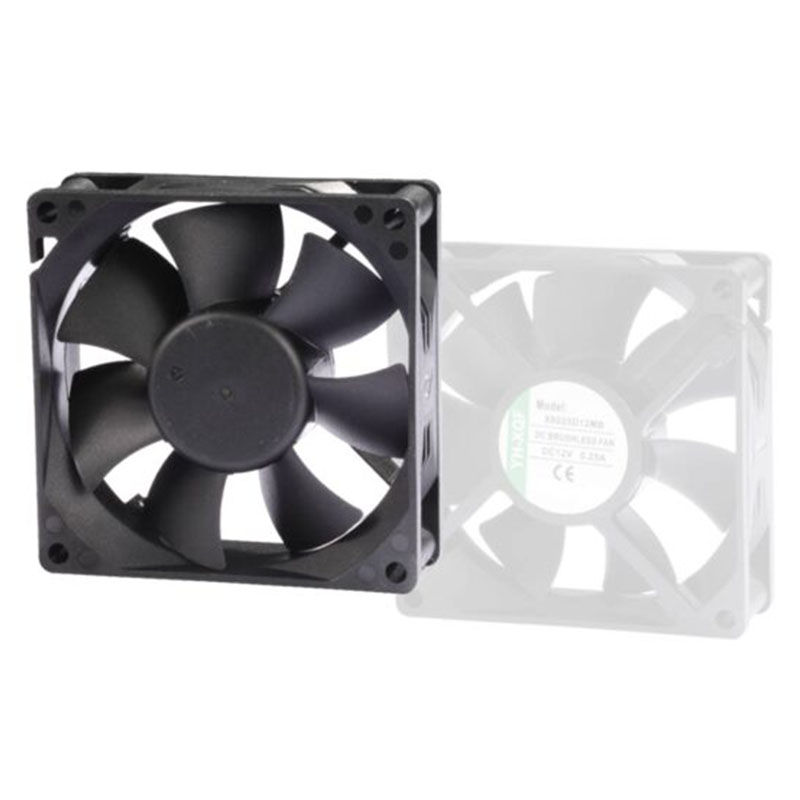

Item Intro: 80x80x25mm DC Axial Fan with Ball/Sleeve Bearing

In today’s fast-paced, high-performance industrial and electronics atmospheres, guaranteeing effective cooling is not simply valuable– it’s crucial. Among one of the most reliable and dependable services for thermal management is the 80x80x25mm DC axial fan . Engineered with accuracy and toughness, this compact cooling device features the optimal balance of airflow capacity, energy efficiency, and sound control, making it an indispensable part for a vast array of applications.

Compact Yet Powerful Style

At simply 80mm x 80mm x 25mm, this axial fan boasts a small impact while delivering phenomenal performance. It’s preferably suited for applications where room is minimal but airflow can not be jeopardized. the DC axial fan blades are aerodynamically enhanced to optimize air delivery while decreasing disturbance and resistance, making certain smoother air flow and remarkable cooling effectiveness.

The portable size enables it to be incorporated right into limited units and panels without influencing system layout or overall product impact. Whether used in computer systems, communication tools, power supplies, or commercial control systems, its dimensions make it the perfect suitable for specific thermal control.

High-Efficiency DC Procedure

This axial fan operates DC voltage, supporting a large voltage array (from 12V to 48V depending on setup), offering system designers adaptability in incorporating it right into various voltage platforms. The reduced power usage makes sure energy financial savings while maintaining high reliability and expanded procedure times. Its rated existing and power input differ according to the voltage arrangement, providing custom-made services for various cooling needs.

DC-powered fans are recognized for their steady performance and controlled speed. This fan supports PWM (Pulse Size Inflection) performance, allowing vibrant rate control based upon real-time temperature readings or system needs. This not just maximizes energy usage yet also helps in reducing noise output when full-speed procedure is unneeded.

Double Bearing Options for Diverse Requirements

This design offers 2 bearing alternatives– sphere bearing and sleeve bearing — to fulfill different functional demands:

• Round Bearing : Best suited for high-temperature environments or setups that need the DC axial fan to operate in any positioning. Sphere bearings offer longer life expectancy and far better performance stability in time. They are optimal for commercial and mission-critical systems that require lasting reliability and reduced upkeep.
• Sleeve Bearing : Designed for affordable, quieter operation in lower-temperature environments. While typically offering a shorter life-span than ball bearings, sleeve bearings are an exceptional option for much less demanding applications where sound sensitivity is prioritized.

This double bearing system alternative enables users to pick one of the most proper setup based upon the distinct needs of their application, making the DC axial fan unbelievably versatile.

Superior Air Flow and Stress Efficiency

With a rated speed varying from 3500 to 6000 RPM, the DC axial fan supplies an optimum air movement of up to 77.32 CFM (cubic feet per minute), equating right into 2.19 m TWO/ min. Such high-performance airflow makes sure quick warmth dissipation, successfully shielding sensitive parts from thermal stress or failure.

Its static stress efficiency is equally impressive, getting to as high as 17.78 mmH ₂ O depending on the speed setup. This solid pressure ability is particularly advantageous when cooling down should be supplied through tight or obstructed paths, such as in largely stuffed electronic devices rooms or secured systems.

The included efficiency contours (P-Q curves) give critical insights into how the DC axial fan performs throughout varying air flow and stress scenarios, aiding designers choose the optimum configuration for their thermal style.

Low Sound Operation

Despite its effective air flow, the DC axial fan preserves impressively low noise degrees– starting from simply 37 dBA for lower-speed arrangements to about 48 dBA at optimal output. The acoustic efficiency is even more improved by the specific layout of the impeller and framework, which work together to decrease vibration and acoustic resonance.

This makes the DC axial fan suitable for noise-sensitive atmospheres, such as consumer electronics, workplace tools, clinical tools, and wise home appliances. Individuals benefit from efficient air conditioning without the trade-off of disruptive noise, which can be a considerable benefit in expert or domestic setups.

Sturdy Build and Security Attributes

Manufactured making use of UL 94V-0 ranked thermal plastic for both the structure and impeller, this fan is flame-retardant and durable. The durable develop quality allows it to withstand wide operating temperatures, commonly from -10 ° C to +70 ° C, and storage temperatures varying from -40 ° C to +80 ° C. With an operating humidity resistance of 35% to 85% RH, it is designed to withstand even in tough environments.

the DC axial fan is protected with multiple built-in security functions, including:

• Auto-Restart : Ensures the DC axial fan resumes operation instantly after a power disruption or mistake.
• Reverse Polarity Protection : Avoids damage in case of wrong power supply connection.
• Insusceptibility Defense : Defend against overheating by limiting electric motor existing in case of mechanical clog.
• FG and RD Signal Support : Makes it possible for sophisticated tracking of fan condition and mistake discovery for assimilation into wise systems.

Such functions contribute to the DC axial fan’s long life span and reliability, reducing downtime and lowering maintenance requirements.

Wide Application Flexibility

The 80x80x25mm DC axial fan is commonly utilized throughout numerous sectors and products, including:

• Customer Electronics : Desktop computer PCs, gaming consoles, home devices.
• Industrial Tools : Inverter cabinets, automation controllers, and power materials.
• Medical Gadgets : Diagnostic devices, monitoring systems, and ventilators.
• Telecommunication Systems : Routers, servers, buttons, and base stations.
• Automotive Electronic Devices : Battery air conditioning, in-cabin ventilation, and infomercial systems.

Its universal style, integrated with adjustable bearing systems, voltage choices, and air flow scores, make it a one-size-fits-many cooling solution versatile to virtually any type of demand.

Easy Setup and Integration

With typical mounting hole measurements and clear mechanical drawings offered, integrating this fan into new or existing designs is effortless. The four-corner placing system ensures secure accessory and vibration resistance, while the lead cord layout adapts UL requirements for safe and trusted electrical connection.

System designers will value the in-depth mechanical specifications, as they simplify the design procedure and lower time-to-market when including the DC axial fan into OEM systems or personalized enclosures.

Verdict

The 80x80x25mm DC axial fan with round or sleeve bearing is greater than simply a portable cooling element– it’s a clever, efficient, and durable remedy for modern-day thermal management challenges. Its combination of effective air movement, personalized attributes, reduced noise levels, and robust security systems guarantees it fulfills the advancing demands of today’s electronics and industrial applications.

Whether your system demands long-term reliability, silent operation, or high air movement in a limited room, this fan delivers exceptional performance with proven outcomes. As thermal requirements continue to progress across markets, this fan stands ready as a reputable foundation of intelligent air conditioning design.
