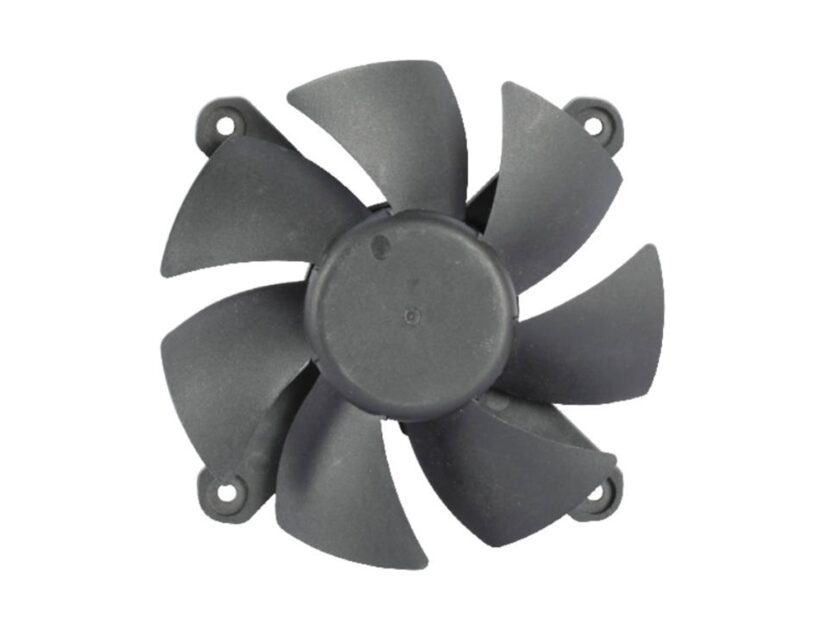

92x23mm DC Axial Fan12V Brushless PWM

The Ultimate 92mm DC Axial Fan: Power, Precision, and Protection

In the complex world of contemporary electronics, efficient thermal monitoring is not simply a function– it’s a fundamental requirement. From high-performance computer and information facilities to advanced consumer electronics, the ability to effectively dissipate warm is extremely important to ensuring performance, stability, and long life.

This 92x23mm 12V Brushless DC Axial Fan is engineered to fulfill this important need, supplying a masterful blend of durable airflow, quiet operation, and smart control. Created for system builders, IT specialists, and electronic devices lovers who decline to compromise on top quality, this follower stands as a pinnacle of cooling down modern technology, giving a reliable and adaptive solution for also the most demanding settings.

Durable Design and Superior Building And Construction

At the core of this DC axial fan’s outstanding integrity is its premium layout and building. The structure and the seven-blade impeller are crafted from a state-of-the-art thermal plastic, which brings a UL 94V-0 flammability ranking. This certification is a testimony to its safety and security, suggesting that the product is self-extinguishing and will certainly not circulate a fire, a vital attribute for elements housed within valuable electronic systems.

The DC axial fan’s 92mm kind variable is a flexible criterion, striking a suitable balance in between portable size and significant air-moving ability. The physical dimensions, with a total frame size of 98mm and a depth of 23mm, allow for installment in a wide range of applications, consisting of computer cases, CPU heatsinks, web server enclosures, and network-attached storage (NAS) devices. The 4 placing openings, spaced on an 88mm diameter, make sure secure and uncomplicated installment.

The unique style of the seven impeller blades is the outcome of advanced wind resistant engineering. The blades are steeply bent and swept back to make best use of the quantity of air moved with each turning while simultaneously minimizing the acoustic trademark, lowering the disturbance that usually brings about undesirable noise.

Attaching the DC axial fan is made basic and versatile with the addition of 300mm lead cords, giving ample length to reach motherboard headers or fan controllers without the need for extenders in a lot of common builds. Every physical element of this fan, from its material composition to its blade geometry, has actually been diligently crafted for durability and peak performance.

Uncompromising Performance and Effectiveness

This DC axial fan is powered by an advanced brushless DC motor, which acts as the heart of its performance capacities. Unlike older brushed motors, the brushless layout gets rid of physical contact brushes, causing a dramatically longer life expectancy, exceptional efficiency, reduced operational noise, and minimal electro-magnetic disturbance (EMI). This DC axial fan is readily available in numerous performance-tuned variants, permitting customers to select the ideal equilibrium of air movement and acoustics for their particular requirements.

Efficiency metrics are impressive across the board. With operational rates ranging from a silent 2000 RPM to an effective 2800 RPM, the fan can producing a substantial air flow of as much as 42.74 CFM (Cubic Feet per Min). This high quantity of airflow is vital for rapidly evacuating hot air from a chassis or forcing trendy air through restrictive components.

Past raw air flow, the DC axial fan masters generating static stress, reaching up to 3.27 mmH two O. Static stress is an essential, typically overlooked, statistics that specifies a follower’s capacity to push air versus resistance. This makes it remarkably well-suited for applications where air must be compelled with dense heatsink fin arrays, dust filters, or chaotic rooms with restrained air movement paths.

Regardless of this effective outcome, the DC axial fan stays incredibly effective, with a reduced power draw varying from simply 1.92 to 2.76 watts. This power performance lowers the overall power intake of the system and lessens the negligible amount of heat included by the follower motor itself.

Intelligent Control and Advanced Protection

What truly sets this DC axial fan apart is its suite of innovative digital functions that provide smart control and failsafe dependability.

Pulse Width Modulation (PWM) Speed Control: The addition of PWM functionality changes this part from a simple fan right into a smart, responsive air conditioning tool. With a 4-pin port, the fan’s speed can be specifically and dynamically managed by the motherboard or a committed follower controller. This permits the system to automatically adjust the follower’s RPM based upon real-time thermal lots. The result is a system that runs basically quiet throughout idle or low-load conditions and flawlessly increases to give effective air conditioning when efficiency is required, optimizing both acoustics and thermal headroom.

Comprehensive Electric Motor Protection: To assure a lengthy and dependable service life, the electric motor incorporates a number of layers of defense. Insusceptibility security makes sure that if the DC axial fan blades are ever before physically blocked, the motor will certainly not burn out from the stalled state. Additionally, reverse polarity protection safeguards the fan’s delicate electronics from damage in the event of unintentional inaccurate circuitry, a basic blunder that could or else ruin a lesser fan.

System Monitoring and Failsafes: For mission-critical applications where cooling failure is not an alternative, this DC axial fan is outfitted with checking capabilities. A Regularity Generator (FG), or tachometer result, gives a signal that enables the host system to accurately keep an eye on the follower’s rotational rate. This comments is important for confirming that the air conditioning system is operating as anticipated. An optional Rotation Detector (RD) alarm system function can send a signal to inform the system if the DC axial fan stops spinning for any factor.

Finally, the Car Reactivate attribute makes sure that if the motor is stalled and the blockage is later gotten rid of, it will automatically try to begin rotating once again, bring back the system’s cooling capacities without manual intervention.

This 92x23mm 12V Brushless PWM DC Axial Fan is more than simply a part; it’s an integrated thermal monitoring option. By integrating a robust and secure physical style with powerful air movement, high fixed pressure, and a collection of smart features like PWM control and multi-layered electric motor protection, it delivers the performance and peace of mind needed for any kind of severe digital application.
