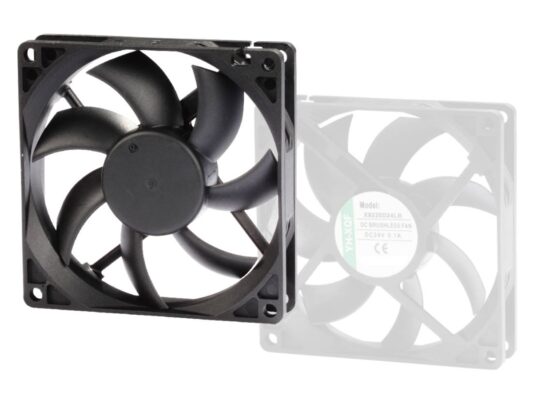

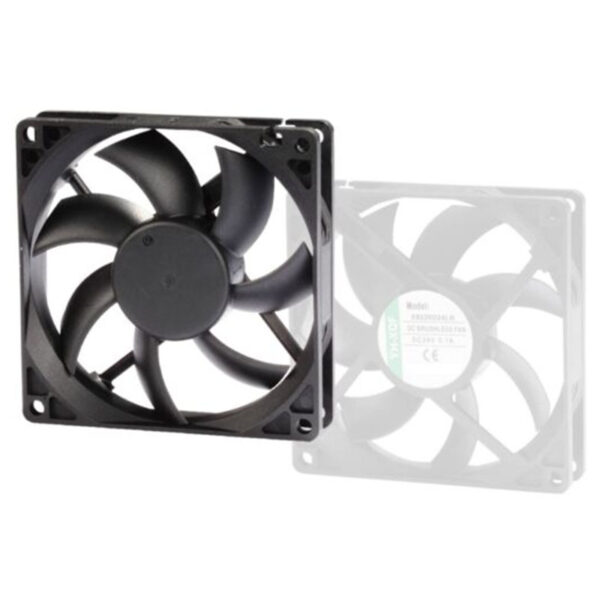

92x92x20mm DC Axial Fan Ball/Sleeve low noise

Product Introduction: 92x92x20mm DC Axial fan (Ball/Sleeve, Low Sound) .

In today’s hectic globe of electronics and small computing, effective thermal monitoring has actually ended up being a cornerstone of system reliability and performance. Whether you’re cooling an embedded commercial system, a power supply unit, or a high-density computing room, the selection of cooling down fan can significantly influence efficiency, longevity, and acoustics.

The 92x92x20mm DC axial fan is a high-efficiency, portable air conditioning option engineered to meet the demands of modern-day digital systems requiring silent procedure and reputable airflow performance. Including a twin bearing option (round bearing or ball/sleeve crossbreed), this fan is designed to provide a superior equilibrium between toughness, performance, and low sound outcome.

Precision Design and High-Quality Materials .

the DC axial fan’s housing and impeller are crafted from UL 94V-0 rated thermal plastic , making certain extraordinary warmth resistance, fire retardance, and mechanical stability. These materials allow for extended procedure in challenging atmospheres, sustaining an operating temperature range from -10 ° C to 70 ° C and storage temperatures between -40 ° C and 80 ° C . This broad temperature resistance makes it perfect for usage in demanding commercial, vehicle, and consumer digital applications.

Additionally, the lead cables follow UL criteria, with clearly color-coded favorable and unfavorable terminals for simple installment.

Compact Style with Optimum Airflow .

Gauging just 92mm x 92mm x 20mm , this axial fan is developed for space-constrained applications while still supplying a durable air flow of up to 78.69 CFM (Cubic Feet per Min) . Despite its slim account, the DC axial fan’s aerodynamic blade style enables it to produce a high fixed stress of as much as 4.85 mmH ₂ O , which aids ensure consistent air conditioning across thick or high-resistance elements, such as securely loaded heat sinks or enclosures with limiting venting.

The style additionally consists of four precision-drilled mounting holes (24.5 ± 0.3 mm apart), allowing for protected and global installment in a range of tools and panels.

Flexible Power Compatibility .

Among the crucial toughness of this 92mm fan is its vast voltage compatibility . It supports procedure at 5V, 12V, and 24V DC , with more resistance for variable voltages (e.g., 3.5– 6.5 V, 7.0– 13.8 V, 14.0– 27.6 V) depending on the selected setup. This adaptability makes sure seamless assimilation into power-sensitive systems such as mobile devices, embedded computing boards, and network equipment.

Ranked existing and power intake are maximized for power effectiveness, varying from 0.17 A to 0.55 A and 1.02 W to 2.75 W depending upon the specific voltage and bearing arrangement. This results in lower power draw and warm generation from the DC axial fan itself– suitable for systems where power preservation is important.

Sphere and Ball/Sleeve Hybrid Bearing Options .

the DC axial fan is readily available in both round bearing and ball/sleeve crossbreed arrangements, catering to a range of application needs:.

• Round Bearing: Made for higher longevity and performance under demanding continual operation, ball bearing fans supply prolonged service life and can run efficiently in any placing orientation. They are well-suited for mission-critical industrial or networking systems.
• Ball/Sleeve Crossbreed Bearing: For applications that focus on quieter procedure and cost-efficiency, the ball/sleeve crossbreed provides a wonderful balance. This setup accomplishes reduced acoustic result , as low as 28 dBA , without significantly jeopardizing on performance or lifespan.

The sound level across configurations ranges from 28 dBA to 40 dBA , making sure quieter atmospheres for customers and operators– a substantial benefit in office workstations, home appliances, and public-facing devices.

Intelligent Motor Security and Security .

This axial fan includes smart electric motor defense features such as insusceptibility security and turn around polarity defense , enhancing safety and security and decreasing the threat of fan damages due to miswiring or overwhelming. the DC axial fan is also geared up with Auto Restart and Turning Detection (RD) choices, supplying added dependability for important environments where regular air movement is non-negotiable.

For applications requiring innovative control, PWM (Pulse Size Inflection) and FG (Regularity Generator) signal support are additionally offered. These permit dynamic rate change and real-time tracking, making the DC axial fan suitable for systems with temperature-controlled cooling approaches or fan failing informs.

Performance Across Voltage Ranges .

Below is a performance failure across sustained voltage variations:.

• 5VDC Variation: .
• Max Air flow: As Much As 78.69 CFM .
• Fixed Stress: 4.85 mmH ₂ O .
• Sound Level: 28– 40 dBA (depending on RPM).
• Perfect for battery-powered and USB-powered tools.
• 12VDC Variation: .
• Airflow: Approximately 78.69 CFM .
• Power Draw: Moderate (up to 4.08 W).
• Stabilized for performance and power performance as a whole electronics.
• 24VDC Variation: .
• Reduced current draw (as low as 0.17 A).
• Preserves airflow performance approximately 59.03 CFM .
• Ideal for industrial-grade systems and settings with higher voltage rails.

All variants evaluate roughly 85g , guaranteeing very little influence on system weight and mechanical equilibrium.

Application Convenience .

Thanks to its durable design, versatile efficiency, and reduced sound degrees, this 92x92x20mm DC axial fan can be made use of across a large range of markets and applications:.

• Industrial Tools: PLCs, motion control systems, and power components.
• Networking Devices: Routers, changes, firewall programs, and access points.
• Customer Electronic Devices: Video gaming consoles, projectors, and stereo.
• Medical Instruments: Analysis equipments, sterilization systems, and portable wellness displays.
• Automotive Electronics: Battery management systems, infotainment, and inverters.
• 3D Printers & CNC Machines: Extruder air conditioning, unit airflow, and electronics cooling down.
• Telecommunications: Base stations, remote devices, and indoor signal boosters.

Its capacity to operate in high-vibration environments and support a vast ambient temperature range makes it a trustworthy solution even under tough operational conditions.

Verdict .

The 92x92x20mm DC axial fan offers an engaging mix of silent performance, long lasting construction, power effectiveness, and safety , all packaged within a slim form aspect. With alternatives for various bearings, voltage ranges, and intelligent features such as RD, FG, and PWM support, this fan is highly functional and fit for a wide spectrum of applications– from premium industrial systems to portable consumer gadgets.

Engineered to supply trustworthy cooling while maintaining a reduced acoustic impact, this fan fulfills the raising needs of modern electronics, where silent operation and efficient warm administration are no longer optional– they’re necessary.

Whether you need an air conditioning option for a mission-critical system or a silent fan for a portable room, the 92x92x20mm DC axial fan is a tried and tested, economical choice developed to maintain your system running cool and peaceful.
