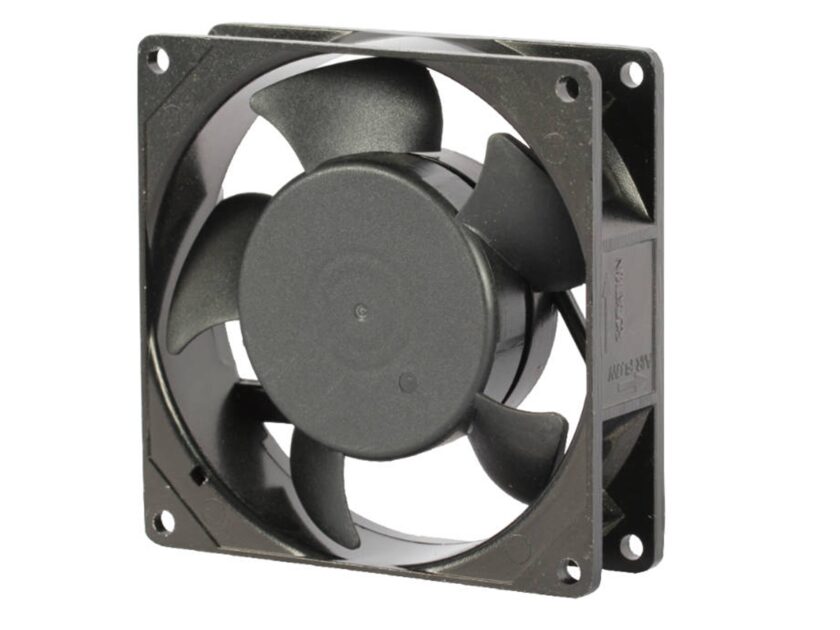

92x92x25mm AC Axial Fan Ball Bearing 110–380V

Comprehensive Item Introduction: 92x92x25mm AC Axial Fan with Ball Bearing (110-380V).

This high-performance 92x92x25mm AC axial fan represents an exceptional blend of compact layout, functional power compatibility, and reliable air conditioning efficiency, making it an optimal service for a broad range of digital and industrial applications needing effective, silent, and resilient air movement.

Engineered for Compact Performance & Robust Building

Created with an exactly specified square frame measuring 92mm in both width and height, this AC axial fan maintains a remarkably slim account at simply 25mm thick. This small footprint permits seamless combination right into space-constrained environments such as control closets, instrumentation panels, telecommunications devices, medical devices, and specialized equipment where internal property goes to a costs.

In spite of its slender construct, the AC axial fan shows durable building and construction. Secret placing measurements consist of edge placing openings placed 82.5 mm diagonally apart (center-to-center), making sure secure and secure addiction making use of basic M3 or M4 screws. The central hub size is 40.5 mm, real estate the innovative electric motor and bearing system. Most importantly, the design specifies a minimum clearance of 300mm ( ± 10mm) behind the follower for unobstructed air intake, ensuring optimum airflow performance in real-world installations. The total weight of around 272 grams signifies a solid build quality utilizing durable materials.

Universal Voltage Procedure: Unparalleled Adaptability .

A standout function of this fan is its remarkable voltage flexibility. It is meticulously engineered to operate effectively across a broad series of usual a/c power products internationally:.

• 110V AC: Suitable for common North American and a few other regional power grids.
• 220V AIR CONDITIONER: Matched for European, Asian, and several other global typical voltages.
• 380V AIR CONDITIONING: Made for higher voltage industrial three-phase applications common in equipment and hefty tools. This broad 110-380V operating variety eliminates the demand for multiple fan SKUs for various power environments. It streamlines supply monitoring for OEMs and system integrators and offers future-proofing for devices that could be deployed in different geographical regions or within facilities with blended voltage systems. Despite the significant voltage differences, the follower preserves extremely regular core efficiency features throughout all variants.

Superior Efficiency and Acoustic Comfort .

Leveraging its reliable a/c electric motor layout, this AC axial fan delivers trustworthy and reliable air conditioning:.

• Air movement: Generates a considerable 24 CFM (0.67 cubic meters per min) of air flow. This capacity is extremely reliable for moving heat away from vital components within rooms or throughout heatsinks.
• Static Pressure: With the ability of overcoming system resistance with a static pressure of 4.5 mmH two O (0.18 inchH ₂ O). This makes certain efficient air flow even when pushing through filters, grilles, or densely stuffed digital components.
• Speed & Power: Runs at a small rate of 2500 RPM ( ± 10% common), drawing a small power input varying from approximately 15.2 W to 17.6 W depending on the voltage variation. This equilibrium supplies strong efficiency without too much energy intake.
• Outstanding Quietness: A truly remarkable characteristic is its reduced acoustic signature, rated at just 33 dBA. This near-silent procedure makes it perfect for noise-sensitive atmospheres like workplaces, videotaping studios, clinical imaging rooms, program devices, and domestic home appliances, dramatically boosting customer comfort and conformity with sound regulations.

Advanced Round Bearing System: The Structure of Durability .

The core of this AC axial fan’s reliability and expanded life span hinges on its top notch ball bearing system . Contrasted to sleeve bearings, round bearings use significant benefits:.

1. Improved Toughness: Sphere bearings are much more immune to wear and tear, particularly under constant operation or higher ambient temperatures.
2. Greater Temperature Level Resistance: They execute accurately over a broader temperature level range, making them suitable for demanding commercial settings.
3. Reduced Rubbing & Lubrication Retention: Minimized friction lessens power loss and heat generation within the bearing itself. They additionally maintain lubrication more effectively over extended periods.
4. Prolonged Operational Life: Ball bearings typically supply 2-3 times the functional life expectancy of equivalent sleeve bearings (frequently going beyond 50,000+ hours L10 life), equating to lower maintenance prices and minimized risk of unexpected failure. This makes the AC axial fan perfect for critical applications, 24/7 procedure, and hard-to-service places.

Perfect Applications .

This flexible AC axial fan is flawlessly suited for a substantial selection of cooling down needs:.

• Electric & Industrial Enclosures: Cooling PLCs, drives, power supplies, transformers, and control systems in closets (NEMA/IP rated or common).
• Telecoms: Ventilating routers, switches, base stations, and server shelfs.
• Medical Tools: Offering silent and reliable cooling for diagnostic gadgets, imaging systems, and lab tools.
• Automation & Machinery: Cooling drives, controllers, lasers, and power electronics on.
• Examination & Measurement Tools: Guaranteeing secure temperatures for sensitive electronic devices.
• Audio/Video & Program Devices: Silent air conditioning for amplifiers, mixers, and program equipment.
• Industrial Equipments & Selling: Cooling compressors, control boards, and internal elements.
• LED Illumination: Air flow for high-power LED vehicle drivers and components.

Conclusion .

The 92x92x25mm AC axial fan with Round Bearing stands as a premier selection for engineers and designers seeking a small, high-performance, and exceptionally dependable air conditioning service. Its global 110-380V AC compatibility provides unequaled flexibility for international implementation. The durable round bearing building guarantees lasting reliability and toughness, also in demanding operating conditions. Paired with its reliable air movement (24 CFM/ 0.67 m FOUR/ min), adequate fixed stress (4.5 mmH ₂ O), and remarkably low sound degree (33 dBA), this AC axial fan provides an exceptional equilibrium of performance, peaceful procedure, and durability.

Whether cooling down sensitive electronic devices in a peaceful workplace setup or ensuring reputable operation of industrial equipment, this AC axial fan gives a reliable, resilient, and acoustically exceptional solution tailored for modern thermal administration challenges.
