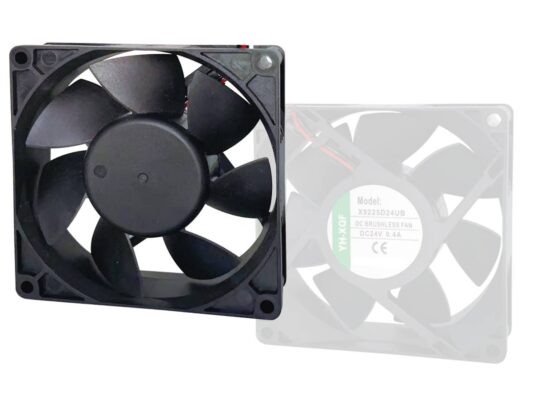

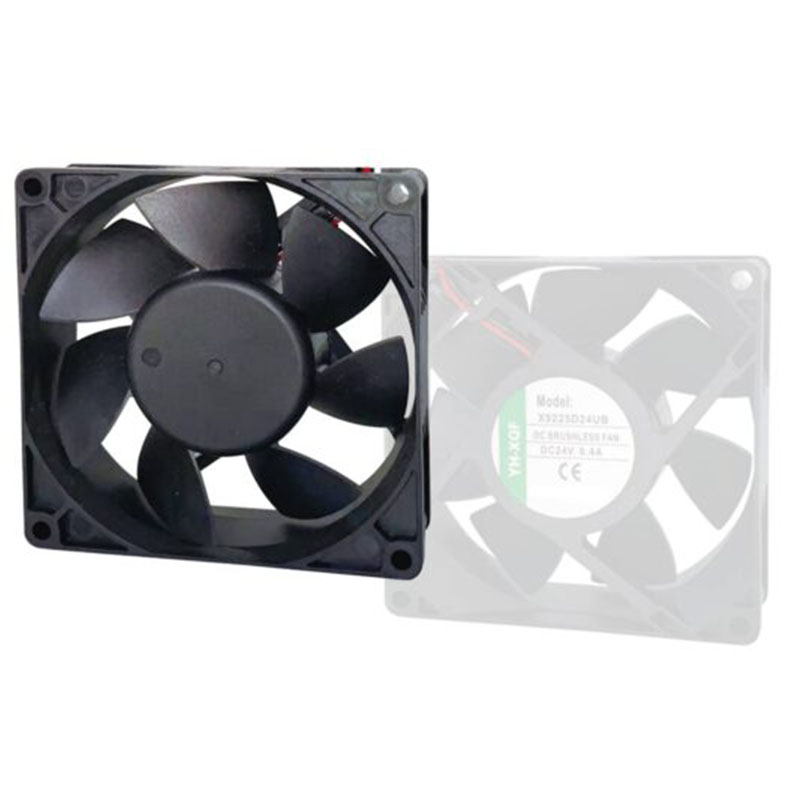

92x92x25mm DC Axial Fan 12/24V Ball Bearing

Product Intro: 92x92x25mm DC Axial fan (12/24V, Sphere Bearing).

In modern-day electronics and industrial equipment, reliable thermal monitoring is vital to maintaining efficiency, reliability, and longevity. The 92x92x25mm DC Axial Air Conditioning Fan , running at either 12V or 24V, sticks out as a dependable and high-performance service engineered for a vast array of cooling down applications. Made with precision and toughness in mind, this fan leverages a ball bearing system, thermal plastic building, and a carefully crafted impeller to guarantee optimum air flow, reduced noise, and long functional life also sought after environments.

High-Performance Cooling in a Compact Type Element.

With dimensions of 92mm x 92mm x 25mm , this axial fan provides powerful cooling abilities in a compact dimension. Its design accommodates installation in limited spaces where efficient warmth dissipation is vital– such as within computer chassis, industrial control closets, telecommunications tools, power materials, and various automation systems.

Regardless of its little footprint, the DC axial fan attains a maximum air flow of up to 107.5 CFM (cubic feet per min), supplying remarkable performance for its class. This makes it appropriate not only for common cooling jobs but additionally for scenarios where warmth is created swiftly and needs instant dissipation.

Sturdy Building And Construction with High-Grade Products.

the DC axial fan is constructed with a UL 94V-0 rated thermal plastic structure and impeller , making sure flame retardancy and mechanical durability. This selection of products offers improved safety and security and durability, especially in atmospheres where thermal anxiety and electric loads are considerable. The impeller style contributes to effective airflow distribution, minimizing disturbance and making best use of pressure.

Advanced Round Bearing System.

Unlike sleeve-bearing fans which might deteriorate quickly in high-temperature or vertical placing applications, this model uses a round bearing system for expanded functional life and higher mechanical dependability. Round bearings decrease friction between moving components, leading to quieter performance, raised resilience, and the capacity to run constantly at a bigger variety of temperature levels and positionings.

The ball-bearing setup also improves the DC axial fan’s resistance to dust and resonance– two aspects that often affect fan durability in industrial or rough environments.

Wide Operating Voltage Range and Configurability.

the DC axial fan is available in both 12V and 24V DC variations, each supporting a broad running voltage variety :.

• 12V versions: Run in between 7.0 V and 13.8 V DC.
• 24V models: Operate between 14.0 V and 27.6 V DC.

This adaptability ensures that the DC axial fan can integrate seamlessly right into various systems without the danger of under- or over-voltage conditions. It also supports different speed choices (low, medium, and high RPM), giving individuals the flexibility to pick based upon cooling down demands and sound level of sensitivity.

Technical Specs Summary.

The technical parameters highlight a number of fan versions, each customized to different efficiency needs:.

• Optimum RPM: As much as 6050 RPM , allowing fast air motion.
• Air flow Variety: From 78.2 CFM (reduced rate) to 107.5 CFM (broadband).
• Static Stress: Approximately 19.56 mmH two O , vital for air movement through dense parts or filters.
• Sound Levels: In between 46.3 and 52.8 dBA , permitting balanced acoustic performance depending upon the chosen rate.

This large option ensures compatibility with noise-sensitive atmospheres such as offices or clinical equipment, along with high-performance applications requiring strong air movement.

Power Performance and Input Characteristics.

the DC axial fan is crafted with a focus on power effectiveness . Relying on the version, input power intake ranges from simply 2.76 W to 10.8 W , which helps in reducing general power costs in long-term or high-volume releases. Lower present draw likewise means minimized thermal tons on the system’s power supply.

The electric motor is impedance-protected to secure against damages from delayed rotor problems or overloads. Additionally, reverse polarity defense makes sure risk-free procedure even in the event of circuitry errors throughout installation.

Operating and Storage Space Atmosphere.

Created to perform accurately in difficult environments, the DC axial fan sustains a wide running temperature variety from -10 ° C to 70 ° C , with moisture resistance from 35% to 85% RH . It can additionally be safely saved at temperature levels from -40 ° C to 80 ° C , making it suitable for global deployment in differing climates.

These environmental ratings enable the DC axial fan to function effectively in web server rooms, , auto systems, and outdoor units.

Integrated Attributes for Enhanced Control.

the DC axial fan is readily available with innovative optional features, enhancing its versatility and control capabilities:.

• Vehicle Restart: Guarantees the DC axial fan returns to operation instantly after power interruptions.
• FG (Frequency Generator): Offers tachometer outcome for real-time monitoring of fan rate.
• RD (Turning Detection): Informs systems in case of fan failing or stalled procedure.
• IP (Access Security): Enhanced sealing choices readily available for dust/moisture resistance.
• PWM (Pulse Width Inflection): Permits specific control over fan speed based on thermal problems.

These features make it possible for integration with clever control systems and can substantially improve the safety and performance of the tools in which the DC axial fan is installed.

Installation and Mounting.

With common mounting opening spacing (82.5 mm) and a depth of 25mm, the DC axial fan works with usual mounting arrangements. Each edge of the structure features a 4.5 mm size hole , assisting in easy and secure attachment with screws or brackets.

the DC axial fan features UL-type lead cords : red for positive (+) and black for adverse (−), with a typical length of 300mm ± 10mm . This provides sufficient circuitry versatility for connection to PCBs, ports, or power terminals.

Applications.

The 92x92x25mm DC axial fan appropriates for a wide range of applications, consisting of yet not restricted to:.

• Computer system systems — CPUs, GPUs, power supplies, and chassis ventilation.
• Industrial control devices — PLCs, inverters, and relays.
• Telecoms equipment — Changes, routers, and servers.
• Customer electronics — Gaming consoles, multimedia gadgets.
• Medical tools — Imaging systems, person monitoring devices.
• Automotive electronics — Battery systems, inverters, infomercial cooling.

Its equilibrium of size, airflow, noise, and power performance makes it a versatile and trusted part in specialist and consumer-level tools.

Conclusion.

The 92x92x25mm DC Axial Fan with ball bearings is a high-performance thermal monitoring remedy that satisfies the demanding needs of modern digital systems. Using robust air flow, peaceful operation, lengthy life expectancy, and advanced control functions, it is optimal for individuals searching for a durable and effective cooling fan for both 12V and 24V DC systems.

Whether made use of in computing, industrial control, or interaction systems, this fan supplies dependable cooling performance with the versatility and performance that modern applications call for.
