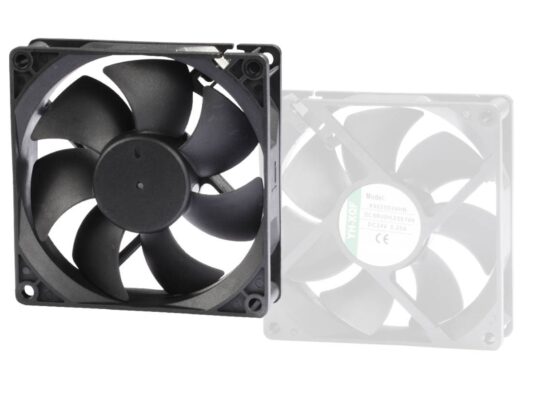

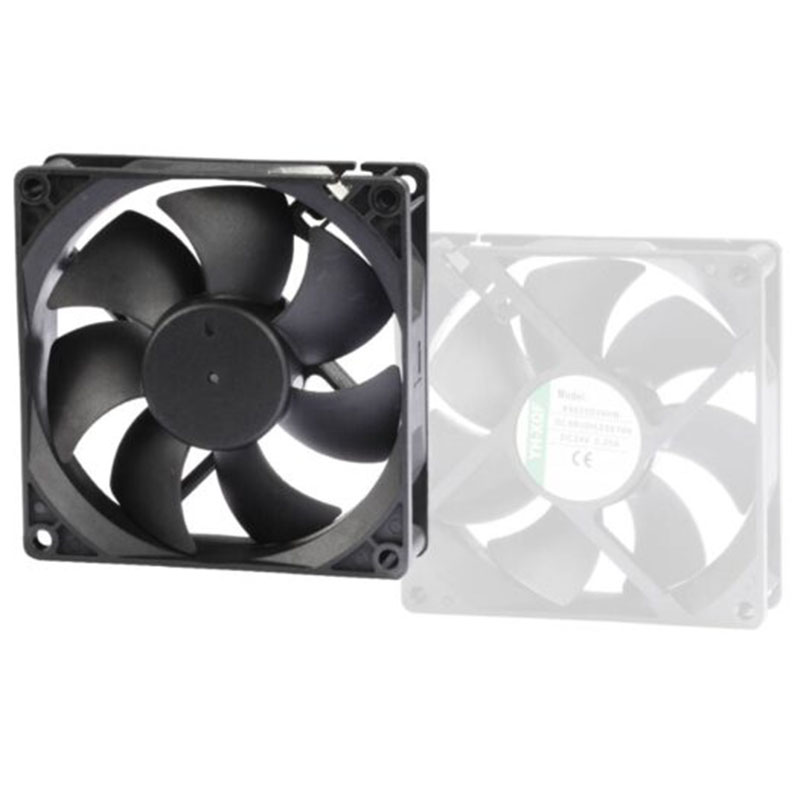

92x92x25mm DC Axial Fan, Ball/Sleeve, 12–48V, Quiet

92x92x25mm DC Axial fan– High-Performance Cooling Down with Compact Performance

In today’s rapidly advancing technical landscape, effective thermal administration is important for maintaining ideal performance and durability of electronic systems. Whether you’re developing enclosures for commercial devices, powering telecommunication facilities, or incorporating thermal services into customer electronic devices, a dependable cooling option is a non-negotiable component of your style.

The 92x92x25mm DC axial fan attracts attention as a powerful, small, and silent remedy crafted to meet a vast array of cooling needs. Created with a thoughtful mix of precision design, resilient materials, and versatile performance features, this DC axial fan is a relied on selection for designers and designers throughout sectors.

Compact Yet Powerful .

With its 92mm x 92mm x 25mm kind aspect, this DC axial fan uses an outstanding size-to-performance ratio. Despite its portable measurements, it delivers remarkable air flow– up to 104.49 CFM — making it ideal for applications where room is limited yet air flow demand is high. Whether you’re working on rack-mounted systems or sealed enclosures, the small impact helps optimize air movement without crowding interior elements.

Versatile Voltage Array: 12V, 24V, and 48V DC .

The DC axial fan is engineered for versatility with operation voltages spanning from 7.0 to 58.0 VDC , supporting rated voltages of 12V , 24V , and 48V . This variety of compatibility enables the DC axial fan to be effortlessly integrated right into various system designs, whether they’re battery-powered, grid-powered, or running within variable voltage atmospheres.

For instance:.

• The 12V version supports consumer electronic devices, auto systems, and tiny kind factor Computers.
• The 24V and 48V versions are suitable for industrial automation, server cabinets, and telecom tools.

Each variant delivers dependable performance customized to its operating voltage, making sure power efficiency and consistency across use cases.

Birthing Alternatives: Round and Sleeve .

The DC axial fan is offered with both sphere bearing and sleeve birthing systems, accommodating varying concerns in regards to life expectancy, alignment, and acoustic requirements.

• Ball Bearings offer exceptional sturdiness, longer life expectancy, and can operate in any placing orientation. Ideal for industrial applications and high-temperature atmospheres, ball bearings improve dependability where downtime is expensive.
• Sleeve Bearings , on the other hand, supply a quieter operation and cost-effectiveness, making them well-suited for atmospheres where reduced sound degrees and budget plan efficiency are focused on.

For users aiming to strike an equilibrium between longevity and silent operation, a ball/sleeve hybrid option is additionally available, offering the very best of both innovations.

High Air Movement & Static Stress .

Among one of the most impressive facets of this fan is its optimum airflow efficiency — rising to 104.49 CFM at 6000 RPM. This makes it capable of quickly dissipating warm from dense or high-power systems.

In addition, the DC axial fan attains fixed pressure levels approximately 0.94 inch H ₂ O (23.82 mmH ₂ O) , which is essential when air flow needs to be guided with restrictive pathways such as filters, heatsinks, or densely stuffed elements. High static stress guarantees reliable cooling even in challenging airflow scenarios.

Quiet Operation for Noise-Sensitive Environments .

Despite its power, the DC axial fan preserves low noise degrees, with variations running as quiet as 42 dBA , making it ideal for noise-sensitive applications such as audio tools, medical gadgets, or workplace electronic devices. This silent performance is accomplished with maximized blade geometry, precision harmonizing, and careful bearing choice.

Where quiet procedure is vital, the 4200 RPM models stand out, offering an equilibrium between air movement and acoustic comfort without compromising thermal performance.

Smart Protection and Includes .

This DC axial fan isn’t practically strength– it’s smartly developed to hold up against real-world operating conditions. Functions consist of:.

• Insusceptibility Protection : Avoids electric motor damages because of blades lock.
• Reverse Polarity Security : Defend against accidental reverse electrical wiring.
• Auto Reactivate : Restarts the fan instantly after power disturbances or blockages.
• PWM Control & Tach Outcome (Optional) : Enables exact rate control and real-time RPM surveillance, enabling dynamic thermal monitoring based upon real-time system needs.

These features not just enhance dependability yet also contribute to power effectiveness and clever system design.

Constructed for Toughness and Safety .

Built from UL 94V-0 thermal plastic , both the framework and impeller satisfy rigid flame-retardant requirements, guaranteeing secure and resilient efficiency in a wide variety of atmospheres.

• Running Temperature : -10 ° C to +70 ° C( 35%– 85% RH). * Storage Temperature : -40 ° C to +80 ° C( 35%– 85 % RH).

This wide temperature level resistance makes the fan suitable for whatever from chilled tools to outdoor units.

Precision Engineering for Easy Combination .

The DC axial fan’s structural style is optimized for easy integration right into existing systems. Placing measurements satisfy sector standards, with an 82.5 ± 0.3 mm hole-to-hole spacing and Ø4.4 mm screw holes for safe accessory. Lead wires extend 300mm ± 10mm , allowing versatile connection to source of power or control wiring.

Detailed mechanical drawings make sure problem-free style preparation and element alignment.

Regular Applications .

Thanks to its well balanced layout of airflow, stress, noise, and voltage flexibility, this DC aixal fan locates use in a large range of systems:.

• Industrial Automation Devices .
• Telecommunications Base Stations .
• Network Servers and Switches Over .
• 3D Printers and CNC Machines .
• AV Tools .
• cooling and heating Systems .
• Battery Packs and Inverters .
• Medical Instruments .
• Gaming Rigs and Compact Computers .

Its modular feature alternatives– PWM, FG, RD– enable engineers to set up the fan to their system’s specific demands, whether that’s rate regulation, fault detection, or fan condition surveillance.

Dependable Efficiency at an Affordable Expense .

This DC axial fan brings costs efficiency to a cost-efficient cooling option. The mix of several voltage choices, bearing types, and clever security attributes gives system developers the flexibility they need without overcomplicating the BOM (costs of materials).

Additionally, its long functional life, thanks to top notch bearings and tough building, suggests decreased upkeep prices and higher system uptime over the long term.

Conclusion .

The 92x92x25mm DC axial fan is a portable giant tailored for modern thermal administration demands. It’s developed for versatility, constructed for toughness, and tuned for quiet, high-performance air movement. Whether you’re developing consumer technology, industrial machinery, or embedded systems, this fan provides the airflow and dependability your application needs– without concession.

For designers, OEMs, and integrators trying to find a proven, quiet, and efficient cooling service throughout a series of voltage demands, this axial fan is a top-tier selection.
