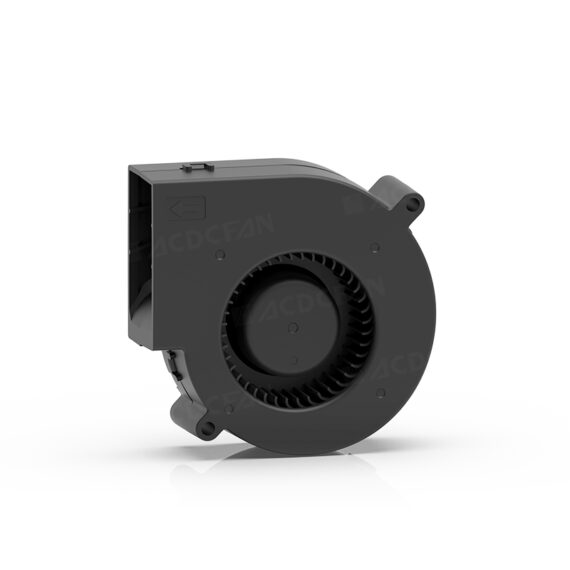

97x33mm DC Radial Fan Ball Bearing

Introducing a Premier Cooling Option: The 97x33mm High-Performance DC Radial Fan .

Worldwide of modern electronics and compact, high-power tools, reliable thermal monitoring is not just a suggestion– it is a critical necessity.

We offer a powerful air conditioning option crafted for efficiency, longevity, and adaptability: a 97x33mm DC Radial Fan. This DC radial fan is carefully developed to meet the strenuous demands of different applications, delivering high fixed pressure and constant air flow to make certain optimal operating temperature levels, also in one of the most challenging environments. From its robust building and construction to its advanced control functions, every facet of this DC radial fan is crafted to offer unmatched reliability and cooling effectiveness.

Engineered for Endurance and Reliability .

At the core of this DC radial fan’s remarkable sturdiness is its superior building and construction and option of materials. Both the DC radial fan framework and the impeller are made from top-quality Thermoplastic PBT (Polybutylene terephthalate), a product renowned for its mechanical stamina, thermal security, and resistance to use. This option makes certain the fan keeps its structural stability throughout a vast array of problems. Additional boosting its security and viability for use in sensitive electronic devices, the PBT product fulfills the UL 94V-0 flammability requirement, representing that it is self-extinguishing and supplies exceptional fire resistance.

The heart of any DC radial fan is its bearing system, which determines its life expectancy and acoustic homes. This version is equipped with a high-precision ball bearing system. Contrasted to traditional sleeve bearings, sphere bearings use considerably minimized rubbing, leading to a longer functional life, reduced noise output at higher rates, and the capacity to run perfectly in a larger range of temperature levels. This robust bearing system enables an outstanding life span of 70,000 hours when operating at 40 ° C, assuring years of trustworthy, maintenance-free performance.

This dependability is more emphasized by a wide functional temperature level variety, from a cold -30 ° C to a warm 70 ° C, making it a genuinely functional element for tools released in any type of environment. Regardless of its powerful efficiency, the DC radial fan preserves a moderate weight of just 168.3 grams, reducing its effect on the general weight of the host assembly.

Unmatched Air Movement and Stress Characteristics .

This DC radial fan is especially made to master applications where high fixed stress is required to push air through restrictive rooms, such as densely stuffed server shelfs, warm sinks, and complex ducting. The coming with efficiency graph plainly highlights the DC radial fan’s capacities across various functional rates, showing a healthy connection between air movement, gauged in cubic feet per min (CFM), and fixed pressure, gauged in millimeters of water (mmH2O).

The DC radial fan is offered in several performance rates to completely match system demands:.

• High-Speed Performance (4500 RPM): For maximum cooling in the most requiring scenarios, this variant delivers an effective maximum airflow of 26.14 CFM (0.74 m SIX/ minutes )and an excellent optimal fixed pressure of 26.39 mmH2O (1.04 INH2O). This level of pressure is suitable for getting rid of high system impedance and making sure critical parts remain amazing under heavy loads.
• Medium-Speed Efficiency (3500 RPM): Offering a strong balance between cooling power and acoustics, this variation offers a maximum air movement of 20.59 CFM (0.58 m TWO/ minutes )and a static pressure of 15.75 mmH2O (0.62 INH2O). It is an exceptional option for applications needing significant air conditioning with moderate noise degrees.
• Low-Speed Efficiency (2500 RPM): When peaceful operation is a priority, this model supplies a mild yet efficient air flow of 14.52 CFM (0.41 m TWO/ min) with a static pressure of 8.15 mmH2O (0.32 INH2O), making it suitable for workplace atmospheres or noise-sensitive tools.

This operational versatility enables system developers to pick the exact equilibrium of air movement, pressure, and acoustics their application needs.

Electrical Adaptability and Advanced Performance .

To guarantee seamless assimilation right into a wide range of digital systems, this DC radial fan is offered in both 12VDC and 24VDC nominal voltage variations. The vast operating voltage arrays– 6.0 to 13.5 V for the 12V versions and 18 to 26.5 V for the 24V designs– provide excellent stability and efficiency despite changes in the power supply.

Past common operation, the follower can be outfitted with a suite of innovative attributes for intelligent control, system surveillance, and self-protection.

Offered Speed Control Settings: .

• PWM (Pulse Width Modulation): This feature permits accurate, electronic control over the fan’s speed. By differing the responsibility cycle of a PWM signal, a system’s motherboard or fan controller can dynamically readjust the follower’s RPM in real-time, producing smart air conditioning accounts that ramp up under lots and reduce when still to save power and decrease sound.
• Other Control Options: For further adaptability, alternatives for Temperature level Control (TC), Voltage Control (VC), Constant Existing (CC), and Custom-made Rate (CS) are offered to satisfy specialized style needs.

Offered Signal Outcomes: .

• FG (Regularity Generator): This result signal offers real-time tachometer comments on the DC radial fan’s rotational rate, permitting the system to keep an eye on performance and confirm proper operation.
• RD (Turning Detector): This functions as a basic alarm system signal, transforming its state if the fan rotor ends up being secured, allowing the system to spot a fan failure and take ideal action.

Built-in Motor Defense: . To safeguard both the DC radial fan and the device it cools down, an extensive suite of electric motor protection circuits is available. These consist of Reverse Polarity Protection (RP), Soft Begin (SS) to decrease inrush present, Automobile Begin (AS) to try a restart after a clog is cleared, Present Restricting (CL), and Over Voltage Defense (OVP). These integrated safety functions make certain maximum integrity and avoid electric mistakes from creating devastating system damages.

Made for Easy Combination .

The design attracting gives in-depth dimensions to assist in simple style and installment. The DC radial fan’s outer dimensions are 97mm x 95.5 mm with a depth of 33mm. Standardized installing factors, consisting of 2 Ø4.3 mm openings, ensure it can be securely secured within a variety of enclosures. This focus to physical information streamlines the combination process, permitting engineers to incorporate this powerful air conditioning option into their designs easily.

To conclude, this 97x33mm DC radial fan is greater than just an element; it is a thorough, reliable, and very adaptable thermal management option. With its durable building, long-life ball bearing, powerful high-pressure airflow, and a host of advanced control and defense functions, it stands ready to protect your most useful digital properties. Whether for telecoms, server applications, clinical gadgets, or sophisticated commercial tools, this follower supplies the performance and assurance that modern-day innovation needs.
