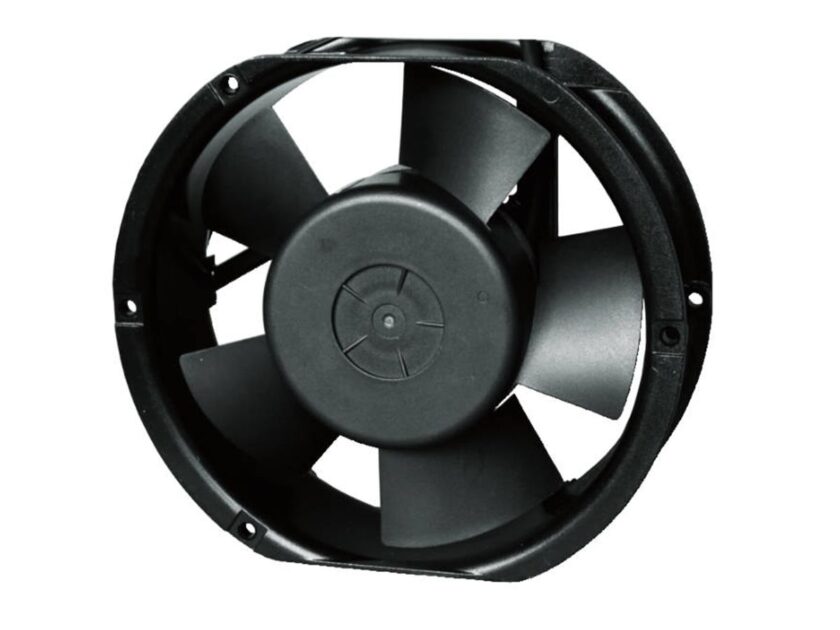

Cooling AC Axial Fan, 110V–380V, Ball/Sleeve

Item Introduction: Cooling AC Axial Fan (110V– 380V, Ball/Sleeve Bearing).

The AC axial fan is a high-performance air flow service created to supply remarkable airflow in a variety of industrial, industrial, and digital applications. Engineered for dependability, effectiveness, and versatility, this AC axial fan uses impressive performance across a wide voltage series of 110V to 380V and supports both sphere and sleeve bearing systems. Its maximized wind resistant layout, portable footprint, and low sound procedure make it a recommended selection for cooling down enclosures, panels, equipment, and power electronic devices.

Versatile Voltage Support .

This AC axial fan works with different voltage ratings consisting of 110V, 220V, and 380V AIR CONDITIONER. With assistance for both 50Hz and 60Hz regularities, it adapts easily to global electrical criteria, guaranteeing it can be integrated into varied systems with minimal alteration. Whether your installment atmosphere demands a lower voltage or a high-voltage supply, this fan gives seamless, risk-free, and reliable procedure.

High Air Flow Performance .

Created for optimum airflow, the follower delivers up to 210 CFM (cubic feet per min) , equivalent to approximately 5.9 cubic meters per minute , depending upon the input frequency and voltage. This durable air movement capacity makes sure effective air flow sought after problems, maintaining equipment at secure operating temperatures and extending component lifespan.

The air movement output varies a little depending upon the bearing system and the specific voltage/frequency mix:.

• At 110V, it offers between 180– 210 CFM .
• At 220V, in between 185– 200 CFM .
• At 380V, a regular 190– 200 CFM .

This efficiency makes it perfect for settings with heat-sensitive electronic devices, power cabinets, and industrial equipment where regular cooling is vital.

Trustworthy Bearing Equipments .

The AC axial fan is readily available with 2 birthing options: sleeve bearings and sphere bearings .

• Sleeve Bearings: Economical and quieter at low to modest rates, sleeve bearings appropriate for applications with horizontal installing and modest environmental anxiety. These are excellent for systems where noise reduction is a concern.
• Sphere Bearings: Created for longer functional life, greater toughness, and much better heat resistance, sphere bearings are optimum for applications with continual high-speed operation or where the fan may be mounted up and down. They supply outstanding integrity in much more requiring or vibration-prone environments.

Both options are made to high-grade requirements to ensure long life and consistent performance.

Durable and Effective Style .

The AC axial fan features a sturdy construction, with a black polycarbonate or aluminum housing engineered for maximum sturdiness and corrosion resistance. The wind resistant 5-blade layout enhances airflow efficiency while reducing disturbance and resonance. With overall measurements of 172 x 150 x 51.5 mm , it fits perfectly right into most standard AC axial fan intermediaries and units.

Trick style dimensions include:.

• Frame dimension: 172 mm (outer), 150 mm (inner).
• Deepness: 51.5 mm.
• Installing opening spacing: 162 mm.
• Placing holes: 4 × Ø4.3 mm.

This type aspect makes certain very easy assimilation with existing devices and offers compatibility with industry-standard placing systems.

Excellent Rate and Fixed Stress .

With rotational speeds ranging from 2500 to 2950 RPM , this AC axial fan makes certain regular air movement shipment in both low and high resistance settings. The AC axial fan likewise supplies exceptional fixed stress abilities, reaching up to 11.5 mmH ₂ O (0.45 InchH ₂ O) . This makes sure that air flow is preserved also when back stress exists from filters, grilles, or room restraints.

Fixed pressure information:.

• Minimum: 9.0 mmH two O (0.34 inH two O).
• Maximum: 11.5 mmH ₂ O (0.45 inH ₂ O).

This makes the AC axial fan reliable in systems where forced air should overcome resistance to flow via ducting or densely packed elements.

Quiet Procedure .

Noise levels for the AC axial fan stay in a low variety of 51 to 56 dBA , depending upon voltage, regularity, and bearing kind. Sphere bearing versions normally operate at 52– 56 dBA , while sleeve bearing versions supply slightly quieter procedure at 51– 56 dBA . The low-noise layout makes the follower appropriate for applications where acoustic performance is essential, such as in workplace tools, clinical gadgets, or control panels in populated workspaces.

Energy-Efficient Efficiency .

Power intake is optimized for power performance:.

• Input Power Array: 33– 43 watts.
• Existing Attract: 0.13– 0.63 A.

This modest power draw decreases effect on system sources and assists preserve energy-efficient procedure throughout different atmospheres and lots. The effective electric motor and aerodynamic blade design minimize energy waste while making sure high output, maintaining the overall price of ownership low.

Safe and Easy to Link .

Equipped with terminal-type 7.5 adapters , the AC axial fan sustains 18 AWG electrical wiring with a lead length of 280 ± 20 mm. This makes installation quick and reputable, also in tight spaces or intricate wiring atmospheres. Polarity markings and grounding options are clearly suggested on the real estate for security and appropriate procedure.

Applications .

Thanks to its durable construct, voltage adaptability, and efficient efficiency, this AC axial fan is excellent for a vast array of applications, consisting of:.

• Electric closet air conditioning.
• Industrial automation systems.
• UPS and inverter air flow.
• Power supplies and transformers.
• Medical and laboratory devices.
• cooling and heating systems.
• Telecoms enclosures.
• Home home appliance cooling.
• Commercial refrigeration.

Conclusion .

The Cooling AC axial fan with multi-voltage support and a choice of sphere or sleeve bearings uses a trustworthy, reliable, and quiet option for demanding thermal monitoring needs. Its solid airflow, compact size, and compatibility with worldwide power criteria make it a functional option for cooling down systems in a wide range of sectors. Whether you’re upgrading existing equipment or making a new unit, this AC axial fan offers the efficiency and sturdiness to fulfill your long-lasting cooling demands.
