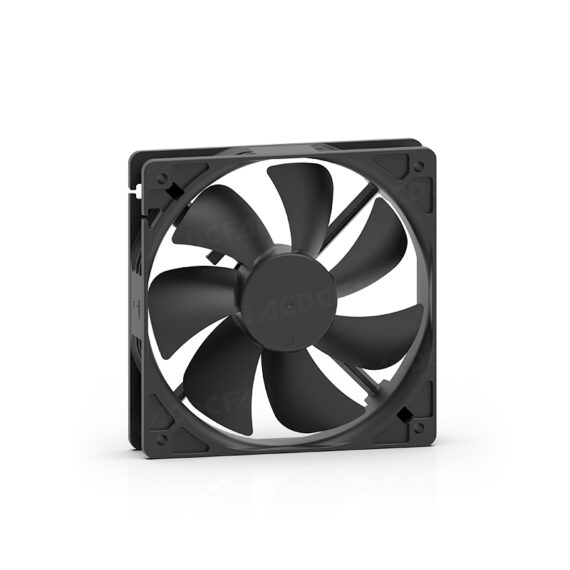

Brushless Cooling DC Axial Fan 120x120x25mm

Presenting a Versatile and Powerful Air Conditioning 120mm DC Axial Fan .

On the planet of contemporary electronic devices and commercial equipment, reliable thermal monitoring is not simply a referral– it is a critical requirement. As elements come to be more powerful and small, the warmth they create can weaken performance, reduce life expectancy, and bring about disastrous failings. This 120x120x25mm DC axial fan is crafted to fulfill this difficulty head-on, supplying a durable, trusted, and highly flexible cooling option for a large array of applications. Created for performance and constructed to last, it supplies a perfect balance of high air movement, considerable fixed stress, and customizable attributes to suit any kind of system’s one-of-a-kind requirements.

Unmatched Efficiency Across a Series Of Speeds .

At the core of this DC axial fan’s style is its capacity to relocate a significant volume of air, making certain that critical parts continue to be cool under pressure. To satisfy various cooling demands and acoustic preferences, the DC axial fan is available in three unique performance rates:.

• High-Speed Model (3500 RPM): For the most demanding applications where maximum cooling is vital, this variant provides a remarkable optimum airflow of 105.40 CFM (cubic feet per min), equivalent to 2.98 cubic meters per minute. This level of efficiency is perfect for largely stuffed web server racks, high-power commercial converters, and performance-critical systems that produce considerable warm tons.
• Medium-Speed Model (2500 RPM): Supplying a balanced blend of solid efficiency and modest acoustics, this design supplies a strong maximum air flow of 75.29 CFM (2.13 m ³/ minutes). It stands for a superb well-rounded selection for workstations, networking equipment, and general-purpose electronic devices that require even more cooling than a basic fan can provide.
• Low-Speed Version (2000 RPM): When silent procedure is a concern, this design delivers efficient cooling with a maximum air flow of 60.23 CFM (1.70 m ³/ min). With a noise level of simply 37.1 dB( A), it is flawlessly matched for office environments, home movie theater PCs, and other applications where acoustic disturbance should be decreased.

The partnership in between airflow and static stress is clearly highlighted in the DC axial fan’s performance contour. This chart demonstrates how the fan acts under load, revealing that even as resistance (impedance) enhances, it maintains solid air movement– an important attribute for pushing air with limiting heatsinks, filters, or framework.

Engineered for High Static Stress .

Past simply moving air, this fan succeeds at getting rid of resistance. Static stress is an action of a DC axial fan’s capacity to press air through barriers, and this model delivers exceptional ratings throughout its speed varies:.

• At 3500 RPM, it creates a powerful 7.77 mmH ₂ O of fixed pressure.
• At 2500 RPM, it keeps a strong 4.02 mmH ₂ O .
• At 2000 RPM, it produces a respectable 2.54 mmH ₂ O .

This high static stress ability makes certain that trendy air reaches its designated target, even in systems with high component density or obstructed airflow courses. It is the vital to efficiently cooling heatsinks with snugly loaded fins and requiring air through complicated chassis formats, making it an exceptional option over common airflow-focused fans.

Versatile Power and Voltage Options .

To make certain broad compatibility across different platforms and power requirements, this DC axial fan is readily available in 12V, 24V, and 48V DC setups. Each voltage alternative is created with a charitable operating variety, making sure steady efficiency despite minor power supply fluctuations.

As an example, the 12V version runs dependably from 6.0 V to 13.5 V, while the 48V version functions seamlessly between 36V and 54V. This adaptability streamlines system combination and improves operational reliability. Power consumption is optimized for efficiency, ranging from a low 1.92 W for the low-speed 48V model to an effective 7.2 W for the high-performance 12V and 24V variants.

Developed for Toughness and Longevity .

Reliability is engineered right into every facet of this DC axial fan. The frame and seven-blade impeller are built from Thermoplastic PBT (Polybutylene Terephthalate) , a durable material known for its high strength, heat resistance, and dimensional stability. Moreover, it fulfills the UL 94V-0 flammability conventional , a crucial security rating that makes certain the material will self-extinguish within secs if fired up.

To match varied functional demands, two high-quality bearing systems are offered:.

1. Double Round Bearing System: Using a phenomenal life span of 70,000 hours at 40 ° C, this choice is the gold criterion for toughness. It is developed for continual, 24/7 operation in mission-critical applications. Sphere bearings also make it possible for a bigger operating temperature range, from an icy -30 ° C to a warm 70 ° C , making the DC axial fan ideal for use in extreme commercial and outdoor environments.
2. Sleeve Bearing System: This provides an economical yet reliable remedy with a life span of 30,000 hours at 40 ° C. It runs efficiently and quietly within a temperature level range of -10 ° C to 55 ° C, making it an exceptional choice for customer electronic devices and common business applications.

Advanced Personalization and Control .

This DC axial fan can be tailored with a suite of sophisticated features to integrate seamlessly into intelligent systems:.

• Speed up Control: Options like PWM (Pulse Size Modulation) enable exact, vibrant speed control based on system demands, while Thermal Control (TC) makes it possible for the fan to automatically change its rate based on temperature level, maximizing cooling and acoustics.
• Signal Outcome: A Regularity Generator (FG) signal offers real-time tachometer responses on the DC axial fan’s rotational rate, and a Rotation Detector (RD) alarm can signal the system if the fan stops working, allowing for proactive upkeep.
• Motor Protection: Integrated security circuits defend against usual electrical problems, consisting of turn around polarity (RP) , over-voltage (OVP) , and current limiting, protecting both the fan and the host system.
• Environmental Solidifying: For deployment in severe conditions, the DC axial fan can be customized to an IP67 defense level . This score represents that it is completely sealed versus dust ingress and can stand up to short-term immersion in water, making sure reliability in dirty industrial setups or exterior rooms.

With its combination of powerful performance, durable building, and extensive personalization options, this 120x120x25mm DC axial fan stands as a premier solution for any type of cooling obstacle. Whether you are constructing a silent workstation, a high-performance web server, or sturdy industrial equipment, this DC axial fan offers the dependability and power you need to secure your financial investment and guarantee peak performance.
