Brushless Cooling DC Axial Fan for Cosistence

Engineered for Unwavering Uniformity: A Comprehensive Consider the Brushless DC Axial Fan .

Engineered for a large variety of applications where area is at a premium and performance can not be endangered, this DC axial fan supplies a masterclass in small, personalized, and constant air conditioning technology.

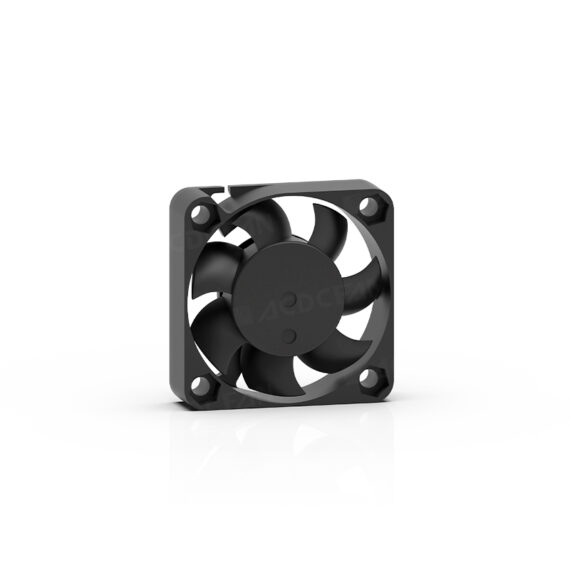

Gauging a plain 40x40x10mm, the DC axial fan is especially created for targeted cooling in space-constrained atmospheres such as networking devices, embedded systems, medical devices, and other high-density electronic enclosures.

Despite its small impact, this DC axial fan loads an exceptional combination of air flow, pressure, and advanced attributes, ensuring that important elements remain within their optimal operating temperatures. This comprehensive introduction will delve into the durable building and construction, functional performance designs, and sophisticated personalization options that make the DC axial fan an excellent selection for designers and designers looking for a dependable air conditioning option constructed for consistency.

Robust Building and Product Honesty .

The structure of the DC axial fan’s integrity hinges on its exceptional building and selection of products. Both the DC axial fan structure and the seven-blade impeller are crafted from high-grade Thermoplastic PBT (Polybutylene Terephthalate). This design polymer is renowned for its remarkable mechanical toughness, dimensional security, and resistance to warmth and chemicals.

An important feature for any kind of part intended for use in digital devices is its security ranking. The DC axial fan fulfills this requirement by utilizing PBT that is UL 94V-0 accredited. This is the highest level of fire retardancy for plastics, suggesting that the material will self-extinguish within 10 seconds of the flame resource being eliminated, offering an essential safety and security margin versus fire risks.

The whole assembly is meticulously made, as received the comprehensive engineering drawing. With a square structure of 40mm ± 0.3 mm and placing holes spaced 32mm ± 0.15 mm apart, it follows industry-standard dimensions for smooth assimilation right into a range of chassis and heatsink layouts. Evaluating simply 14.1 g, the follower includes minimal mass to the overall system, a crucial factor to consider for portable or weight-sensitive applications.

The Heart of Reliability: Bearing Equipments and Service Life .

Possibly the most crucial choice in specifying a DC axial fan for lasting, constant operation is the selection of bearing system. Recognizing that various applications have various needs for long life and ecological strength, the collection is readily available with two unique bearing options.

• Sleeve Bearing System: The sleeve bearing option supplies a trusted and cost-effective service for conventional applications. It is engineered for a substantial service life of 30,000 hours of constant procedure at 40 ° C. This bearing type is suitable for settings with a regulated operating temperature series of -10 ° C to 55 ° C. It offers silent operation, making it an excellent option for consumer electronic devices or office tools where acoustic efficiency is a consideration.
• Sphere Bearing System: For applications demanding miraculous in durability and functional robustness, the sphere bearing system is the exceptional selection. It dramatically expands the DC axial fan’s life span to a remarkable 70,000 hours at 40 ° C, more than doubling the lifespan of the sleeve bearing variant. This improved resilience guarantees regular performance over a lot longer duration, reducing maintenance cycles and overall cost of ownership. Additionally, the ball bearing system supports a dramatically larger operating temperature level array, from a freezing -30 ° C to a scorching 70 ° C, making it the ideal option for industrial controls, telecom equipment, and any kind of gadget deployed in harsh or unrestrained environments.

This choice permits designers to exactly match the DC axial fan’s specs to the item’s anticipated life process and operating problems, enhancing for both cost and consistency.

A Range of Performance: Thorough Version Specs .

The DC axial fan is not a one-size-fits-all option. It encompasses a series of designs tailored to various air conditioning needs and power budgets, mostly identified by operating voltage and speed. These designs are classified right into reduced (L), tool (M), and high (H) performance tiers.

• Low-Speed (L) Versions : Running at a speed of 6500 RPM, these followers are made for low-noise, energy-efficient applications. They generate a solid 7.24 CFM (cubic feet per minute) of airflow and a maximum fixed stress of 4.7 mmH two O, all while keeping a silent acoustic profile of just 28.6 dB( A). They are available in 5V and 12V versions.
• Medium-Speed (M) Designs : Representing a balance between performance and acoustics, the medium-speed designs operate at 7500 RPM. This increases the optimum air movement significantly to 10.22 CFM and the static stress to 5.76 mmH ₂ O. With a moderate noise degree of 30.5 dB( A), these DC axial fans are perfect for systems with modest warm tons that need an increase in cooling down power. They are readily available in 12V and 24V versions.
• High-Speed (H) Models : For the most requiring thermal difficulties, the high-speed versions supply optimal cooling power. Spinning at 8000 RPM, they generate an effective 11.29 CFM of air flow and a remarkable 6.49 mmH two O of fixed stress, capable of pressing air through dense fin heaps or limiting enclosures. The sound level is a sensible 33.4 dB( A) for the performance supplied. These models are readily available in 12V and 24V.

The coming with Air Efficiency graph aesthetically charts the partnership between air movement (CFM) and static pressure (mmH two O) for every of these speed rates. This P-Q contour is an essential tool for designers to establish the DC axial fan’s actual operating point within a given system insusceptibility, ensuring the chosen model will supply the called for cooling under real-world problems.

Advanced Personalization for Intelligent Solutions .

Beyond the core specifications, the DC axial fan can be outfitted with a host of sophisticated digital functions, changing it from an easy cooling component into a smart, integrated part of a bigger system. These offered features enhance defense, enable monitoring, and allow for specific control.

• Electric motor Security: A collection of integrated security circuits safeguards both the fan and the host device. These include Reverse Polarity (RP), Soft Start (SS) to lower inrush current, Auto Beginning (AS) to make certain the fan reactivates after a blades lock, Current Limit (CL), and Over Voltage Defense (OVP).
• Signal Result: For systems that call for active surveillance, signal outputs are available. The Frequency Generator (FG) or tachometer signal supplies a real-time rate outcome, while the Turning Detector (RD) offers an easy high/low signal to verify the fan is operational– a crucial attribute for fault-tolerant systems.
• Speed Control Settings: To accomplish vibrant air conditioning, the DC axial fan supports several rate control techniques. Pulse Width Inflection (PWM) is a common and extremely precise electronic method for controlling follower rate. Various other alternatives consist of Thermostatic Control (TC) for developing an autonomous, temperature-responsive cooling system, and analog Voltage Control (VC).

Final thought .

The DC axial fan stands as a testimony to thoughtful engineering, using a very dependable and regular air conditioning solution in a compact 40x40x10mm type element. Its robust PBT construction, double bearing choices for tailored long life, and a large array of performance versions make certain there is a perfect fit for nearly any type of application. The addition of advanced electric motor protection, signal outputs, and sophisticated rate control options raises it beyond a common follower, making it a smart element for smart digital systems.

For any designer or designer encountering thermal challenges in a portable layout, the DC axial fan provides the efficiency, resilience, and unwavering uniformity called for to make sure system integrity and a lengthy functional life.
