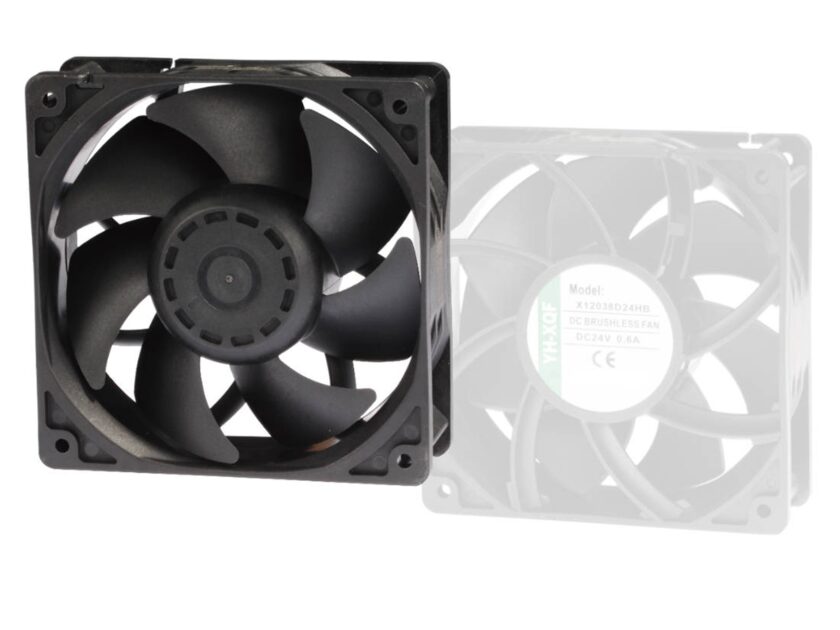

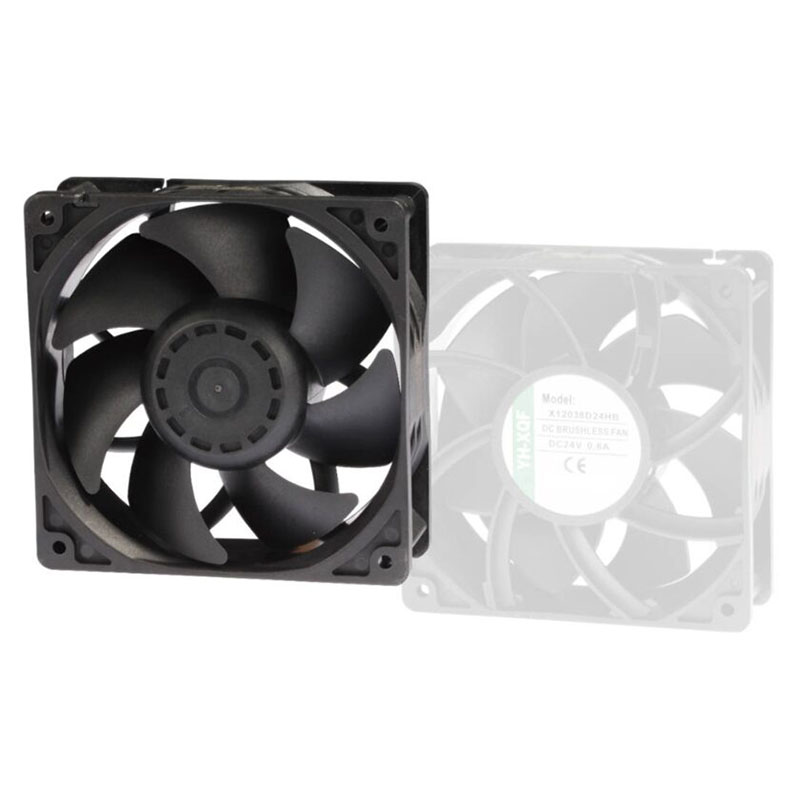

Brushless DC Axial Fan 120x38mm Ball Bearing

Uncompromising Cooling Performance: The 120x38mm High-Speed DC Axial Fan .

In the world of high-performance electronic devices and commercial machinery, effective thermal administration is not just a suggestion– it is an essential need. Warm is the opponent of performance, performance, and long life.

Introducing a powerful and robust air conditioning service crafted to satisfy the most demanding thermal difficulties: the 120x38mm Brushless High-Speed DC axial fan. Combining awesome airflow, high fixed pressure, and industrial-grade building, this DC axial fan is the definitive choice for applications where air conditioning can not be jeopardized. Available in numerous voltage and speed configurations, it supplies the versatility and reliability required to safeguard your useful parts and guarantee peak operational stability.

Engineered for Resilience and Precision .

A very first glance at this DC axial fan discloses a style focused on durability and functionality. Its construction and products have actually been very carefully selected to guarantee a lengthy and reliable service life, even under continual procedure in tough environments.

Robust Frame and Impeller Style: The DC axial fan is developed within a basic 120mm x 120mm square framework with a considerable density of 38mm. This larger deepness, compared to slimmer profile fans, is necessary for housing a more powerful motor and enabling a much more aggressive blade pitch, which are crucial to producing its outstanding air flow and static pressure.

The structure and the seven-bladed impeller are both constructed from high-grade Thermal Plastic that fulfills the UL 94V-0 flammability requirement. This ranking represents that the material is self-extinguishing, supplying an essential layer of fire safety for usage in confined, high-power systems. The entire unit weighs a strong 255 grams, a testament to its thick, quality building and construction and effective motor assembly.

Superior Double Round Bearing System: At the heart of this DC axial fan’s durability and efficiency is its twin round bearing system. Unlike sleeve bearings, which are prone to put on, lube evaporation, and efficiency destruction in high-heat settings, ball bearings use remarkable sturdiness and uniformity. This advanced bearing system makes certain a reduced friction coefficient, enabling greater rotational speeds and giving a substantially longer operational life expectancy.

In addition, DC axial fans furnished with sphere bearings can be installed in any alignment– flat, up and down, or at an angle– without affecting their performance or long life, offering maximum versatility throughout system assimilation.

Ease of Installation: The DC axial fan’s structure functions four basic mounting openings with a 4.5 mm diameter, placed 105mm apart, ensuring compatibility with a wide range of situations, rooms, and heatsinks. It comes outfitted with clearly significant positive (Red) and negative (Black) lead cables that are a charitable 500mm (50cm) in size, providing ample reach for clean cable monitoring and link to source of power, also in bigger server racks or industrial cabinets.

A Brand-new Benchmark in Air Flow and Static Stress .

The main feature of any type of fan is to move air, and this version excels in every metric. By offering several performance rates, it can be tailored to the precise cooling needs of your application, from silent efficiency to optimum cooling power.

Extreme Airflow for Rapid Warm Dissipation: This DC axial fan is a real powerhouse, efficient in moving a substantial quantity of air. At its highest performance tier, rotating at an unbelievable 5100 RPM, it generates an astonishing optimum airflow of 191.79 Cubic Feet per Min (CFM).

To place this right into viewpoint, it can change the whole quantity of air within a one-cubic-foot room over 190 times every min. This severe rate of air movement is crucial for applications that produce a huge quantity of ambient heat, such as largely packed server racks, networking storage rooms, and power-hungry crypto mining gears. Even at even more modest speeds of 3800 RPM and 3200 RPM, the DC axial fan delivers substantial air movement of 143 CFM and 121.55 CFM, specifically, supplying an equilibrium between solid efficiency and lowered acoustic result.

High Fixed Stress for Focused Cooling: Beyond raw air movement, the DC axial fan’s capacity to create high static pressure makes it distinctively matched for high-impedance applications. Fixed pressure is the action of a fan’s ability to press air versus resistance, such as via dense heatsink fins, dust filters, or restrictive chassis grills. This version generates an optimum static stress of approximately 24.44 mmH ₂ O (0.97 InchH TWO O) at its top speed.

This effective, concentrated pressure makes sure that great air reaches critical elements straight, instead of being deflected by obstacles. The consisted of P&Q (Stress vs. Airflow) contour shows this capacity throughout its functional range, allowing engineers to precisely match the DC axial fan’s efficiency to their system’s special insusceptibility for ideal cooling outcomes.

Reliable, Versatile, and Protected Electric Layout .

Underpinning the DC axial fan’s mechanical efficiency is a sophisticated and reputable brushless DC motor and electric system.

Versatile Voltage Options: . To make certain broad compatibility, the fan is readily available in 3 basic DC voltage ratings: 12V, 24V, and 48V. This versatility allows it to be incorporated into a substantial range of systems, from consumer-level PCs and custom-made projects (12V), to professional AV tools and automation systems (24V), all the way to telecoms and information facility facilities (48V). Each voltage version has a vast functional array (e.g., 7.0 V to 13.8 V for the 12V version), making the fan resistant to minor power supply fluctuations and making certain steady efficiency.

Efficient Brushless Electric Motor: . The brushless DC electric motor modern technology at its core supplies countless benefits over conventional combed electric motors. It operates with greater performance, transforming more electrical power into rotational pressure while generating less waste heat. The absence of brushes eliminates wear and tear, contributing substantially to the fan’s extended life expectancy and integrity while likewise lowering electrical noise.

Integrated Electric Motor Protection: . To protect both the DC axial fan and the system it shields, 2 crucial protection systems are built-in. Impedance Protection stops the electric motor from overheating and burning out if the blades are unintentionally obstructed from turning. Reverse Polarity Defense makes certain that no damages takes place if the favorable and unfavorable power leads are inadvertently switched throughout installment. These attributes make the fan remarkably robust and fail-safe.

Reputable in Any Environment .

Created for mission-critical applications, this DC axial fan is developed to run reliably across a vast range of environmental problems. It boasts a functional temperature array from -10 ° C to +70 ° C and a storage temperature range from -40 ° C to +80 ° C, ensuring it can execute in hot industrial setups and cold-start circumstances alike. This makes it an optimal cooling option for devices released in environments without climate control.

In conclusion, the 120x38mm Brushless High-Speed DC axial fan is greater than just a component; it is a financial investment in reliability. Via its powerful air flow, high static pressure, long lasting ball-bearing building, and durable electric defenses, it supplies uncompromising thermal efficiency.

Whether you are building a high-performance computing web server, developing commercial automation equipment, or updating an important network appliance, this DC axial fan gives the effective, focused, and dependable cooling needed to keep your systems running at their outright finest.
