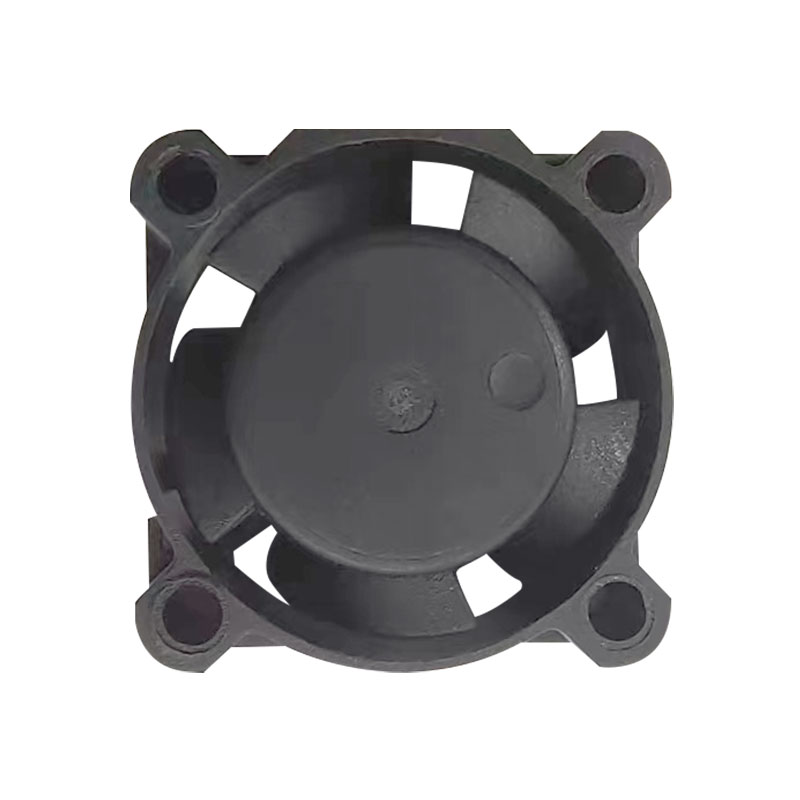

Brushless DC Axial Fan 25x25x10mm PWM Control

An Extensive Consider the 25x25x10mm Brushless DC Axial Fan with PWM Control .

In the ever-evolving landscape of electronic devices, effective thermal management is extremely important. As elements become more powerful and compact, the warm they produce positions a considerable difficulty to efficiency and long life. This 25x25x10mm brushless DC axial fan is crafted to satisfy these modern-day needs, providing a sophisticated, reputable, and very effective air conditioning service in a minimal impact. Its combination of exact control, resilient building, and a host of safety and tracking functions makes it a suitable selection for a substantial selection of applications where room is at a costs and performance is non-negotiable.

From densely stuffed server racks and networking devices to mobile electronic devices and cutting-edge 3D printers, the requirement for effective and intelligent cooling is universal. This DC axial fan is made to integrate perfectly into such settings, offering the necessary airflow to maintain ideal operating temperature levels for sensitive parts, consequently ensuring their security and expanding their functional lifespan.

Compact Style, Powerful Performance .

The most instant characteristic of this DC axial fan is its petite size. Determining just 25mm by 25mm with a slim 10mm profile, it is perfectly matched for applications where every millimeter counts. This portable kind element enables designers and designers to include active cooling right into increasingly smaller sized and extra complicated devices without significant redesigns or compromises in layout. Despite its small stature, this fan is designed to move a substantial quantity of air, making it an effective tool in the fight against heat. Its lightweight nature, at a plain 7.4 grams, even more improves its suitability for mobile and weight-sensitive applications.

The Heart of the Fan: Brushless DC Motor Innovation .

At its core, this DC axial fan makes use of a brushless DC (BLDC) electric motor, a technology renowned for its effectiveness, reliability, and peaceful operation. Unlike traditional combed motors, BLDC motors do not have mechanical brushes that wear out gradually. This lack of brushes eliminates a common factor of failure, substantially raising the DC axial fan’s total life-span and decreasing maintenance needs. The electronic commutation utilized in BLDC electric motors allows for more specific control over the motor’s speed and torque, resulting in better power performance and reduced operational sound.

The electric motor itself is consisted of a stationary stator with copper windings and a turning rotor that houses permanent magnets. An incorporated motherboard regulates the flow of power to the stator coils, producing a revolving electromagnetic field that interacts with the rotor’s magnets, causing it to rotate. This sophisticated style not just decreases mechanical rubbing yet likewise allows for the execution of advanced control and tracking attributes.

Precision Cooling with PWM Speed Control .

One of the standout features of this DC axial fan is its Pulse Width Inflection (PWM) speed control. PWM is an advanced technique that allows for exact and vibrant control over the follower’s rotational speed. Instead of just differing the voltage provided to the fan, which can be ineffective and lead to a limited control variety, PWM makes use of a digital signal of square wave pulses. By regulating the size of these pulses (the “duty cycle”), the fan’s speed can be readjusted with amazing precision.

This degree of control offers numerous vital benefits. It allows the cooling system to respond dynamically to the thermal load of the gadget it’s cooling down. As an example, the DC axial fan can be set to run at a lower rate during durations of low task, reducing noise and power usage. When the system’s temperature rises under hefty load, the fan speed can be seamlessly increased to offer optimal air conditioning. This intelligent strategy to cooling down not only makes certain that components are always operating within their secure temperature level restrictions however additionally contributes to a quieter customer experience and decreased power expenses.

Long lasting and Safe by Design: PBT Building And Construction .

The framework and impeller of this DC axial fan are created from Black PBT (Polybutylene Terephthalate) with a UL94V-0 rating. PBT is a high-performance design polycarbonate known for its superb mechanical stamina, thermal security, and electrical insulation buildings. This makes it a suitable material for digital parts, as it can withstand the rigors of continuous operation and direct exposure to warmth.

The UL94V-0 score is an important safety certification. It signifies that the material has gone through rigorous testing and has actually been discovered to be self-extinguishing within a brief duration after the removal of a fire source. This flame-retardant residential property is a critical security function, specifically in largely stuffed digital enclosures where the danger of fire, however little, must be reduced.

Versatility in Bearing Options .

Identifying that various applications have various requirements for durability, sound, and cost, this follower is readily available with an option of 3 bearing types: two-ball, sleeve, or hydraulic.

• Two-Ball Bearings: These are the gold requirement for high-reliability applications. They utilize tiny steel rounds to reduce rubbing, resulting in a long functional life-span, often exceeding 50,000 hours, and the capability to run properly at higher temperature levels and in any kind of positioning. The trade-off is generally a somewhat higher price and even more audible sound contrasted to various other bearing kinds.
• Sleeve Bearings: This is a much more cost-efficient alternative that makes use of a moisturized sleeve to support the DC axial fan shaft. They are understood for their quiet procedure, specifically at lower speeds. Nevertheless, they generally have a much shorter lifespan than round bearings and can be much more prone to put on, particularly if mounted in a straight orientation.
• Hydraulic Bearings: Supplying an equilibrium in between both, hydraulic bearings are a boosted variation of the sleeve bearing. They feature a larger, secured lube reservoir and usually have grooves to enhance circulation. This causes a much longer life expectancy and quieter operation than a conventional sleeve bearing, making it an excellent all-around choice for several applications.

Smart Features for Boosted Dependability .

Past its core components, this DC axial fan is outfitted with a collection of innovative functions created to safeguard the electric motor and provide essential system feedback.

Motor Security: .

• Reverse Polarity (RP): This safeguards the fan’s electronics from damage if the power supply wires are accidentally attached incorrectly.
• Auto Start (AS): This function makes certain that the follower will immediately try to reboot if its turning is restrained.
• Existing Source (CS) and Soft Start (SS): These features aid to handle the first present draw when the fan launches, stopping electrical stress on the system and making certain a smooth, steady ramp-up to full speed.

Signal Outcome: .

• Frequency Generator (FG): This attribute supplies a signal result, generally a square wave, with a frequency that is straight symmetrical to the fan’s rotational rate. This permits the host system to keep an eye on the follower’s performance in real-time and identify any discrepancies from the anticipated speed.
• Rotation Detector (RD/RD/b): This function serves as a security device by offering an easy high or low signal to show whether the follower is running or has quit. If the DC axial fan fails, the system can be signaled to take suitable action, such as shutting down to prevent getting too hot.

Strength in a Range of Environments .

This DC axial fan is designed to operate reliably across a wide variety of temperatures, from a freezing -10 ° C as much as 70 ° C, with a storage space temperature level range expanding from -40 ° C to 80 ° C. This broad functional window guarantees its suitability for use in varied ecological problems.

Moreover, the choice of an IP42 or IP55 access protection ranking adds another layer of resilience. An IP score denotes the degree of protection an enclosure anticipates the breach of strong things and liquids.

• IP42: This ranking shows security versus strong objects larger than 1mm and against up and down trickling water.
• IP55: This provides a greater degree of defense, symbolizing that DC axial fan is safeguarded versus dirt access and can hold up against low-pressure water jets from any kind of instructions. This makes it suitable for usage in atmospheres where it might be revealed to dirt or periodic moisture.

To conclude, this 25x25x10mm brushless DC axial fan is a highly versatile and technologically advanced cooling remedy. Its compact dimension, integrated with the accuracy of PWM control, the longevity of its PBT building, and the flexibility of multiple bearing options, makes it an effective tool for thermal monitoring in a wide range of digital applications. The incorporation of comprehensive electric motor security and signal outcome features additional enhances its integrity and allows for smart system assimilation. For any type of application where reliable, trusted, and small cooling is a requirement, this follower stands apart as an excellent selection.
