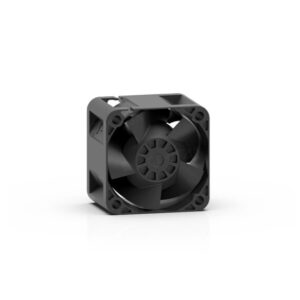

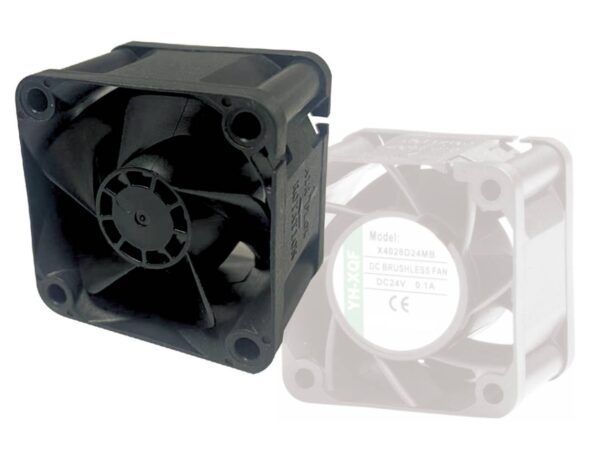

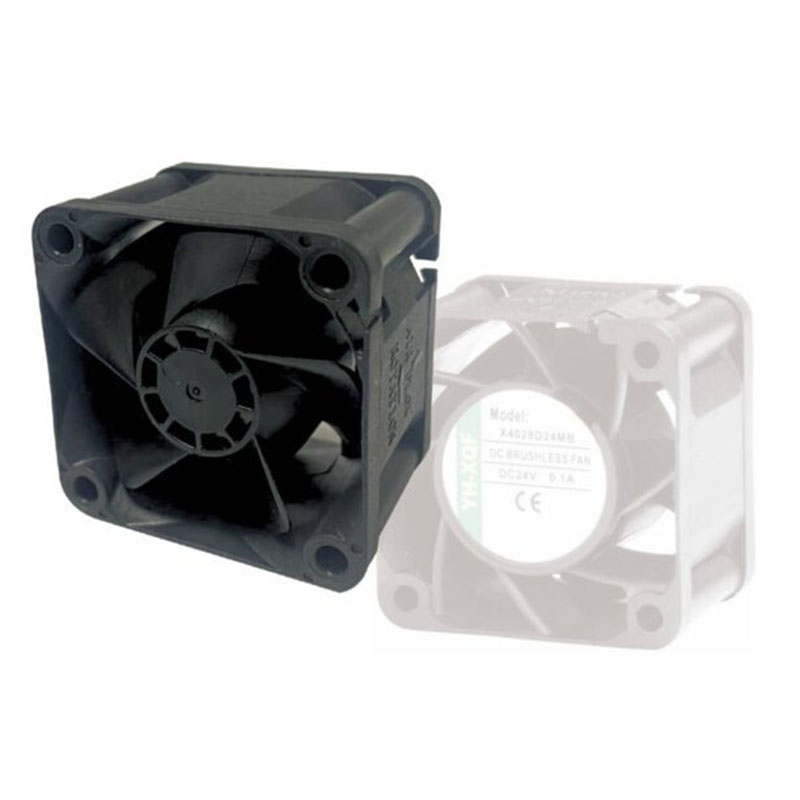

Brushless DC Axial Fan 40x28mm Ball Bearing

Unleashing Unprecedented Cooling Power: The 40x28mm Brushless DC Axial fan

In the world of innovative electronic devices and portable machinery, effective thermal management is not just a feature– it’s an essential necessity for performance, dependability, and long life. Presenting a really powerful cooling solution engineered for the most demanding settings: the 40x28mm Brushless DC Axial Fan.

This is not your basic element fan; it is a specific giant created to deliver a remarkable combination of high static stress and significant air movement within a compact, industry-standard footprint. Developed for applications where every millimeter of room and every degree of cooling counts, this DC axial fan series stands for the pinnacle of compact thermal design, using a durable and adaptable option for everything from high-density servers to accuracy industrial equipment.

The Scientific Research of Superior Performance: High Static Pressure and Air Flow .

The standout feature of this 40mm DC axial fan is its exceptional 28mm deepness. This boosted density, contrasted to conventional 10mm or 20mm fans, enables a more aggressive blade style and a more powerful motor, leading to the generation of incredibly high static stress. Static stress is the step of a fan’s capacity to push air against resistance. In numerous real-world applications, air movement is not unblocked; it is compelled with thick heatsink fins, limiting enclosures, dirt filters, or tightly loaded elements. This resistance, called system resistance, can provide low-pressure fans inadequate. This DC axial fan, however, masters these high-impedance scenarios.

As clearly shown by its efficiency contour, this DC axial fan keeps solid air movement even as backpressure boosts. With maximum fixed stress worths getting to a remarkable 36.71 mmH2O (or 1.47 inchH2O) on its highest-performing versions, it has actually the force required to guarantee cooling air gets to essential elements deep within an unit. This makes it an excellent option for 1U and 2U server framework, network switches, 3D printer hotend assemblies, and any kind of gadget where airflow paths are limited and convoluted. This raw power guarantees that thermal strangling comes to be a thing of the past, enabling your systems to operate at their peak desired performance.

A Range of Power: Tailored Efficiency for every single Application .

Recognizing that no single cooling requirement fits all, this DC axial fan is readily available in a wide array of efficiency rates, all focused around 12V and 24V DC systems. This versatility allows designers and system home builders to choose the excellent balance of airflow, stress, and acoustics for their details requirements.

• Ultra-High Performance Designs: For the most severe thermal challenges, the top-tier models spin at a blistering 30,000 RPM. These variants supply a huge optimum air movement of 41.51 CFM, a number usually related to much larger fans. This degree of performance is vital for overclocked systems, industrial control closets, and power-dense compute nodes where optimal warm dissipation is the main goal. The trade-off for this immense power is a higher noise degree, rated at 68 dBA, making it ideal for settings where acoustic performance is second to raw air conditioning capacity.
• Well Balanced High-Performance Versions: Supplying a compelling middle ground, the 20,000 RPM and 13,000 RPM models provide significant cooling down power with more moderate acoustics. The 20,000 RPM design, as an example, creates a strong 31.75 CFM of airflow, while the 13,000 RPM variation delivers a commendable 20.64 CFM with a considerably reduced sound degree of 42 dBA. These are outstanding all-rounders for business tools, telecom hardware, and high-performance embedded systems.
• Quiet and Reliable Versions: For applications where reduced noise is a vital layout parameter, such as in workplace equipment, medical tools, or home media web servers, the 8,000 RPM version is the excellent choice. It operates at a peaceful 36 dBA while still offering an effective 11.06 CFM of air movement and a static pressure of 11.06 mmH2O, greater than efficient in managing modest heat tons in noise-sensitive areas.

Engineered for Endurance: The Round Bearing Advantage .

At the heart of this DC axial fan’s reliability is its twin sphere bearing system. Unlike inferior sleeve bearings, which are prone to wear and lubricant degradation, round bearings supply a significantly longer operational life expectancy, superior efficiency at higher temperature levels, and the versatility to be placed in any kind of orientation– vertical, horizontal, or angled– without endangering longevity.

This durable bearing system makes sure regular, wobble-free performance over 10s of thousands of hours, decreasing upkeep cycles and enhancing the general integrity of the tool it cools. The building is similarly outstanding, including a framework and impeller made from premium thermal plastic with a UL 94V-0 flammability score. This requirements represents that the plastic is self-extinguishing in case of a fire, a vital safety and security attribute for any kind of electronic element.

Advanced Electrical Layout and Security .

Powered by a high-efficiency brushless DC electric motor, this DC axial fan uses fundamental advantages over older electric motor modern technologies, consisting of higher reliability, reduced electro-magnetic interference (EMI), and much more accurate control. To secure both the DC axial fan and the host system, it is crafted with essential motor defense. Reverse polarity protection stops damage if the power leads are inadvertently wired inaccurately, a straightforward error that could otherwise destroy the part. Moreover, impedance protection ensures the electric motor will not stress out if the rotor is stalled or blocked by an obstruction, instantly taking care of the present till the blockage is gotten rid of.

the DC axial fan series is designed to operate over a vast voltage array, ensuring steady efficiency even when the input power supply rises and fall. As an example, the 12V versions operate perfectly in between 7.0 V and 13.8 V, while the 24V versions run accurately from 14.0 V to 27.6 V. This functional resistance includes another layer of resilience to the system.

For advanced applications, this DC axial fan system can be set up with a suite of control and surveillance attributes, consisting of PWM speed control for vibrant, on-demand cooling, an FG (Tachometer) signal for reporting fan rate to a system controller, and an RD (Rotation Detector) alarm for instant failure notice– all necessary features for mission-critical systems.

In conclusion, the 40x28mm Brushless DC Axial fan is a masterclass in compact, high-performance thermal monitoring. It leverages its one-of-a-kind depth, progressed aerodynamic layout, and effective electric motor to deliver class-leading fixed pressure and airflow. With a long lasting double round bearing system, robust UL-rated building and construction, and a wide variety of performance versions available in both 12V and 24V, it offers the adaptability, power, and reliability required to fix the most difficult cooling challenges. For any type of engineer or designer seeking to push the borders of efficiency within a compact kind aspect, this DC axial fan is the conclusive selection.
