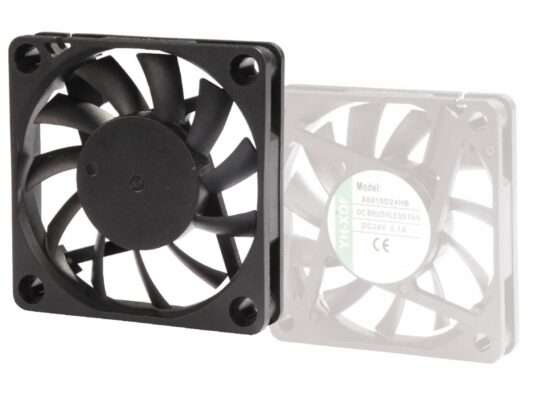

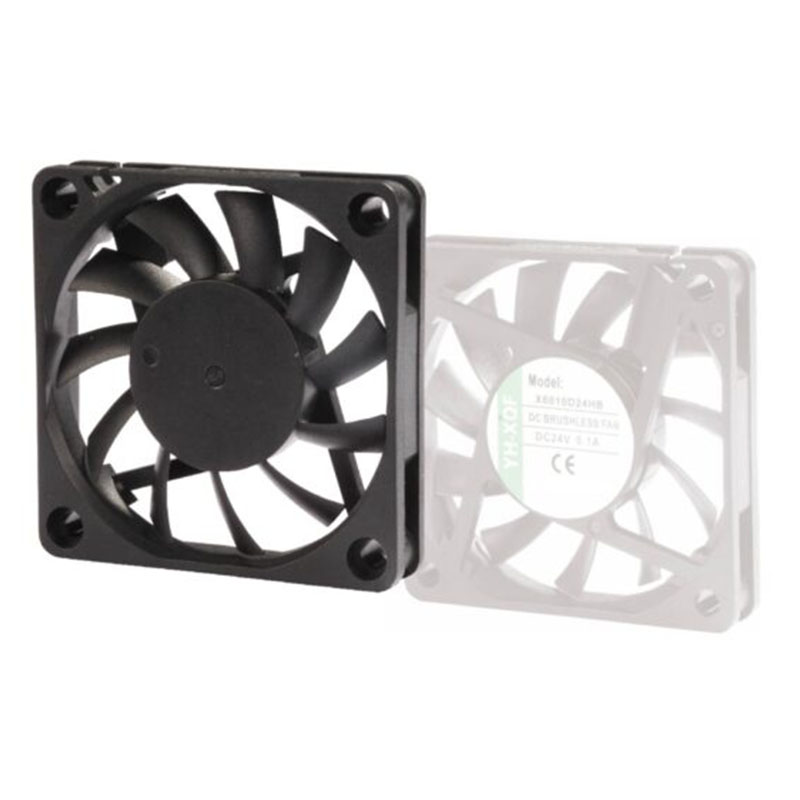

Brushless DC Axial Fan 60x60x10mm Ball Bearing

High-Performance Air Conditioning in a Compact Form: The 60x60x10mm Brushless DC Axial fan

In the ever-evolving landscape of electronics, where components become a lot more effective and portable, effective thermal administration is not just a suggestion but an essential need. This 60x60x10mm brushless DC axial fan becomes a premier solution, thoroughly engineered to supply robust and reputable cooling efficiency in a vast variety of applications.

From dynamic data centers to innovative customer electronics, this DC aixal fan is made to make sure optimum operating temperatures, thus boosting system long life and stability. Its portable dimensions, paired with a suite of advanced functions and durable building and construction, make it a vital element for any modern digital setting up.

Precision Design and Durable Building And Construction

At the heart of this DC aixal fan’s resilience and lasting performance is its top notch double sphere bearing system. Unlike standard sleeve bearings which can be susceptible to use and are usually restricted by their mounting alignment, ball bearings use considerably reduced rubbing and exceptional durability. This design allows the DC aixal fan to run continuously for extended periods, with some models rated for 50,000 hours or even more of constant usage.

Making use of sphere bearings additionally means the DC aixal fan can be mounted in any alignment– flat, vertically, or at an angle– without endangering its efficiency or life-span, an essential benefit in space-constrained and custom-made units.

the DC aixal fan’s frame and nine-blade impeller are created from top-quality thermal plastic that conforms to the UL 94V-0 flammability standard. This is the highest rating for plastics, symbolizing that the material will self-extinguish within 10 seconds after the fire resource is eliminated and will not create flaming leaks that could spark surrounding materials.

This flame-retardant home is a crucial safety attribute, specifically in applications where the DC aixal fan is in close closeness to heat-generating elements and electrical currents, offering comfort and ensuring compliance with rigid security policies.

The physical dimensions of the DC aixal fan are exactly controlled at 60x60mm with a slim profile of simply 10mm, as detailed in the technical illustration. The mounting openings are purposefully placed at a 50x50mm square, making certain easy combination right into basic devices formats.

Unpacking Performance: Air Flow, Fixed Stress, and Effectiveness

The key function of any type of DC axial fan is to relocate air, and this version masters this regard. The technical specifications disclose a series of performance capacities tailored to different functional demands.

Depending upon the particular version, the DC aixal fan can accomplish ranked rates from a peaceful 3000 RPM approximately an effective 8000 RPM. This high rotational rate translates directly right into outstanding air movement, determined in Cubic Feet per Minute (CFM). The offered models supply optimal airflow from roughly 10.34 CFM to a significant 16.92 CFM. This high quantity of air activity is important for dissipating heat from vital components.

Nevertheless, raw airflow is only part of the tale. In several real-world applications, the DC aixal fan must push air via barriers like warm sinks, filters, or largely packed components. This is where fixed stress comes to be extremely important. Fixed stress is the step of the DC aixal fan’s ability to get over resistance. this DC aixal fan series flaunts optimum static stress scores from 0.14 to 0.55 inchH2O, demonstrating its capacity to maintain reliable air conditioning even in high-impedance atmospheres.

The connection between airflow and fixed pressure is graphically represented in the P&Q (Pressure-Airflow) curve. This curve shows that as the resistance (static pressure) in the system enhances, the quantity of airflow the DC aixal fan can provide declines.

The “complimentary air” point on the far right of the curve shows the optimum air flow with zero fixed pressure, while the “shut off” factor on the far left suggests the optimal pressure the DC aixal fan can create with absolutely no air flow. Engineers can use this contour to establish the DC aixal fan’s real operating factor within a particular system, guaranteeing the chosen design will provide appropriate cooling under its intended lots.

Electric Characteristics and Protective Attributes

This DC axial fan is available in several voltage rankings– 5V, 12V, and 24V– making it functional for a vast array of electronic systems. The input power differs as necessary, from as low as 0.75 watts to 3.6 watts, permitting a balance between cooling efficiency and power consumption.

To secure both the DC aixal fan and the host device, the electric motor includes several defense systems. It is impedance safeguarded, a design where the electric motor windings have a higher impedance to restrict existing and stop overheating if the blades comes to be locked. Additionally, it features reverse polarity protection, which prevents damages to the DC aixal fan’s circuitry if the power leads are mistakenly connected improperly.

the DC aixal fan additionally comes furnished with an “Automobile Reactivate” feature. Need to the DC aixal fan’s blades be blocked and stall, this feature will instantly cut power to the electric motor and attempt to restart it periodically. This avoids the motor from wearing out and enables the DC aixal fan to return to operation once the blockage is cleared.

Advanced Control and Keeping An Eye On Options

For applications calling for extra advanced control and system monitoring, this DC aixal fan system offers several sophisticated signal alternatives, represented by the icons for FG, RD, and PWM.

• FG (Regularity Generator): This outcome signal gives real-time comments on the DC aixal fan’s rotational speed. It produces a square wave with a frequency symmetrical to the RPM, allowing a system controller to precisely keep track of fan efficiency and discover any type of variances from the anticipated speed.
• RD (Rotation Detector): The RD signal is a simpler alarm feature. It suggests whether the DC aixal fan is revolving or has actually quit. A toggling signal indicates the DC aixal fan is operational, while a steady state (high or reduced) represents a delayed or failed fan, allowing the system to activate an alert or take restorative activity.
• PWM (Pulse Size Modulation): The PWM feature enables specific digital control over the DC aixal fan’s rate. By regulating the duty cycle of a signal to the DC aixal fan’s fourth cord, the motor rate can be finely changed. This makes it possible for dynamic cooling, where the DC aixal fan runs silently at low rates throughout idle durations and increases to full power just when the thermal load boosts, optimizing both cooling efficiency and acoustics.

A Flexible Remedy for Modern Electronic Devices

Finally, this 60x60x10mm brushless DC axial fan is a highly flexible and dependable cooling remedy. Its robust round bearing building makes sure a lengthy functional life throughout a vast array of temperature levels (-10 ° C to +70 ° C) and in any kind of placing positioning. The mix of high air movement and solid fixed pressure makes it efficient in both open and limiting settings.

\With multiple voltage options, integrated electric motor security, and progressed control functions like PWM and speed sensing, the DC axial fan can be effortlessly integrated right into a myriad of applications. From network switches and web servers to medical tools and industrial controls, this DC aixal fan offers the performance, durability, and safety and security functions called for to keep important electronic components cool down, making certain the integrity and long life of the entire system.
