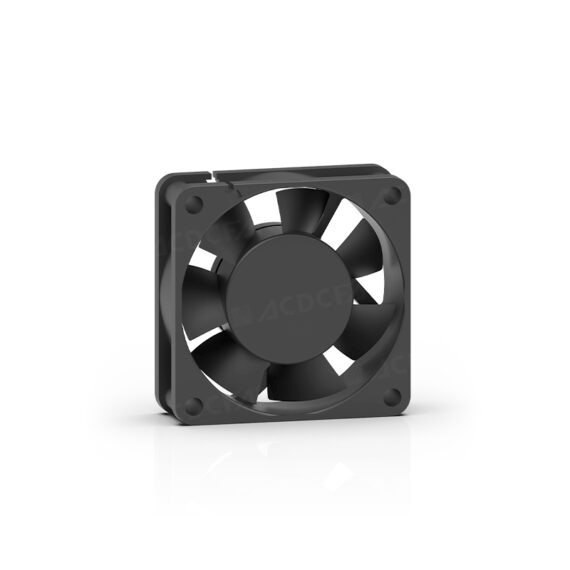

Brushless DC Axial Fan 60x60x20mm for CPU Cooling
This 60x60x20mm DC axial fan offers reliable cooling for CPUs and other electronics. Available in 5V, 12V, and 24V versions, it provides variable speeds up to 4700 RPM for excellent airflow. Choose between a long-lasting ball bearing or a quiet sleeve bearing to best suit your application’s needs.
In the ever-evolving landscape of high-performance computer, effective thermal management stands as a keystone of system stability, long life, and peak performance. As cpus come to be much more effective and small, the obstacle of dissipating warm successfully grows a lot more crucial. For system home builders, IT experts, and electronic devices enthusiasts that demand dependability and performance, the choice of a cooling DC axial fan is not a minor choice.
Answering this vital need is the Brushless DC Axial Fan Series , a thoroughly crafted 60x60x20mm cooling remedy designed to master demanding atmospheres, specifically for CPU cooling applications.
Uncompromising Performance at the Core .
The primary objective of a CPU fan is to relocate air, and the DC axial fan is developed to perform this job with remarkable performance. The relationship in between air movement and fixed stress is fundamental to a fan’s efficiency. Air flow, determined in Cubic Feet per Minute (CFM), suggests the volume of air a fan can relocate, while static pressure, gauged in millimeters of water (mmH2O), represents the DC axial fan’s ability to push that air through resistance, such as a dense heatsink fin stack.
The DC axial fan supplies a tiered efficiency structure to deal with various cooling needs, as illustrated by its air performance contour:.
- Low-Speed Designs (L): Operating at around 3500 RPM, they supply a considerable 17.83 CFM of air movement. This degree is ideal for conventional computing jobs, offering a perfect balance in between effective cooling and whisper-quiet procedure, with a noise degree of simply 27.9 dB( A).
- Medium-Speed Versions (M): Stepping up to 4300 RPM, the medium-speed variations such as the DC axial fan push the efficiency envelope further, creating 21.81 CFM and a greater static pressure of 5.3 mmH2O. This makes them suitable for mid-range gaming rigs and workstations where thermal lots are a lot more significant.
- High-Speed Models (H): For the most requiring situations, such as overclocked cpus or portable, airflow-restricted server environments, the high-speed models are the best choice. Spinning at 4700 RPM, the fan flaunts an excellent optimum air flow of 24.91 CFM and a durable fixed pressure of 6.2 mmH2O, making sure that warmth is efficiently wicked far from the CPU even under one of the most intense handling lots.
This range of alternatives enables home builders to select the exact level of performance needed, maximizing for either near-silence or optimum cooling power.
Engineered for Endurance and Dependability .
A CPU cooling DC axial fan must be greater than just effective; it must be durable sufficient to operate accurately for several years. The DC axial fan is created from premium materials to make certain a long and reliable service life. Both the fan structure and the seven-blade impeller are crafted from Thermoplastic PBT (Polybutylene Terephthalate) with a UL 94V-0 flammability score . This material is not only rigid and resilient, decreasing resonance and wear, yet its self-extinguishing residential or commercial properties give a vital layer of security within any kind of electronic system.
The reliability of a fan is most directly linked to its bearing system. The DC axial fan offers 2 unique choices to match different functional demands:.
- Ball Bearing System: The premium choice for durability and resilience. Sphere bearings use a dramatically longer service life, rated for an exceptional 70,000 hours of procedure at 40 ° C. They also support a broader operating temperature level variety, from an icy -30 ° C to a hot 70 ° C, making them the superior alternative for high-end workstations, web servers, and any system that will certainly experience continuous, 24/7 procedure.
- Sleeve Bearing System: A reliable and affordable choice for typical applications. The sleeve bearing variant offers a respectable life span of 30,000 hours at 40 ° C and an operating temperature series of -10 ° C to 55 ° C. This makes it an ideal suitable for desktop PCs and other systems with even more standard usage patterns.
Intelligent Control and Advanced Customization .
Modern computer systems require smart components that can integrate effortlessly and supply vital responses. The DC axial fan excels in this location by supplying a thorough collection of optional functions that transform it from a straightforward fan into a clever, self-monitoring part.
Advanced Rate Control Modes: . Dynamic rate control is vital for modern CPU cooling, permitting the system to remain quiet throughout still or low-load periods and ramp up cooling down power when needed. The collection can be customized with several control settings:.
- PWM (Pulse Width Inflection): The market criterion for specific follower control. This enables the motherboard to dynamically change the DC axial fan’s rate based on real-time CPU temperature level readings, attaining the ideal stability in between efficiency and acoustics.
- TC (Thermal Control): An autonomous control approach where an onboard thermistor automatically readjusts the DC axial fan’s speed based on the ambient temperature around the fan itself.
Vital Signal Results for System Surveillance: . For mission-critical systems, knowing the DC axial fan is functional is paramount. The collection can be equipped with numerous signal results:.
- FG (Regularity Generator): Also called a tachometer signal, this output reports the DC axial fan’s rotational speed to the motherboard or fan controller. This comments is essential for system health tracking, enabling software program to verify the fan is performing at the expected speed and to alert the individual if it falls short.
- RD (Rotation Detector): This gives a less complex alarm system signal that shows whether the fan is turning or has quit, providing a critical secure device.
Robust Motor Security: . To guarantee a lengthy lifespan and shield both the fan and the host system, a collection of motor defense functions can be incorporated:.
- Reverse Polarity Defense: Safeguards the fan’s electronics from damages if power and ground cables are mistakenly swapped throughout installment.
- Soft Beginning (SS) and Auto Begin (AS): Makes sure the fan spins up efficiently, decreasing first motor tension and electric in-rush present.
- Over Voltage Security (OVP): Secures the DC axial fan from potentially destructive voltage spikes.
By providing this substantial range of personalized attributes, the DC axial fan provides a versatile and intelligent cooling solution that can be customized to the particular needs of any kind of innovative computer system. From a peaceful HTPC to a high-availability web server, this fan has the abilities to deliver clever, reliable, and effective cooling.
