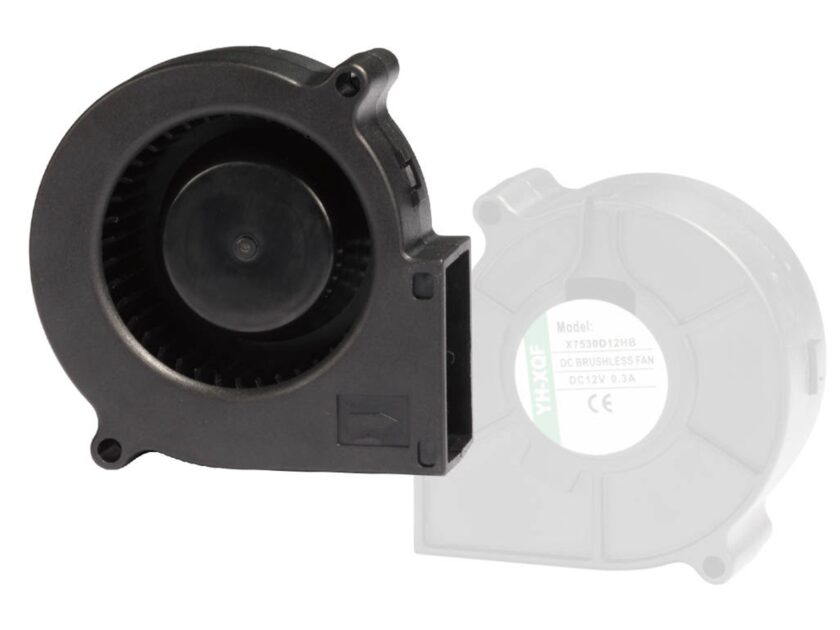

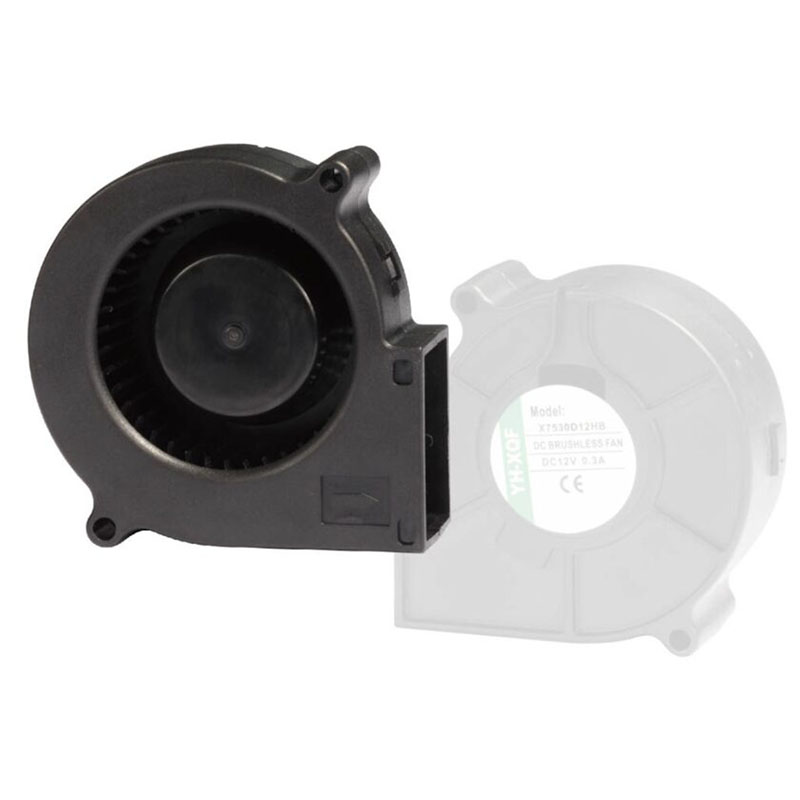

Cooling Brushless DC Blower Fan 75mmx75mmx30mm

Unleashing Focused Air Conditioning Power: A Deep Study the 75x75x30mm Brushless DC Blower Fan .

In the world of modern-day electronics and precision machinery, reliable thermal monitoring is not simply a recommendation; it is a basic requirement for performance, reliability, and long life. As parts become a lot more effective and compact, the difficulty of dissipating heat successfully grows even more intense.

This 75x75x30mm Brushless DC blower fanis crafted to satisfy this challenge head-on, supplying a powerful, concentrated stream of air precisely where it’s required most. Its innovative layout, robust building and construction, and functional efficiency options make it an important component for a large series of applications, from advanced 3D printers and densely jam-packed electronics to ingenious do it yourself jobs.

The DC blower fan Advantage: High Pressure for Demanding Settings .

Unlike traditional axial fans that move large quantities of air with reduced pressure, this device is a centrifugal or “blower” style fan. This design ingests air through its main consumption and accelerates it outwards at a 90-degree angle with a specifically shaped exhaust port.

The main benefit of this setup is its capability to produce considerably greater static pressure. This makes it remarkably reliable at conquering the resistance, or impedance, located in settings with restricted airflow. It can push air through heatsinks with densely packed fins, aerate securely sealed rooms, and navigate the complicated interior pathways of modern electronic devices, guaranteeing that cooling is not compromised by physical constraints.

The efficiency characteristics are clearly highlighted in the offered P&Q (Stress and Air flow) curve. This graph showcases the fan’s capabilities across different functional rates, normally readily available in 3600, 4200, and 4800 RPM versions. At the top end, the high-speed model can generate an impressive optimum fixed pressure of 22.19 mmH ₂ O while delivering a maximum air movement of 16.19 CFM (Cubic Feet per Minute).

This level of performance is excellent for mission-critical applications where maximum heat dissipation is vital. For applications where acoustics are a better worry, the lower-speed version supplies a quieter procedure at simply 38 dBA while still providing a significant 11.11 CFM of airflow and 14.64 mmH two O of static pressure. This permits designers and designers to pick the perfect equilibrium of cooling down power, energy intake, and noise for their certain job.

Robust Construction for Unwavering Dependability .

Dependability begins with top quality building. Both the structure and the impeller of this DC blower fan are crafted from a top-quality Thermal Plastic that meets the UL 94V-0 flammability standard. This is a critical safety feature, representing that the product is self-extinguishing and will not proliferate a flame in the event of a fire, making it a risk-free choice for assimilation into customer and industrial electronic devices.

At the heart of the DC blower fan’s revolving setting up is its bearing system, a vital component of its life-span and performance profile. This DC blower fan is offered with various bearing options to suit different requirements. The costs double sphere bearing system provides an exceptional functional life expectancy, premium efficiency at higher temperature levels, and the capacity to be installed in any type of orientation without influencing durability.

This makes it the best option for 24/7 procedure and in harsh environments. For much less demanding or more cost-sensitive applications, a sleeve bearing alternative supplies quieter procedure at lower speeds. This adaptability makes certain that you can specify the appropriate fan for the job without compromise.

In spite of its powerful result, the DC blower fan preserves a lightweight account, weighing in at just 65 grams. Its portable measurements, precisely detailed in the mechanical drawings at 75.7 x 75.7 mm with a depth of 30 mm, allow for easy combination into space-constrained designs. The purposefully placed placing holes ensure a protected fit, while the 300mm lead wires supply sufficient size for attaching to a power source or controller board.

Versatile Electric Style and Integrated Safeguards .

This DC blower fan is designed for broad compatibility, available in several rated voltages consisting of 5V, 12V, and 24V DC. This enables it to be powered by every little thing from a simple USB port to the typical power products discovered in computer systems, servers, and commercial control systems. Furthermore, each model features a wide functional voltage range. For example, the 12V variation can operate accurately between 7.0 V and 13.8 V, supplying regular performance despite having minor power supply changes.

To shield both the DC blower fan and the host gadget, the motor includes crucial defense wiring. Reverse polarity defense prevents damage if the positive and negative leads are inadvertently swapped during setup– a basic error that could otherwise damage the follower’s electronics.

Additionally, resistance security ensures that the motor will not wear out if the impeller is delayed or prevented from spinning, whether by a foreign things or system failure. Several versions also consist of an auto-restart feature, which will instantly try to reactivate the DC blower fan once the blockage is cleared, improving the system’s overall dependability without hands-on treatment.

For applications calling for intelligent thermal management, this follower can be furnished with sophisticated control and surveillance features. PWM (Pulse Width Inflection) speed control allows a motherboard or microcontroller to dynamically adjust the follower’s RPM in real-time based on temperature level sensing unit information. This produces a wise cooling system that runs strongly when required and reduces to a whisper-quiet state when the system is idle, optimizing both cooling down and acoustics.

Optional FG (Regularity Generator) and RD (Turning Detection) signal results are likewise available, offering essential feedback to the host system. The FG signal reports the follower’s real rotational rate, while the RD signal supplies a basic alert if the fan blades has secured, making it possible for the system to discover a cooling failing and take suitable action.

Limitless Applications .

The distinct mix of high static stress, a compact type aspect, and durable design makes this 75mm DC blower fan a versatile remedy for many applications, consisting of:.

• 3D Printing: A vital upgrade for component cooling, offering a focused jet of air to instantly strengthen extruded filament, resulting in cleaner prints, sharper information, and remarkable overhang and bridge performance.
• Electronic Devices and Room cooling: Perfect for ventilating server racks, networking switches, home movie theater PC (HTPC) situations, and other largely stuffed electronic enclosures where air movement is limited.
• Area Air Conditioning: Ideal for guiding air onto certain high-temperature parts like CPUs, GPUs, FPGAs, stepper electric motor vehicle drivers, and voltage regulators.
• DIY Projects: A favorite among hobbyists for developing personalized air conditioning options for Raspberry Specialty clusters, robotics, custom-made computer system develops, and extra.
• Commercial and Industrial Devices: Ideal for use in a range of machines that require energetic cooling, such as LED lights systems, clinical tools, and air purification units.

In conclusion, this 75x75x30mm DC blower fan is greater than just an element; it is an extensive cooling solution. By combining the high-pressure performance of a centrifugal design with resilient, safety-rated products and a collection of flexible electrical choices and protections, it supplies the dependability and power required to keep your most vital projects running great and secure.
