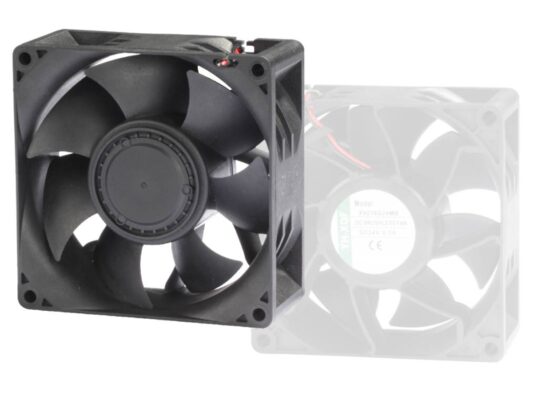

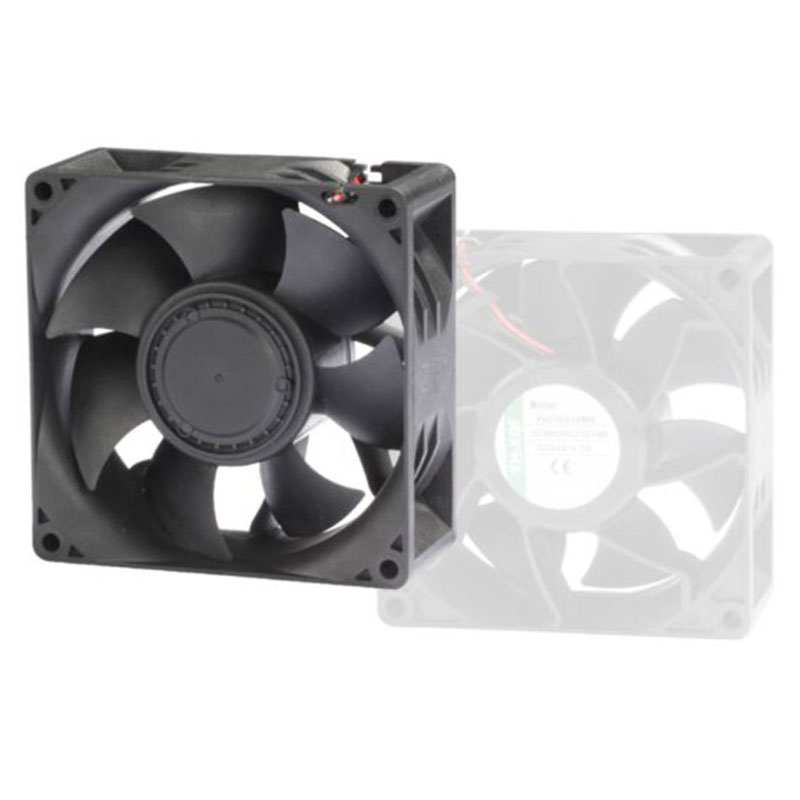

DC Axial Fan Ball Bearing 92x38mm High Speed

Presenting a New Requirement in High-Performance Cooling: The 92x38mm DC Axial Fan .

Worldwide of modern electronic devices and commercial equipment, reliable thermal management is not just a referral; it is a basic requirement for dependability, performance, and durability. As elements become much more effective and chassis styles come to be extra compact, the demand for cooling services that provide high performance in constricted spaces has actually never been higher.

This 92x38mm high-speed DC axial fan is crafted to satisfy and surpass these demanding needs, using an effective, durable, and remarkably trusted remedy for the most tough thermal environments. Created for engineers and system integrators that can not pay for to endanger on top quality, this DC axial fan collection gives a perfect blend of raw power, advanced attributes, and long-life durability.

Uncompromising Air Movement and Fixed Pressure .

The main function of any type of DC axial fan is to move air, and this 92x38mm fan excels at this task with remarkable force. The DC axial fan offers a broad range of efficiency levels, efficient in producing an optimum airflow of up to an unbelievable 137.1 cubic feet per min (CFM) . This level of air flow is important for applications producing significant heat, making it possible for rapid flow and the swift removal of thermal accumulation from essential parts like CPUs, FPGAs, and high-power amplifiers. By guaranteeing components operate within their optimum temperature variety, this fan straight adds to system stability and prevents premature failure.

However, raw airflow is only half the story. In lots of real-world applications, air does not have a clear, unhampered course. It must be forced with thick heatsinks, tightly packed web server blades, complicated inner framework, and fine-mesh filters. These blockages develop resistance, or impedance, which can dramatically reduce the performance of a lower fan.

This is where static stress becomes extremely important. This DC axial fan is built to overcome such challenges, creating a powerful maximum fixed pressure of up to 1.28 inchH ₂ O (or 32.3 mmH two O) . This high-pressure capacity makes sure that a regular and powerful stream of air reaches the best elements, also in high-impedance systems where other fans would stall or fall short to provide ample cooling.

The performance qualities are clearly shown in the DC axial fan’s P&Q (Stress vs. Air movement) contour, which showcases versions running at various speeds, consisting of 3500, 4200, 5500, and an ultra-high 6800 RPM. This enables developers the adaptability to choose the specific efficiency point that balances the air conditioning requirements of their system with acoustic and power intake targets. Whether the priority is maximum cooling down power for an overclocked server or quieter, yet still significant, air movement for a workplace environment tool, this series supplies a customized remedy.

Engineered for Extreme Toughness and Reliability .

Performance is worthless without dependability. This DC axial fan is carefully built to supply a long and dependable functional life, also under continual, 24/7 procedure. At the core of its layout is a high-grade double round bearing system . Unlike inferior sleeve bearings that are prone to lubricating substance leak and wear, dual round bearings supply lower friction, higher accuracy, and a considerably longer life expectancy. They are additionally far more durable to heats, making them the ideal selection for hot-running industrial devices and largely jam-packed information facility hardware.

The physical building of the fan is similarly robust. Both the framework and the seven-blade impeller are made from a high-grade Thermal Plastic certified to the UL 94V-0 flammability conventional . This material not just offers superb structural rigidity and dimensional stability across a vast temperature range however additionally makes certain that the fan will not contribute to the spread of fire, a critical safety demand for any kind of electronic tool.

To better safeguard the fan and the host system, advanced electric motor defense circuits are integrated straight right into the fan’s electronic devices. Insusceptibility security makes certain that if the fan blades are literally blocked or delayed, the electric motor will not burn out from overcurrent. Furthermore, turn around polarity security protects against catastrophic failing if the power leads are mistakenly linked inaccurately during installation– a straightforward mistake that might otherwise destroy the fan’s control wiring.

With a broad operating temperature level array from -10 ° C to 70 ° C and a storage variety of -40 ° C to 80 ° C, this fan is developed to hold up against implementation in basically any interior environment.

Adaptability for Advanced System Integration .

Identifying that contemporary systems require more than just brute-force air conditioning, this fan series is available with a suite of advanced features and options to help with smart system assimilation. The fan is available in three common DC voltage ratings– 12V, 24V, and 48V — making it directly suitable with the power systems utilized in networking, telecoms, industrial automation, and web server applications.

For systems that need active fan surveillance and management, a number of control and feedback choices are readily available:.

• Vehicle Restart: This vital function guarantees that if the motor is temporarily delayed by an obstruction, it will automatically try to restart when the blockage is cleared, bring back air conditioning without manual treatment.
• Frequency Generator (FG)/ Tachometer Output: This third-wire signal offers real-time feedback on the fan’s rotational speed. A system controller can check this signal to validate that the fan is operating as expected, raising a sharp if the fan reduces or fails.
• Turning Detector (RD)/ Secured Rotor Alarm System: This alarm system signal supplies a straightforward high/low logic state to suggest whether the fan is turning or has quit entirely. This is essential for mission-critical systems where a prompt response to fan failure is needed.
• Pulse Width Inflection (PWM) Speed Control: The four-wire PWM variation enables precise, vibrant control over the fan’s rate. By regulating the responsibility cycle of the PWM signal, a system’s motherboard or controller can adjust air flow in real-time based upon thermal sensing unit analyses. This enables the creation of “clever” air conditioning accounts that increase fan speed just when required, substantially decreasing typical power consumption and reducing acoustic noise during periods of reduced load.

With its conventional 92x92mm structure, 38mm deepness, and 82.5 mm placing hole pattern, this DC axial fan serves as a drop-in replacement for existing equipment or a simple component for new styles. Considering just 190 grams and outfitted with 250mm lead wires, installation is straightforward and effective. This combination of effective performance, sturdy construction, and advanced control attributes makes this 92x38mm DC axial fan the supreme cooling service for demanding applications where failing is not an alternative.
