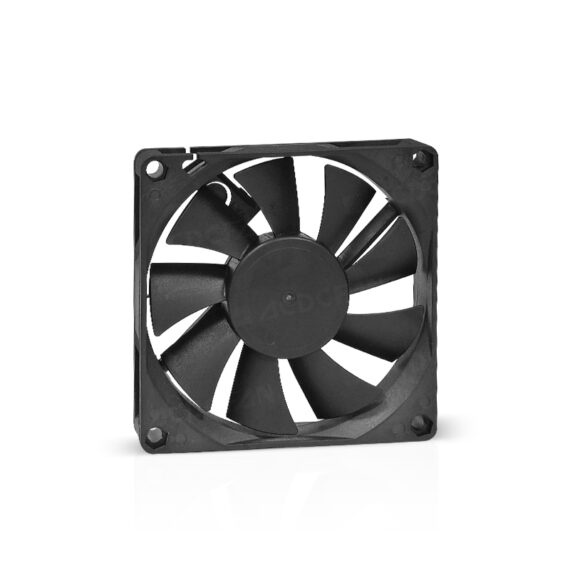

DC Axial Fan Brushless Cooling 80x80x15mm

The Heart of Cooling: A Deep Study the DC Axial Fan Brushless Cooling 80x80x15mm

On the planet of electronics, where efficiency is perpetually pressing the limits of warmth generation, effective thermal monitoring is not simply a high-end– it is an absolute requirement. At the forefront of this important job are cooling DC axial fans, the unhonored heroes that ensure the durability and integrity of many tools.

Amongst the myriad of options readily available, the DC Axial Fan Brushless Cooling 80x80x15mm, stands out as a versatile and robust service designed to fulfill the demanding cooling needs of modern electronic devices. This thorough product intro will delve into the intricate details of the DC axial fan, discovering its building and construction, efficiency attributes, and the design excellence that makes it a superior choice for a wide variety of applications.

Engineered for Toughness and Efficiency: A Look at the Building and construction .

The structure of any high-quality fan hinges on its building and construction materials and design. The DC axial fan is meticulously crafted to supply remarkable performance and a long operational life. Both the fDC axial fan structure and the impeller are built from Thermoplastic PBT (Polybutylene Terephthalate) with a UL 94V-0 flammability ranking . This product is passed by chance; PBT is a high-performance engineering polymer renowned for its outstanding mechanical toughness, dimensional security, and resistance to warm and chemicals.

The UL 94V-0 rating is a critical safety feature, suggesting that the product will self-extinguish within 10 seconds after the fire is gotten rid of and will not produce flaming drips that might fire up bordering components. This makes the DC axial fan a secure and reliable option for usage in delicate electronic settings where fire safety and security is a critical worry.

The brushless DC electric motor at the core of the DC axial fan is a testimony to contemporary design. Unlike their brushed counterparts, brushless motors use significantly higher efficiency, lower noise degrees, and a lot longer life-span due to the absence of brushes that break in time. This intrinsic integrity is even more improved by the option of bearing systems available for the fan collection: sphere bearings and sleeve bearings .

The selection in between these 2 bearing types allows for a customized technique to details application demands. Round bearings , as the name suggests, use small steel or ceramic rounds to decrease rubbing between the revolving and stationary components. This layout causes a dramatically longer life span, with the fan’s ball bearing variation boasting an impressive 70,000 hours of procedure at 40 ° C . Round birthing DC axial fan are likewise more versatile in their mounting orientation, able to run successfully whether installed flat, vertically, or at an angle. This makes them the excellent choice for high-performance applications and environments where durability and integrity are essential.

On the other hand, sleeve bearings use a simpler system where the shaft revolves within an oiled sleeve. This layout causes quieter procedure, particularly at reduced speeds, and is a more economical option. The sleeve bearing variation of the GD8015 supplies a reputable life span of 30,000 hours at 40 ° C . While sleeve bearings are best fit for straight mounting to guarantee optimal lube distribution and decrease wear, they offer a trusted and economical cooling solution for less demanding applications.

Understanding Performance: Airflow, Fixed Pressure, and the Liberty .

The primary function of an cooling DC axial fan is to move air, and the fan collection excels in this respect. The performance of a fan is generally identified by two essential metrics: airflow and static stress . Air movement, typically gauged in Cubic Feet per Min (CFM), stands for the volume of air the follower can relocate an open, unrestricted atmosphere. Static pressure, on the other hand, is the force the DC axial fan can apply to press air through challenges, such as heatsinks, filters, or densely stuffed digital parts.

The connection in between air movement and fixed stress is vice versa symmetrical; as one increases, the various other decreases. This relationship is visually stood for by the Air Performance contour provided in the series datasheet. This graph stories static stress against airflow for different fan rates (2000, 2500, and 3500 RPM). Recognizing this contour is essential for selecting the best fan for a specific application. For example, an application with high resistance (more obstruction to airflow) will certainly call for a DC axial fan with greater static stress to preserve sufficient air flow.

The fan collection provides a range of models with varying rates, permitting customers to pick the optimal equilibrium of air movement and fixed pressure for their demands. The offered designs include:.

• Reduced Speed: Running at 2000 RPM, these designs provide a maximum air flow of 21.26 CFM and an optimum static stress of 1.29 mmH2O, all while keeping a silent 26.6 dB( A) sound degree. These are perfect for applications where low noise is a primary problem.
• Tool Rate: At 2500 RPM, these fans deliver a well balanced performance with a maximum airflow of 29.51 CFM and a maximum fixed pressure of 2.77 mmH2O, with a moderate noise degree of 29.2 dB( A).
• High Speed: For applications demanding optimum cooling performance, the high-speed designs operate at 3500 RPM, pushing an excellent 36.64 CFM of air and creating a strong static pressure of 4.05 mmH2O. The compromise for this improved performance is a greater noise level of 35.6 dB( A).

This variety in efficiency, combined with the choice of 5V, 12V, and 24V operating voltages, makes the DC axial fan extremely flexible, efficient in catering to a broad range of cooling requirements.

Beyond the Essentials: Advanced Qualities and Modification .

The DC axial fan from exceeds conventional cooling services by providing a suite of innovative attributes and customization options. These options improve the functionality, integrity, and control of the DC axial fan, allowing for smooth combination right into sophisticated electronic systems.

Electric motor Security: The schedule of numerous motor security circuits, including Reverse Polarity (RP), Soft Start (SS), Vehicle Beginning (AS), Present Restricting (CL), and Over Voltage Security (OVP) , safeguards the DC axial fan and the host device from prospective electric mistakes. This guarantees a much more durable and fault-tolerant air conditioning system.

Signal Output: For applications requiring monitoring and control, the DC axial fan can be geared up with numerous signal outcomes. The Frequency Generator (FG) signal gives a square wave output whose frequency is proportional to the follower’s rotational rate, permitting precise speed tracking. The Turning Detector (RD) signal indicates whether the DC axial fan is revolving or has quit, giving a basic yet reliable way to identify DC axial fan failing. The Low-level Detector (LD) and Turning Detector with Brake (RDB) offer more control and feedback abilities.

Speed Control: Advanced speed control alternatives are additionally offered, including Pulse Size Modulation (PWM), Thermistor Control (TC), Voltage Control (VC), Constant Present (CC), and Consistent Rate (CS) . PWM control is especially significant, as it allows for exact and effective speed law by varying the task cycle of a control signal. This enables the system to dynamically change the fan rate based on thermal lots, optimizing cooling performance while reducing noise and power usage.

Conclusion: A Detailed Cooling Option .

The DC Axial Fan Brushless cooling 80x80x15mm, is a testament to meticulous engineering and a deep understanding of thermal management requirements. From its robust building and construction utilizing state-of-the-art, flame-retardant materials to its flexible efficiency alternatives and advanced control features, every element of this DC axial fan is created to supply reputable and effective cooling.

Whether the application demands the silent operation and cost-effectiveness of a sleeve bearing design for a consumer electronic gadget or the long-life, high-performance abilities of a sphere bearing model with innovative PWM control for a vital industrial system, the fan collection provides a tailored remedy. Its small 80x80x15mm framework enables integration into space-constrained layouts, while its range of voltage and speed choices makes sure compatibility with a large variety of power sources and cooling needs.

In a globe where digital devices are ending up being increasingly powerful and small, the value of reliable thermal monitoring can not be overstated. The DC axial fan stands all set to fulfill this difficulty, providing a trusted, efficient, and functional air conditioning solution that is genuinely the heart of any kind of well-designed digital system.
