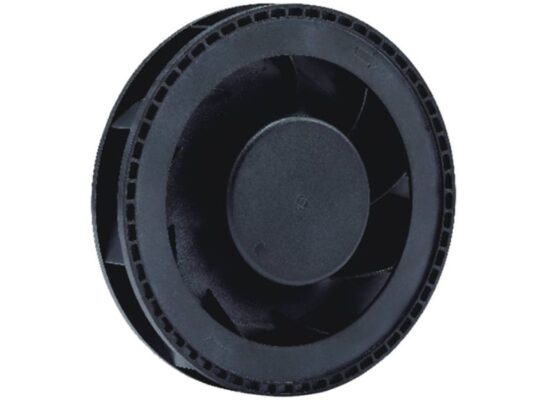

DC Radial Fan Backward Curved Centrifugal 100x25mm

The Apex of Compact Cooling: A Deep Study the 100x25mm Reverse Bent DC Radial Fan .

In the ever-evolving world of electronic devices and commercial equipment, the relentless quest of smaller, a lot more effective, and a lot more efficient styles offers a considerable challenge: thermal administration. As parts end up being much more largely packed, the requirement for innovative air conditioning options that are not just reliable but additionally compact, functional, and remarkably reliable ends up being critical.

Rising to fulfill this obstacle is the 100x25mm Backward Curved DC radial Fan, a marvel of modern engineering that supplies a powerful, multi-faceted cooling solution in a remarkably little impact. This DC radial Fan is not just a part; it is a detailed thermal management device, supplying unrivaled convenience with its multi-voltage operation, a spectrum of rate setups, and a layout built for severe durability.

The Aerodynamic Prevalence of the Backward Curved Impeller .

The core of this DC radial Fan’s extraordinary efficiency depends on its innovative backward curved impeller layout. Unlike axial fans that move air parallel to the electric motor shaft or forward-curved fans, this style includes blades that contour far from the direction of rotation. This specific aerodynamic account imparts several vital advantages that make it the exceptional selection for high-impedance applications.

Firstly, in reverse rounded fans are renowned for their high fixed performance. This means they are unbelievably efficient at converting the motor’s power right into air pressure. This ability to develop pressure is important for conquering resistance within a system, such as forcing air through dense heatsinks, complex ductwork, tightly loaded server blades, or high-efficiency particle air (HEPA) filters. While various other fans may see their air movement drop drastically when faced with such challenges, this DC radial Fan preserves durable efficiency, making sure critical parts receive the cooling they require.

Second of all, this layout possesses a non-overloading power feature. This is an intrinsic security function; as system resistance lowers and airflow rises, the power attracted by the electric motor reaches a peak and afterwards begins to drop. This stops the motor from attracting excessive current and overloading, even at its factor of maximum air flow (absolutely no fixed pressure). This self-regulating nature protects the electric motor from damage and improves the general reliability and safety of the system it is incorporated into.

Unprecedented Versatility: Multi-Voltage and Multi-Speed Efficiency .

Probably the most engaging feature of this centrifugal fan is its extraordinary operational versatility. It is crafted to execute optimally throughout numerous DC voltages and supplies a large range of rate specifications, enabling system designers to choose the exact efficiency factor required for any kind of provided scenario. This gets rid of the need to source various DC radial Fans for various applications, enhancing supply and style procedures.

12V DC Procedure: . When powered by a 12V DC resource, the DC radial Fan supplies three unique efficiency rates, stabilizing air movement, power intake, and acoustics:.

• Reduced Speed (L): Perfect for continuous, low-noise operation, this setting go for 2000 RPM. It takes in a plain 1.44 watts while providing 30.8 CFM (52.33 M FOUR/ human resources )of air flow and a static stress of 5.61 mm-H two O. With a sound level of only 32 dBA, it is excellent for workplace atmospheres or noise-sensitive medical devices.
• Medium Rate (M): Offering a boost in performance, the medium setup runs at 3000 RPM. Air flow boosts to 38.5 CFM (65.41 M FOUR/ hr )with a fixed stress of 8.36 mm-H ₂ O. This setting supplies a solid happy medium for applications needing boosted air conditioning without a substantial rise in sound (43 dBA).
• High Speed (H): For requiring cooling jobs, the high setting rotates at 4000 RPM. It provides a powerful 53.9 CFM (91.58 M SIX/ hr )of airflow and a substantial static stress of 16.61 mm-H ₂ O, making it efficient in managing substantial thermal tons. This peak performance for the 12V variety is accomplished at a moderate 50 dBA.

24V DC Procedure: . Switching to a 24V DC power source unlocks the fan’s greater efficiency capacity, matching the rate points of the 12V configuration but with different power characteristics:.

• Reduced (L) & Medium (M) Speeds: The performance metrics for air flow, rate, fixed stress, and noise at the low (2000 RPM) and medium (3000 RPM) settings are identical to the 12V operation. Nonetheless, the DC radial fan accomplishes this with higher electrical efficiency, attracting just 0.07 A and 0.10 A specifically, compared to the 12V currents.
• Broadband (H): At the 24V high setting, the DC radial fan matches the 12V high-speed efficiency of 4000 RPM, 53.9 CFM, and 16.61 mm-H two O, providing robust air conditioning for thermally difficult atmospheres.

Ultra-High Efficiency Mode (16.5 V DC – “U”): . For applications that demand the outright maximum efficiency this type element can use, the fan includes an unique ultra-high-speed setup, defined at 16.5 V.

• Ultra Rate (U): This mode pushes the fan to a remarkable 4800 RPM. It produces a formidable air flow of 63.8 CFM (108.40 M TWO/ hr) and a peak fixed pressure of 20.30 mm-H ₂ O. This setup is crafted to tackle the most severe thermal challenges in the most densely packed units, making certain system security under peak lots.

This amazing variety of operational settings makes this single DC radial fan version a “one-stop solution” for engineers, offering performance profiles suitable for every little thing from peaceful, constant air flow to aggressive, high-pressure area cooling.

Engineered for Longevity: Robust Materials and Building .

A DC radial fan’s performance is useless without dependability. This centrifugal follower is meticulously built from premium materials to guarantee an exceptionally long and maintenance-free life span.

• Bearing System: At its rotational core are high-precision sphere bearings. Superior in every method to typical sleeve bearings, ball bearings supply lower friction, higher effectiveness, and a lot longer lifespan, rated for an anticipated 50,000 hours of service. They are likewise much less conscious temperature variations and permit the fan to be placed in any type of orientation (upright, straight, or tilted) without affecting its performance or durability.
• Impeller and Real estate: The impeller and installing base are injection-molded from high-temperature-resistant (Polyamide) design plastic. This sophisticated polymer is picked for its exceptional stamina, rigidness, and thermal security, guaranteeing the impeller blades maintain their precise aerodynamic form also when operating continually in environments approximately 70 ° C (158 ° F).
• Electric motor Base: The DC radial fan’s electric motor is installed to an ADC12 die-cast aluminum base. This not just provides a stiff and vibration-dampening structure however also works as an efficient heat sink, attracting thermal energy away from the electric motor windings to ensure trendy, steady, and efficient operation.

The DC radial fan’s digital components are similarly robust, featuring Course B insulation and an insulation resistance of 10MΩ/ 500VDC, safeguarding against electric mistakes and making certain functional safety across its wide operating temperature range of -10 ° C to +70 ° C.

Applications and Integration .The mix of a compact 100x25mm framework, powerful performance, and flexible procedure makes this DC radial fan an excellent choice for a considerable series of applications:.

• IT and Telecommunications: Perfect for blade servers, network switches, routers, and other rack-mounted equipment where high-density electronic devices create substantial warm in restricted rooms.
• Medical and Lab Equipment: Its low-noise capabilities at lower speeds and high integrity make it ideal for diagnostic devices, logical tools, and clinical gadgets where both performance and client convenience are essential.
• Industrial Controls and Automation: Perfect for cooling PLCs, electric motor drives, and control cupboards on the factory floor, where reliability in severe atmospheres is non-negotiable.
• Air Purification and Heating And Cooling: The high static pressure is excellent for driving air via multi-stage filters in air cleansers or for usage in local ventilation systems.
• Digital Signage and LED Lights: Successfully dissipates heat from high-power LEDs and display vehicle drivers, avoiding performance deterioration and extending product life.

Integration is made easy by the clear mechanical diagram, which supplies exact measurements and denotes the three M4 brass nut installing points for a protected and simple installation.

In summary, the 100x25mm DC radial fan is a testimony to what is feasible in contemporary thermal management. It is a compact powerhouse that delivers an unparalleled mix of performance, convenience, and longevity. By supplying a large functional range across several voltages and rates, and by building it upon a structure of top quality materials and exceptional design, this DC radial fan offers designers and engineers with the supreme tool to solve complicated cooling obstacles, ensuring their items run cooler, last longer, and perform much better.
