EC Axial Fan 120x38mm High Static Pressure

Presenting a New Era of Cooling: The 120x38mm High-Pressure EC Axial Fan .

In the world of modern electronic devices and commercial systems, efficient thermal monitoring is not simply a suggestion; it is the keystone of integrity, performance, and long life. As elements come to be more effective and enclosures a lot more compact, the challenge of dissipating warm intensifies. Requirement cooling fans often fail, not able to get over the physical resistance inherent in largely jam-packed systems.

Resolving this critical need is a brand-new course of air moving company: the 120x38mm Electronically Commutated (EC) Axial Fan, an air conditioning solution diligently engineered for high-pressure applications. this EC axial fan stands for the peak of modern cooling modern technology, merging unrivaled power efficiency with the raw power called for to ventilate even one of the most difficult environments.

The EC Technology Benefit: Intelligence Satisfies Performance .

At the heart of this EC axial fan exists its Electronically Commutated electric motor. Unlike standard AC fans that mishandle and challenging to control, or standard DC fans that need a separate power converter, EC fans use the most effective of all worlds. An EC fan is essentially a brushless DC motor with incorporated electronics that take care of the AC-to-DC power conversion and motor control flawlessly. This advanced layout unlocks a host of advantages that are important for today’s requiring applications.

• Unmatched Energy Performance: The primary benefit of EC technology is its exceptional efficiency. By removing the rubbing and energy loss connected with the brushes discovered in traditional motors, EC fans eat dramatically much less power to carry out the very same quantity of job. In many cases, power financial savings can reach up to 70% contrasted to tradition air conditioning fans. This translates directly into lower operating expense, minimized carbon footprint, and much less thermal lots on the power facilities itself.
• Accuracy Rate Control: EC fans are naturally controlled. They can smartly change their rate in reaction to thermal needs, usually via simple control signals like PWM (Pulse Width Modulation) or a 0-10V input. This means the EC axial fan runs only as quick as needed, substantially lowering noise degrees throughout periods of reduced tons and saving even more energy. This clever functionality enables dynamic, receptive air conditioning systems that adjust in real-time.
• Extraordinary Life Expectancy and Integrity: The brushless design of an EC motor means there are none to wear down with time, an usual failure point in standard electric motors. This leads to a significantly extended functional life expectancy, making certain consistent efficiency for tens of countless hours without degradation or upkeep. This reliability is critical in mission-critical applications where a cooling failure can bring about disastrous system damages.
• Cooler Operation: The effectiveness of the EC electric motor means it produces very little waste warm of its very own. This contributes to a lower total temperature level within the room, further protecting sensitive electronic devices and expanding the life of the EC axial fan itself.

Mastering a High-Impedance Globe with High Static Stress .

While performance is vital, the defining feature of this 120x38mm fan is its capability to create immense static stress. Static stress is the measure of a fan’s power to push air against resistance. In an open space, air movement (determined in CFM – Cubic Feet per Minute) is the vital metric. Nonetheless, inside a digital tool, the air doesn’t have a clear path. It needs to navigate through challenges like:.

• Heatsinks with snugly loaded fins.
• Dust filters and EMI shields.
• Densely booming circuit card. .
• Server shelfs loaded with cables and components.
• Long or narrow ductwork. .

In these high-impedance environments, a fan with bad static pressure will see its airflow collapse to virtually absolutely no; it merely will not have the stamina to press via. This is where this EC axial fan excels.

As shown in the provided efficiency graph, this EC axial fan is made to preserve robust air flow also as atmospheric pressure boosts. The upright axis represents the atmospheric pressure the EC axial fan can develop (gauged in mm-H2O), while the straight axis reveals the resulting air flow (CFM). The curves demonstrate the EC axial fan’s performance throughout different operational rates. The top-most contour shows a phenomenal top static pressure of over 14 mm-H2O at zero air movement– a measure of its optimum pressing power.

A lot more notably, it preserves a really high pressure well into its practical airflow range, making sure that it can vigorously drive cooling down air via one of the most restrictive systems. This capability warranties that cool down air gets to the crucial parts that need it most, stopping thermal throttling and making certain system security.

Purpose-Built Layout for Uncompromising Efficiency .

Every aspect of this EC axial fan has been maximized for its function. The physical measurements of 120x120mm offer a basic frame size for wide compatibility, while the 38mm depth permits a larger, more effective motor and a much more hostile blade design than is possible in slimmer fans. This deepness is essential to accomplishing the torque and blade pitch necessary for producing high pressure.

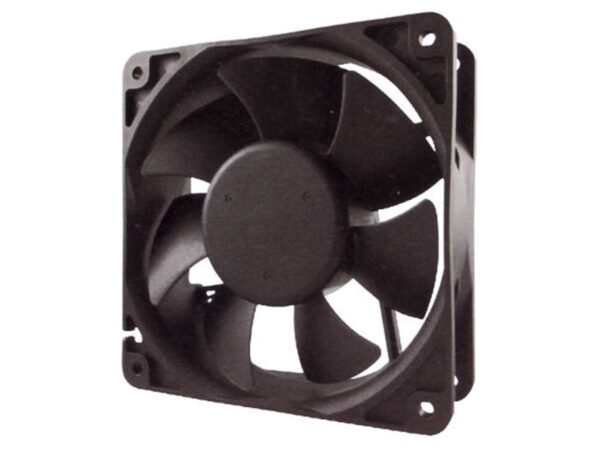

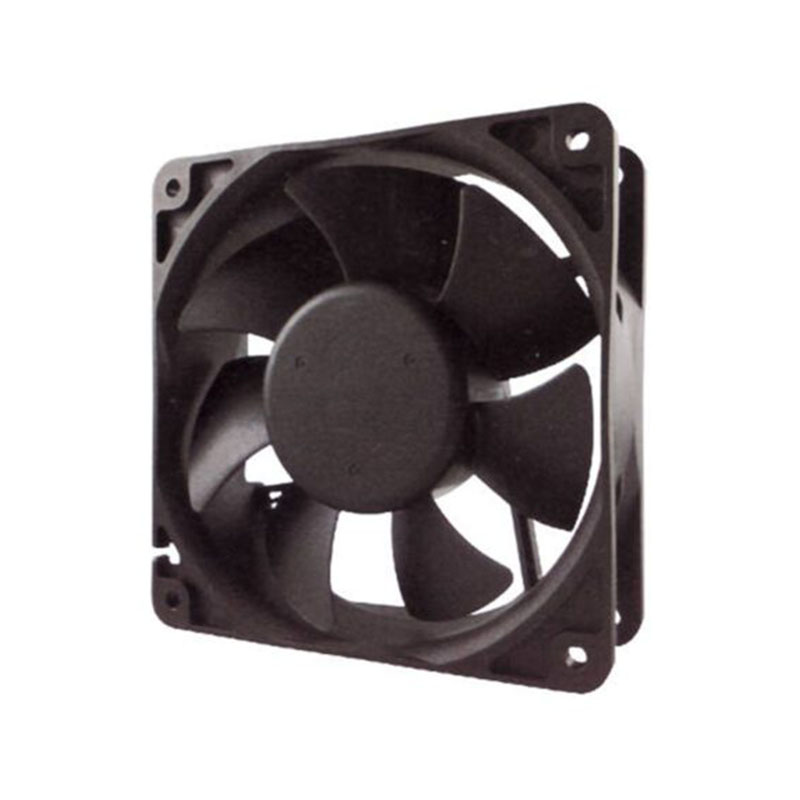

The technical drawing reveals a durable frame with a standard 105x105mm mounting hole pattern, making it an ideal upgrade or drop-in substitute in numerous server, industrial, and networking applications. the EC axial fan’s building and construction makes use of top notch, long lasting polycarbonate for both the frame and the impeller, guaranteeing structural stability and strength even in severe industrial settings.

The seven steeply-pitched, wide-chord blades are aerodynamically sculpted to “attack” into the air and compel it onward, a layout choice that focuses on stress over whisper-quiet operation, though the EC axial fan’s EC nature maintains sound degrees remarkably reduced for its performance class.

Applications .

The distinct combination of EC effectiveness and high fixed pressure makes this EC axial fan the perfect service for a large range of demanding industries:.

• IT and Data Centers: Perfect for cooling 1U/2U web servers, blade framework, network switches, and storage space varieties where parts are densely stuffed and air movement resistance is incredibly high.
• Telecommunications: Necessary for maintaining cellular base stations, routers, and other network facilities running reliably in all conditions.
• Industrial Automation: Gives critical cooling for variable regularity drives (VFDs), PLCs, and control cupboards on the , securing them from warm and impurities.
• Power Electronics: An essential part for cooling down big power supplies, solar inverters, and battery charging systems where thermal monitoring is directly linked to safety and performance.
• Medical and Scientific Tools: Guarantees steady operating temperature levels for delicate analysis and logical tools where efficiency can not be compromised.

To conclude, this 120x38mm EC axial fan is greater than just a part; it is an enabling innovation. It uses a powerful, smart, and extremely trusted solution for thermal management in settings where various other fans simply can not do. By incorporating the energy-saving, long-life benefits of an EC electric motor with a style optimized for getting rid of high system resistance, this EC axial fan offers the comfort that comes from recognizing your crucial systems are protected by a superior cooling engine.
