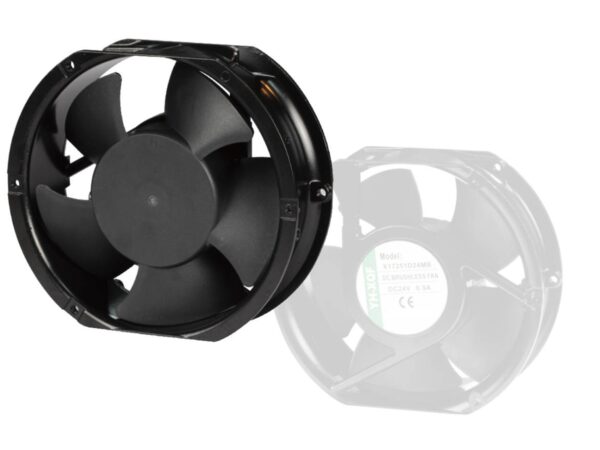

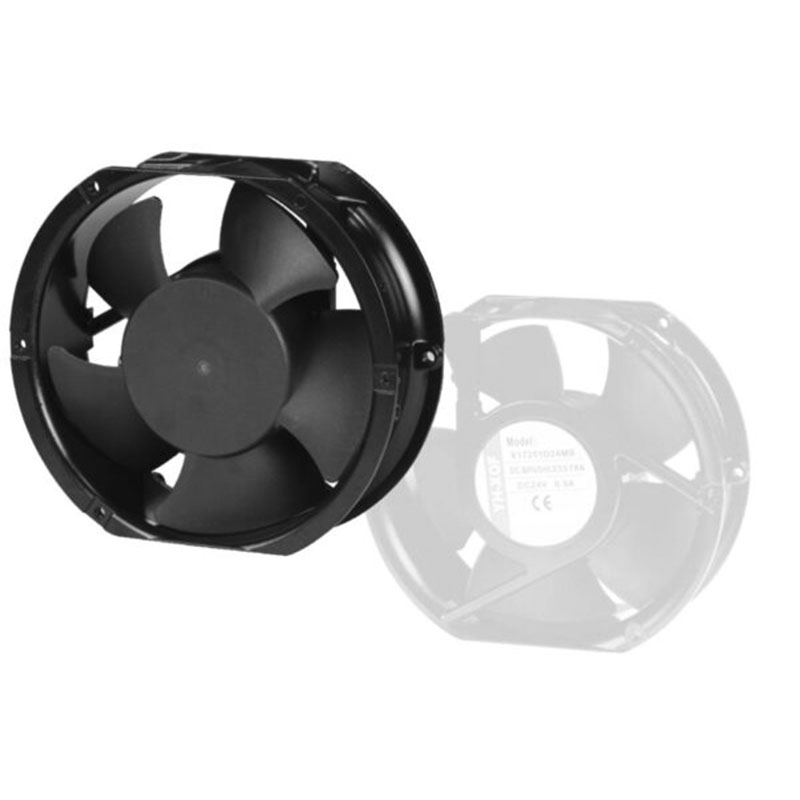

High Airflow DC Axial Fan Brushless 172mm x 51mm

The Ultimate Thermal Solution: The High-Performance DC Axial Fan172mm x 51mm Brushless

On the planet of advanced electronics and high-power industrial systems, effective thermal monitoring is not just a function– it is the cornerstone of dependability, performance, and long life. As elements come to be extra effective and compact, the difficulty of dissipating warm becomes significantly vital. A failure in cooling can bring about devastating system failure, pricey downtime, and a shortened product life-span. Resolving this obstacle head-on requires a cooling remedy that is not just powerful yet also smart, resilient, and versatile to a large range of requiring settings.

Enter the 172mm x 51mm brushless DC axial Fan, an awesome air conditioning option engineered for applications where efficiency can not be compromised. This DC axial Fanfan is made from scratch to deliver a massive volume of airflow with significant fixed pressure, making it the ideal choice for getting over the thermal obstacles located in largely stuffed web server racks, industrial control closets, telecommunications equipment, and high-performance computer systems.

Integrating robust building and construction, advanced motor technology, and smart attributes, this DC axial Fan is more than just a component; it is an assurance of operational stability.

Uncompromising Performance: Mastering Airflow and Pressure .

The main function of any kind of fan is to move air, and this 172mm DC axial Fan excels at this basic job. It can producing a tremendous optimum air movement of as much as 372.7 Cubic Feet per Min (CFM). This high-volume air flow is important for swiftly leaving hot air from a framework or requiring great, ambient air over important heat-generating components like CPUs, power supplies, and amplifiers.

Nevertheless, raw air movement alone is not constantly sufficient. In several real-world applications, airflow is impeded by obstacles such as heatsink fins, filters, grilles, and densely jam-packed parts. This resistance is referred to as system insusceptibility. To conquer this, a fan needs to create enough fixed pressure. This DC axial fan provides an outstanding maximum fixed pressure of as much as 1.79 inchH2O, providing the force required to preserve reliable airflow also in high-impedance atmospheres.

The relationship between air movement and static pressure is clearly illustrated in the DC axial fan’s efficiency (P&Q) curve. This chart demonstrates that as the resistance (fixed stress) in a system enhances, the resulting air movement declines. By providing several designs with ranked rates ranging from a peaceful 3400 RPM to an effective 5000 RPM, this Fan household supplies a spectrum of performance contours. This allows engineers to choose the ideal equilibrium of airflow and stress to match their system’s specific impedance, making sure ideal cooling without wasted energy.

Engineered for Stamina: Dependability in the Harshest Conditions .

Efficiency is meaningless without dependability. This DC axial fan is constructed to last, incorporating superior products and a durable bearing system to make certain a long and trouble-free operational life.

• Twin Sphere Bearing System: At the core of the Fan’s rotating assembly is a high-precision dual round bearing system. Compared to usual sleeve bearings, ball bearings provide significantly greater resilience, a much longer life expectancy, and a much bigger operating temperature level array. They are less susceptible to wear from heat and are capable of running perfectly in any orientation– upright, horizontal, or tilted– without jeopardizing performance or durability.
• Durable, Fire-Retardant Building And Construction: Both the fan framework and the impeller are built from top quality Thermal Plastic that meets the UL 94V-0 flammability requirement. This is a vital safety feature, licensing that the product will self-extinguish within secs if subjected to a straight fire, stopping it from contributing to the spread of a fire within an electronic room.
• Wide Temperature Tolerance: This DC axial fan is created to operate reliably in a broad range of thermal atmospheres, with a basic operating temperature level variety of -10 ° C to +70 ° C. Its storage space temperature variety is a lot more severe, from -40 ° C to +70 ° C, ensuring the fan’s stability is maintained throughout transportation and storage in unrestrained environments.
• Integrated Motor Security: To guard against typical electrical problems and physical blockages, the fan’s motor includes numerous layers of defense. It is insusceptibility secured, indicating the electric motor is created to hold up against a delayed or locked-rotor condition without stressing out. In addition, it includes reverse polarity protection, which protects against irreversible damages to the DC axial fan’s electronic devices if the positive and adverse power leads are mistakenly swapped throughout installation.

Intelligent Design: Advanced Control and Keeping Track Of .

Modern systems demand more than simply brute-force cooling; they call for smart elements that can incorporate effortlessly right into a larger management framework. This DC axial fan incorporates numerous innovative attributes to meet this demand:.

• Auto Restart: On the occasion that a foreign things physically obstructs the fan blades and triggers the electric motor to delay, the Car Restart function will instantly cut power to the electric motor. When the blockage is gotten rid of, the circuit will certainly sense the modification and immediately restart the fan, ensuring that cooling is restored without the requirement for hand-operated treatment.
• PWM Rate Control: Certain designs are readily available with Pulse Size Modulation (PWM) control. This function enables vibrant, exact control over the Fan’s rate via a 4th lead wire. A system’s motherboard or Fan controller can change the Fan’s RPM in real-time based on temperature sensor analyses. This enables “cooling down as needed”– the Fan runs at a peaceful, power-saving speed throughout low-load problems and ramps up to full power just when needed, optimizing acoustic performance and power efficiency.
• Checking and Diagnostics (FG/RD Signals): For mission-critical applications, recognizing the fan’s condition is crucial. Designs can be furnished with either a Regularity Generator (FG) or Turning Detector (RD) signal outcome. The FG signal, or tachometer output, offers a pulse train whose regularity is directly symmetrical to the fan’s rate, permitting the system to check RPM in real-time. The RD signal, or alarm system outcome, provides a simple high/low signal to indicate whether the fan is running or in a locked-rotor state, making it possible for the system to trigger an alert for immediate maintenance.

Versatile Combination and Applications .

With its standard 172mm x 162mm placing pattern and a depth of 51mm, this Fan is a versatile service for a wide range of applications. The accessibility of versions for 12V, 24V, and 48V DC systems enables simple combination into a large range of equipment throughout different markets.

Suitable applications consist of: .

• Data Centers and Networking: Cooling down for rack-mounted servers, network switches, routers, and storage selections where high element thickness produces immense warmth tons.
• Industrial Automation: Air flow for secured control cupboards containing PLCs, VFDs, and power products, shielding sensitive electronics from factory-floor problems.
• Telecoms: Crucial air conditioning for 48V-powered base stations, power rectification systems, and various other framework devices.
• Welding Devices and Plasma Cutters: Displacing fumes and supplying high-pressure cooling for power electronic devices.
• Renewable Energy: Thermal administration for solar energy inverters, wind turbine controllers, and battery charging systems.
• Large-Format 3D Printing: Fume removal and guaranteeing temperature security in enclosed construct chambers.

In conclusion, the 172mm x 51mm brushless DC axial fan is a masterful mix of raw power, industrial-grade longevity, and smart style. It provides the high air flow and static pressure needed to dominate the most hard thermal challenges while supplying the lasting reliability required by mission-critical systems. For engineers and developers seeking an extensive and powerful cooling remedy, this Fan stands for the pinnacle of thermal administration innovation.
