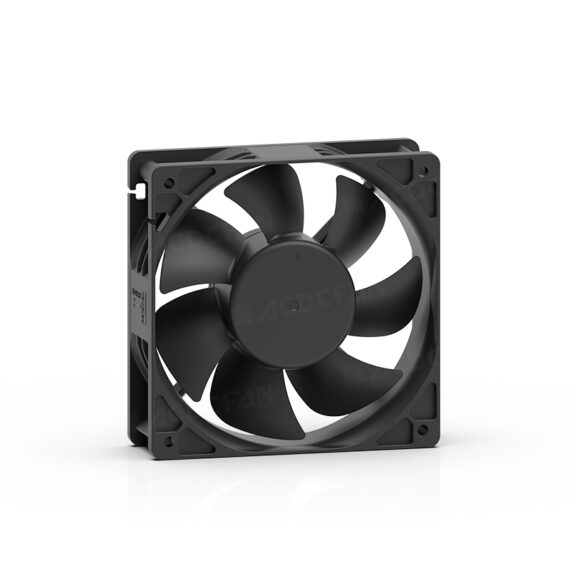

High Speed DC Axial Fan Cooling,120x38mm

The Conclusive Solution for Advanced Thermal Administration: The 120x38mm High-Speed DC Axial Fan

In the ever-evolving landscape of contemporary electronics and commercial equipment, efficient thermal administration is no more a second consideration but a foundation of efficiency, dependability, and long life. As components come to be extra effective and small, the challenge of dissipating warmth effectively ends up being extremely important.

Resolving this essential demand is the 120x38mm High-Speed DC Axial Fan, an engineering wonder designed to provide uncompromising air conditioning performance in one of the most requiring environments. This DC axial fan is not simply an element; it is a detailed cooling solution, supplying a perfect trifecta of powerful airflow, high fixed pressure, and exceptional flexibility to satisfy the rigorous needs of a huge array of applications, from high-density web server racks to sturdy commercial control cupboards.

Unmatched Efficiency Across Several Rates .

At the core of this DC axial fan’s layout is its capability to supply tailored cooling down power with three distinctive functional rates. This tiered approach makes certain that system developers can pick the precise balance of efficiency, power intake, and acoustics needed for their details application.

• High-Performance Rate (4500 RPM): For applications where maximum air conditioning is non-negotiable, the high-speed setup operates at a formidable 4500 RPM. At this rate, the DC axial fan creates an immense maximum air movement of 167.2 Cubic Feet per Min (CFM) (4.73 m TWO/ min). This tier is optimal for aggressively cooling high-wattage CPUs, GPUs, power supplies, and other heat-intensive parts. Enhancing this air movement is a peak static pressure of 23.55 mmH ₂ O (0.93 INH ₂ O), providing it the force essential to push air via dense heatsinks, high-impedance filters, and snugly packed web server chassis, making certain that amazing air reaches every crucial part.
• Well Balanced Tier (3500 RPM): Offering a fantastic blend of robust performance and reduced acoustic result, the medium-speed rate runs at 3500 RPM. It delivers a strong maximum air flow of 139.4 CFM (3.95 m ³/ min )and a substantial fixed pressure of 13.69 mmH ₂ O (0.54 INH TWO O). This makes it a functional workhorse for a wide range of applications, including networking devices, telecom equipment, and general-purpose unit air flow, where significant cooling is required without the sound degrees of a max-speed fan.
• Quiet Performance Rate (2500 RPM): When low-noise procedure is a top priority, the 2500 RPM tier gives highly reliable cooling with an impressively low acoustic impact of just 41.5 dB( A). It still produces a respectable maximum airflow of 97.91 CFM (2.77 m SIX/ minutes) and a static pressure of 7.62 mmH two O (0.3 INH TWO O), making it perfectly matched for workstations, audiovisual equipment, and office settings where performance can not come at the cost of a silent office.

The DC axial fan’s air efficiency contour shows a skillful layout, showcasing a gradual and foreseeable compromise between airflow and fixed stress. This indicates that even as it experiences system impedance (resistance to air flow), it maintains a significant section of its cooling power, a feature of a high-quality follower crafted for real-world conditions. This efficiency is available throughout a series of conventional DC voltages– 12V, 24V, and 48V — providing seamless combination right into diverse electric systems, from consumer electronic devices and automobile applications to commercial and telecommunications framework.

Engineered for Resilience and Steadfast Integrity .

A DC axial fan’s performance is only like its building. This 120x38mm DC axial fan is constructed to last, with both its framework and impeller crafted from high-grade Thermoplastic PBT (Polybutylene Terephthalate) . This material is renowned for its remarkable mechanical stamina, dimensional stability, and resistance to heat and chemicals. Seriously, it carries a UL 94V-0 flammability rating , meaning it is self-extinguishing and will certainly discontinue to shed within seconds of a fire source being eliminated. This is an important security attribute that provides satisfaction in high-value electronic systems.

To cater to various functional needs and budgets, the fan is offered with 2 unique bearing systems:.

• Dual Round Bearing System: This is the costs selection for applications requiring optimum durability and resilience. The ball bearing system offers a phenomenal life span of 70,000 hours of operation at 40 ° C. Moreover, it supports a very wide operating temperature level range, from a freezing -30 ° C to a hot 70 ° C , making it the clear-cut choice for mission-critical systems that run 24/7 or are deployed in severe, unchecked settings.
• Sleeve Bearing System: The sleeve bearing alternative supplies a cost-efficient and quieter option for much less extensive applications. It gives a trusted service life of 30,000 hours at 40 ° C and operates effectively within a temperature level series of -10 ° C to 55 ° C . This makes it an excellent option for customer electronic devices and general-use equipment where noise and price are vital factors to consider.

For applications revealed to the components, this DC axial fan can be tailored with an IP67 or IP68 defense ranking . An IP67-rated fan is completely secured versus dirt access and can endure momentary immersion in water as much as one meter. The IP68 score provides the highest degree of protection, accrediting it as dust-tight and appropriate for continuous submersion in water under defined problems. This optional ruggedization makes the fan a viable solution for outdoor signage, farming technology, aquatic electronics, and commercial wash-down locations.

A Suite of Advanced Control and Keeping An Eye On Features .

Beyond its raw mechanical efficiency, this DC axial fan is an absolutely intelligent tool, using a comprehensive collection of optional attributes for advanced control, surveillance, and protection.

• Smart Rate Control: The DC axial fan can be furnished with different rate control modes. Pulse Size Modulation (PWM) control is one of the most innovative, permitting a 4-pin connection to a motherboard or controller for specific digital regulation of the DC axial fan’s RPM. This enables the system to dynamically adjust cooling based upon real-time thermal loads, maximizing performance and reducing sound. Various other options consist of Thermal Control (TC) , where an onboard thermistor instantly adjusts fan rate based upon ambient temperature, and conventional Voltage Control (VC) for less complex analog modifications.
• System Monitoring and Responses: To ensure system integrity, the DC axial fan can be set up with essential signal outcomes. The Frequency Generator (FG) or Tachometer signal offers real-time rotational rate responses, allowing the system to verify that the fan is functional and running at the correct rate. The Rotation Detection (RD) or locked-rotor alarm sends out a straightforward high/low signal to inform the system promptly if the follower stalls or falls short, enabling preventative steps to stay clear of component getting too hot.
• Comprehensive Motor Protection: The fan’s motor is safeguarded by a host of incorporated defense circuits. Opposite Polarity Defense prevents catastrophic damages if the power leads are inadvertently turned around. Functions like Soft Start and Car Begin handle inrush existing on power-up and make sure the follower can dependably reactivate itself if physically blocked. Finally, Over-Voltage Security (OVP) and Present Restricting (CL) secure the electric motor from potentially harmful electrical irregularities, further boosting the fan’s lasting dependability.

To conclude, the 120x38mm High-Speed DC Axial Fan stands as a peak of modern-day air conditioning modern technology. It supplies an exceptional mix of raw cooling power, robust physical building and construction, and a suite of intelligent functions that offer unparalleled control and reliability. Its adaptability, with numerous speed rates, voltage alternatives, bearing systems, and optional environmental management, makes it the ideal option for an unbelievably varied variety of requiring thermal administration challenges.

Whether you are developing a high-performance computing cluster, a rugged commercial maker, or an innovative telecommunications network, this DC axial fan offers the performance, sturdiness, and knowledge needed to safeguard your investment and make sure peak functional performance.
