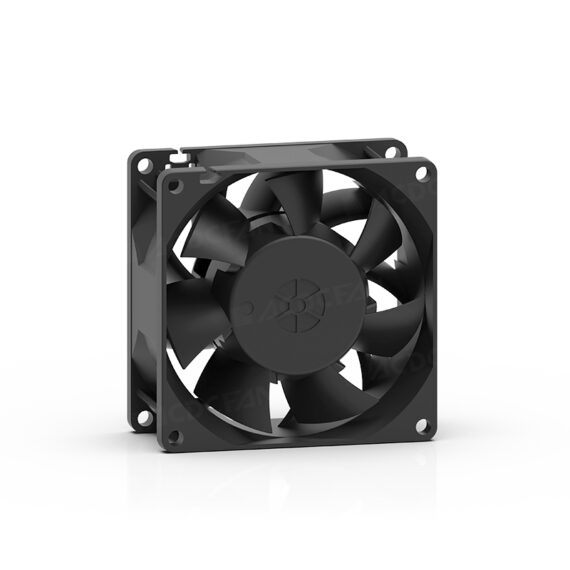

High Static Pressure DC Axial Fan 80x80x38mm

Utilizing Superior Air Movement: An In-depth Consider the DC Axial Fan .

In the world of electronics and machinery, effective thermal monitoring is not just a deluxe, yet a critical requirement. The DC Axial Fan, with its durable construction and flexible efficiency, stands as a testimony to the advancement in cooling technology. This 80x80x25mm follower is diligently engineered to provide optimum airflow, making sure the longevity and reliability of the elements it is designed to protect. From its durable materials to its adjustable functions, the DC axial fan is a testimony to’s dedication to top quality and performance.

Built to Last: Construction and Products .

The foundation of the DC axial fan’s resilience hinges on its option of materials. Both the DC axial fan framework and impeller are created from Thermoplastic PBT (Polybutylene Terephthalate) with a UL 94V-0 flammability score. This state-of-the-art material is renowned for its stamina, stiffness, and outstanding resistance to warm and chemicals, making it a perfect choice for the requiring settings in which these DC axial fans frequently run. The UL 94V-0 ranking signifies that the material will certainly self-extinguish within 10 secs after the fire is removed, supplying an essential safety and security feature in case of a fire.

Efficiency Tailored to Your Requirements .

The DC axial fan is not a one-size-fits-all solution. Acknowledging that various applications have differing cooling demands, provides a variety of models within this collection, each with distinct efficiency features. These versions are classified into three main speed degrees: low (L), tool (M), and high (H).

• Low-Speed Designs: Running at 2500 RPM, these DC axial fans supply a maximum air flow of 31.85 CFM (cubic feet per minute) or 0.9 m TWO/ minutes. They produce an optimum static pressure of 2.15 mmH ₂ O and operate at a peaceful 31.5 dB( A), making them suitable for applications where low sound is a priority. These are available in 12V, 24V, and 48V versions.
• Medium-Speed Versions: Stepping up the performance, the medium-speed designs go for 3000 RPM. This results in a greater optimum air flow of 38.23 CFM (1.08 m SIX/ min )and a static pressure of 3.1 mmH ₂ O. The noise degree increases somewhat to 35.7 dB( A). These models are additionally used in 12V, 24V, and 48V variations.
• High-Speed Versions: For applications demanding maximum cooling power, the high-speed versions run at an impressive 4500 RPM. This provides a considerable maximum air movement of 57.34 CFM (1.62 m THREE/ minutes) and a fixed pressure of 6.97 mmH ₂ O. The compromise for this high performance is a greater noise level of 45.4 dB( A). These effective fans are available in 12V, 24V, and 48V choices.

This tiered strategy permits engineers and system developers to select the accurate follower that meets their airflow, pressure, and acoustic requirements, maximizing both efficiency and individual experience.

Bearing Systems for Longevity and Integrity .

At the heart of any DC axial fan’s long life is its bearing system. The GD8025 Xflow Collection supplies two selections: sphere bearings and sleeve bearings.

• Round Bearings: Recognized for their sturdiness and lengthy service life, the ball bearing versions of the GD8025 flaunt an impressive 70,000 hours of procedure at 40 ° C. They can additionally operate in a larger temperature level variety, from -30 ° C to 70 ° C. This makes them suitable for critical applications where long-lasting reliability is extremely important.
• Sleeve Bearings: Sleeve bearings supply an even more cost-effective solution with a life span of 30,000 hours at 40 ° C. Their functional temperature range is from -10 ° C to 55 ° C. While having a much shorter life-span than ball bearings, they are a trustworthy choice for much less demanding applications.

The accessibility of both bearing kinds better enhances the convenience of the DC axial fan, allowing for a balance in between price and long-lasting efficiency.

Personalization for Specialized Applications .

understands that standard requirements may not constantly fulfill the special demands of every application. As a result, the DC axial fan offers a broad range of customization options.

• Electric motor Defense: A range of electric motor security functions are offered to enhance the fan’s toughness. These include Reverse Polarity (RP), Soft Start (SS), Vehicle Beginning (AS), Present Restricting (CL), and Over Voltage Protection (OVP). These securities secure the fan electric motor from electrical abnormalities, further extending its life-span.
• Signal Results: For systems that require monitoring and control, the DC axial fan can be furnished with various signal results. These consist of a Frequency Generator (FG) signal, a Turning Detector (RD) signal, a Rotation Detector with Brake (RDB), and a Low-Level Discovery (LD) signal. These signals supply beneficial responses on the fan’s operational condition, permitting intelligent system management.
• Speed Control: To attain dynamic thermal monitoring, several speed control settings are provided. These include Pulse Size Modulation (PWM), Thermistor Control (TC), Voltage Control (VC), Constant Current (CC), and Continuous Rate (CS). PWM control, specifically, allows for accurate and reliable speed law, enabling the fan to adjust its performance based on real-time temperature changes, leading to reduced energy consumption and noise levels.
• IP Protection: For applications in harsh environments exposed to dust and moisture, the DC axial fan can be customized with an IP67 or IP68 protection level. This ensures that the fan is fully protected against dust ingress and can withstand submersion in water, making it suitable for outdoor or industrial applications.

Applications .

The combination of its compact size, robust performance, and extensive customization options makes the DC Axial Fan a suitable cooling solution for a wide range of applications. These include, but are not limited to:.

• Telecommunications Equipment: Ensuring the reliability of routers, switches, and other networking hardware.
• Servers and Data Centers: Providing critical cooling for densely packed server racks.
• Industrial Machinery: Dissipating heat from motors, drives, and control cabinets.
• Medical Devices: Maintaining optimal operating temperatures for sensitive medical equipment.
• Consumer Electronics: Cooling high-performance PCs, audio/video equipment, and other electronic devices.
• LED Lighting: Managing heat generated by high-power LED arrays.

In conclusion, the DC Axial Fan is a highly versatile and reliable cooling solution. Its durable construction, wide range of performance options, and extensive customization capabilities make it an ideal choice for a vast array of applications. By providing efficient and dependable thermal management, the DC axial fan ensures the longevity and optimal performance of the electronic and mechanical systems it is designed to protect.
