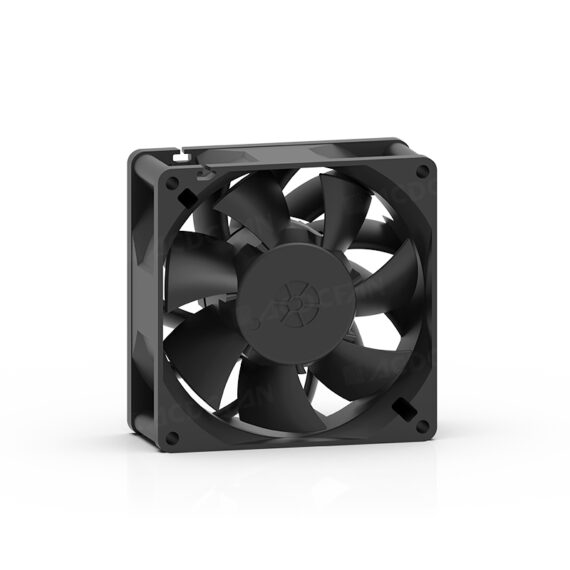

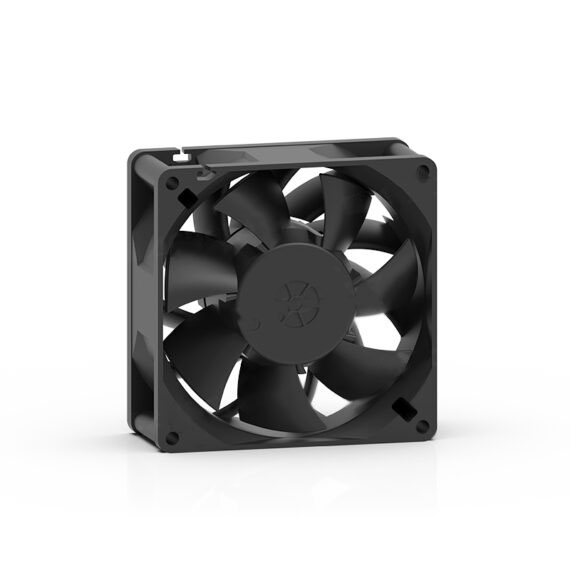

High Static Pressure DC Axial Fan 92x92x38mm Ball Bearing

In the ever-evolving landscape of modern-day electronic devices and industrial systems, efficient thermal administration is no more a secondary factor to consider however a keystone of integrity, efficiency, and longevity. As elements end up being extra effective and are loaded into increasingly dense configurations, the challenge of dissipating warm efficiently comes to be extremely important.

Resolving this critical need requires sophisticated cooling remedies that exceed basic air activity, requiring DC axial fan that can overcome resistance, operate accurately for years, and incorporate smartly with sophisticated control systems. This 92x92x38mm DC axial fan is crafted exactly for these demanding environments, representing a peak of design focused on high static pressure, remarkable toughness, and versatile performance.

Engineered for Durability and Toughness .

At the core of this DC axial fan’s style is a steady commitment to lasting dependability. Both the DC axial fan structure and the impeller are created from Thermoplastic PBT (Polybutylene Terephthalate), a high-performance design polymer renowned for its phenomenal mechanical stamina, tightness, and thermal stability. This material option makes sure that the DC axial fan keeps its structural integrity and specific dimensional resistances also under continual operation at raised temperature levels.

More boosting its safety and security and viability for use in qualified business and industrial tools, the PBT product fulfills the UL 94V-0 flammability standard. This is the greatest ranking for plastics, indicating that the material will self-extinguish within 10 secs after the flame resource is eliminated and will certainly not produce flaming drips. This crucial safety attribute offers assurance when integrating the DC axial fan right into mission-critical systems such as web servers, networking switches, and power supplies.

The functional heart of any type of DC axial fan is its bearing system, which determines its life-span, acoustic profile, and placing adaptability. This DC axial fan is furnished with a high-precision twin ball bearing system. Compared to more usual sleeve bearings, round bearings use considerable advantages. They generate less rubbing, allowing for greater rotational rates and better efficiency.

Much more notably, they are far more durable, showing minimal wear in time. This durable bearing system is the key enabler behind the DC axial fan’s impressive life span ranking of 70,000 hours when running at a continuous ambient temperature level of 40 ° C. This equates to virtually 8 years of constant, 24/7 operation, drastically reducing maintenance cycles and overall expense of ownership. Additionally, round bearings are less sensitive to alignment, permitting the fan to be placed flat, vertically, or at any type of angle without jeopardizing its efficiency or life-span.

The DC axial fan’s strength reaches a broad functional temperature level range, from an icy -30 ° C to a hot +70 ° C. This wide tolerance makes certain reliable startup and sustained efficiency in atmospheres that are not climate-controlled, from outside telecom enclosures to factory floors.

For applications in specifically rough or revealed environments, the DC axial fan can be better boosted with an optional IP67 or IP68 security rating. An IP67 ranking ensures the unit is entirely dust-tight and can stand up to immersion in water up to one meter for thirty minutes, while IP68 provides also better defense versus continual submersion. This makes the DC axial fan an excellent choice for industrial machinery, outside signs, or any kind of system revealed to dust, dampness, and washdowns.

A Deep Dive into High-Pressure Performance .

The standout function of this DC axial fan is its capacity to create incredibly high static pressure. While air flow, gauged in Cubic Feet per Min (CFM), describes the volume of air a fan can relocate open space, static stress, gauged in millimeters of water (mmH2O) or inches of water (IN H2O), explains the follower’s ability to push that air against resistance. This is a critical distinction for real-world applications.

The DC axial fan is available in three distinct performance tiers, categorized by their nominal speed: 4000, 6000, and 7500 RPM. The efficiency curves highlight the classic trade-off in between airflow and static stress for each rate:.

• Low-Speed Design (4000 RPM): This alternative supplies a balanced performance profile, delivering a considerable 82.04 CFM of optimum airflow and a solid 0.96 IN WATER (24.27 mmH2O) of optimum static pressure. It runs with a considerably lower sound degree of just 37 dB( A), making it suitable for atmospheres where acoustics are a worry however where a lot more pressure is required than a basic fan can give.
• Medium-Speed Design (6000 RPM): Taking a considerable step up, this model presses an excellent 123.05 CFM of air and generates a maximum static pressure of 1.43 IN WATER (36.4 mmH2O). This makes it an effective workhorse for cooling down largely packed 1U/2U web servers, storage selections, and network equipment where parts and heatsinks impede air flow.
• High-Speed Version (7500 RPM): At the top of the efficiency stack, this model is an uncompromising air conditioning giant. It boasts a massive maximum air flow of 164.07 CFM and a remarkable optimum static stress of 1.91 IN H2O (48.53 mmH2O). This level of stress is important for applications with extremely high resistance, such as cooling heatsinks with densely stuffed fins, forcing air through complicated ducting, or supplying air flow for rooms with filtered inlets that limit air flow.

This high-pressure capacity makes certain that a sufficient quantity of cooling down air reaches critical parts, even when the air course is restricted. This prevents the formation of hot spots and guarantees the whole system runs within its designated thermal envelope.

Power, Effectiveness, and Intelligent Control .

Flexibility is a vital aspect of this fan’s style, extending to its power and control alternatives. The collection is offered in 12VDC, 24VDC, and 48VDC variations to seamlessly integrate into a wide array of electrical systems. The 12V versions prevail in customer and prosumer electronic devices, workstations, and auto applications. The 24V versions are a staple in industrial automation, PLC closets, and 3D printers, while the 48V designs are common in the telecommunications and data facility sectors.

The DC axial fan’s layout likewise integrates countless choices for smart control and system tracking, which are essential for contemporary wise systems:.

• Speed Control: One of the most sophisticated choice is PWM (Pulse Size Modulation) speed control. This allows an external controller, such as a motherboard or committed DC axial fan controller, to specifically change the fan’s speed by sending an electronic signal. This makes it possible for dynamic air conditioning, where the fan runs quietly at low rates throughout still durations and increases aggressively just when the thermal tons rises. This maximizes the equilibrium between cooling efficiency, sound degree, and power usage. Other readily available control settings consist of thermal control (TC) through a thermistor, and voltage control (VC).
• Signal Output: To ensure system managers are constantly knowledgeable about the fan’s operational status, it can be furnished with signal results. The FG (Frequency Generator) or tachometer signal supplies a pulse train whose regularity is directly proportional to the fan’s speed, allowing for precise RPM tracking. The RD (Turning Detector) or alarm system signal gives a simple high/low logic state, notifying the system if the DC axial fan blades stops for any reason, allowing timely fault discovery and preventative upkeep.
• Motor Protection: To secure both the fan and the host system, a collection of defense circuits is offered. Reverse Polarity Defense (RP) avoids damages if the power leads are mistakenly connected backwards. Auto-Restart (SS/AS) ensures that if the DC axial fan blades is delayed or obstructed, the motor will instantly try to restart as soon as the blockage is removed. Over Voltage Security (OVP) guards the follower’s electric motor from potentially destructive voltage spikes.

In summary, this 92x92x38mm DC axial fan is a highly specialized and durable air conditioning remedy crafted for the most demanding applications. Its foundation of resilient, high-temperature products and a long-life round bearing system assures years of trusted solution. The fan’s outstanding static stress performance makes certain efficient cooling in high-impedance environments, while its vast selection of voltage, control, and defense options allows for smooth and smart assimilation right into any system.

From noise-sensitive workstations to rugged commercial cupboards and high-density data centers, this fan gives the power, precision, and endurance required to secure vital digital parts.
