Summary
Cooling fans are critical components of personal computers (PCs), responsible for maintaining optimal operating temperatures by managing heat generated by internal hardware.
By promoting airflow within the computer case, cooling fans prevent overheating and ensure that crucial components, such as the central processing unit (CPU) and graphics processing unit (GPU), function efficiently. Their importance is underscored by the fact that excessive heat can lead to thermal throttling, reduced performance, and even permanent damage to the hardware.
There are various types of cooling fans, including case fans, CPU fans, and GPU fans, each serving specific cooling functions. Case fans facilitate airflow throughout the computer case, while CPU and GPU fans are dedicated to cooling their respective components.
Additionally, liquid cooling systems utilize fans to enhance heat dissipation from coolant circulating through radiators, offering a high-performance cooling solution for demanding applications.
The design and specifications of cooling fans, such as size, bearing type, and noise levels, are significant factors that affect their performance. Users often consider these aspects when selecting fans to ensure compatibility with their systems and to achieve desired cooling efficiencies.
Furthermore, advancements in fan technology have led to quieter models that can operate effectively while minimizing noise output, appealing to users seeking a more peaceful computing environment.
While cooling fans are the most common solution for thermal management in PCs, alternative cooling methods, such as liquid cooling and passive cooling, also exist. Each approach presents unique advantages and disadvantages, prompting users to carefully consider their cooling needs and system configurations.
As the demand for high-performance computing continues to grow, understanding the role and functionality of cooling fans remains essential for achieving stable and reliable PC operation.
Table of Contents
Types of Cooling Fans
Cooling fans are essential components in computer systems, serving to manage heat generated by various components and maintain optimal operating temperatures. There are several types of cooling fans, each designed for specific applications within a PC.
Case Fans
Case fans are installed within the computer case to promote airflow throughout the enclosure. Their primary function is to draw cooler air from the outside and expel warm air from inside the case, ensuring that all components operate within safe temperature ranges. Most cases come with pre-installed fans, typically including at least one rear fan to facilitate the exhaust of hot air.
Common Sizes and Specifications
Case fans are available in various sizes, with common options being 120mm and 140mm. The choice of fan size impacts airflow and overall cooling efficiency, making it crucial to select fans that fit the case’s mounting options.
Specialty Fans
Fans may also feature additional functionalities, such as RGB lighting or customizable displays, appealing to enthusiasts who wish to enhance the aesthetic of their builds. These fans combine performance with visual appeal, making them popular in custom PC builds.
Central Processing Unit (CPU) Fans
CPU fans are specifically designed to cool the processor by dissipating the heat generated during its operation. Typically mounted directly on top of the CPU, these fans are critical for preventing overheating and ensuring the processor runs efficiently. High static pressure fans are often preferred for CPU cooling, as they can push air through heatsinks and dense layouts more effectively.
Graphics Processing Unit (GPU) Fans
Similar to CPU fans, GPU fans are dedicated to cooling the graphics card, which tends to produce significant heat during intensive graphical tasks. These fans work in tandem with the card’s heatsink to ensure that the GPU remains at an optimal temperature, preventing performance throttling or damage due to overheating.
Liquid Cooling Fans
In liquid cooling systems, fans are used to cool the liquid coolant circulating through the system. These fans are usually integrated into a radiator that dissipates heat from the liquid, enhancing the cooling efficiency of high-performance setups. Liquid cooling fans are designed to provide high static pressure, making them effective for pushing air through the radiator fins.
Functionality
Cooling fans play a critical role in maintaining optimal temperatures within a personal computer (PC) by facilitating airflow and dissipating heat generated by various components. Each component that utilizes electricity produces heat during operation, making effective cooling essential for sustaining performance and preventing overheating issues.
Airflow Management
A well-designed airflow system is vital for the efficient functioning of a cooling fan. The positioning of intake and exhaust fans directly affects the temperature regulation within the case. Intake fans are typically placed at the front or bottom, while exhaust fans are positioned at the rear or top.
This arrangement promotes a consistent flow of cool air into the system, replacing heated air that is expelled, thus driving optimal working conditions for the internal components.
Cooling Mechanisms
Cooling fans work in conjunction with other cooling mechanisms, such as heatsinks and thermal paste, to regulate temperatures effectively. For example, RAM modules often have integrated heatsinks to disperse heat, while CPUs and GPUs are commonly paired with dedicated cooling solutions that may include fans as part of a larger cooling system.
In some cases, positive air pressure is maintained when the total airflow from intake fans exceeds that of exhaust fans, which can help minimize dust accumulation by pushing air out through small openings.
Conversely, negative air pressure occurs when exhaust airflow is greater, drawing in unfiltered air and potentially increasing dust levels within the case, although it may enhance overall cooling performance.
Importance of Maintenance
To ensure the cooling fans operate effectively, regular maintenance is necessary. This includes cleaning dust buildup, which can obstruct airflow and hinder cooling performance. Furthermore, utilizing high-performance fans or adjusting fan speeds may be required in configurations where airflow is restricted, such as in compact or soundproof cases.
Benefits of Cooling Fans
Cooling fans play a crucial role in maintaining the optimal performance and longevity of personal computers (PCs). They are essential components that help manage the heat generated by internal hardware, ensuring that temperatures remain within safe operating limits. The benefits of cooling fans can be categorized into several key areas.
Temperature Regulation
Cooling fans are primarily designed to dissipate heat produced by critical components such as the CPU, GPU, and power supply unit (PSU). By moving air through the system, fans help to establish thermal equilibrium, where the heat produced by these components is equal to the heat dissipated into the environment. This regulation is vital, as excessive heat can lead to thermal throttling or permanent damage to hardware.
Enhanced Performance
Effective cooling allows a computer to perform at its peak capability. During demanding tasks, such as gaming or video editing, components can generate significant heat. Cooling fans help to stabilize temperatures, enabling the hardware to handle increased workloads without experiencing performance dips or crashes.
This is particularly important for users engaging in overclocking, where CPUs are pushed beyond their factory-set limits, resulting in higher heat generation.
Improved Longevity
Consistent cooling through efficient airflow can significantly extend the lifespan of computer components. High temperatures can shorten the operational life of hardware, so keeping temperatures in check can lead to a reduction in the frequency of replacements and repairs.
Fans equipped with reliable bearings, such as ball bearings, can further enhance durability, offering better Mean Time Between Failures (MTBF) ratings.
Cost-Effectiveness
Investing in good cooling solutions, such as high-quality cooling fans, is often more cost-effective than continually replacing overheated or damaged components. Users can achieve substantial performance improvements and longevity from their existing systems without incurring the costs associated with upgrading hardware.
Noise Level Management
While cooling fans can introduce noise, advancements in fan technology have led to the development of quieter models that minimize noise output without compromising cooling efficiency. This allows users to enjoy a more peaceful computing environment, especially during intensive tasks.
Design and Specifications
Key Considerations in Cooling Fan Design
When selecting a cooling fan for a PC, several critical design considerations must be taken into account to ensure optimal performance and compatibility with other components. These considerations include size compatibility, durable construction, aesthetic appeal, user-friendly installation, and robust warranty and support options.
Choosing the right fan can significantly enhance the temperature regulation of electronic devices and contribute to long-term satisfaction in engineering applications.
Size Compatibility and Mounting

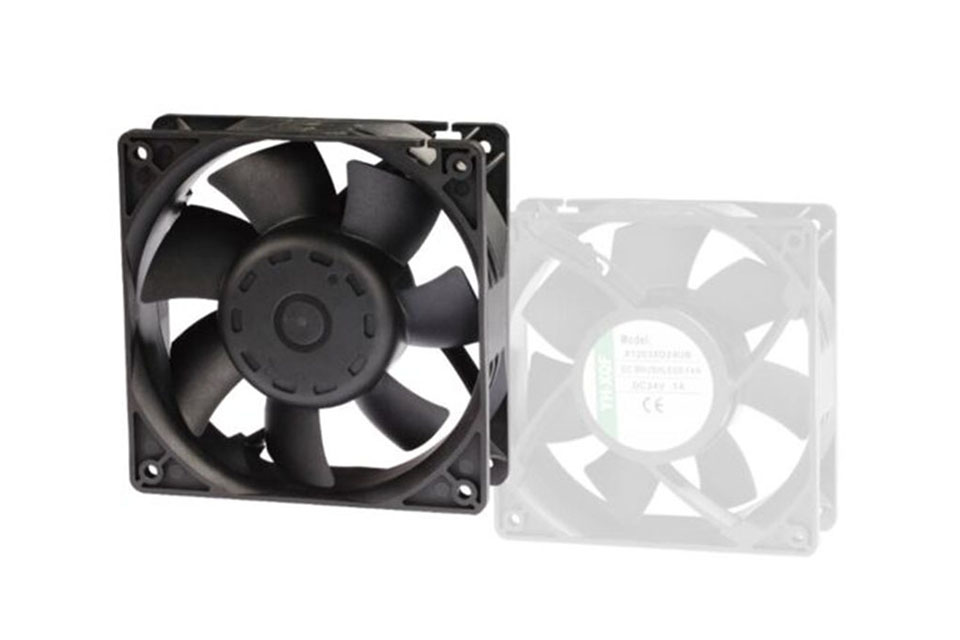

The dimensions and mounting holes of a fan must be suited to the equipment it will be used with. Most cooling fans are designed in square or round frames, with common sizes including 40 mm, 60 mm, 80 mm, 120 mm, and 140 mm.
Proper sizing is crucial, as incompatibility can lead to installation issues and ineffective thermal management. Engineers must also ensure that the Thermal Design Power (TDP) rating of the fan aligns with the needs of the system to prevent overheating.
Bearing Types and Performance
The type of bearings used in a cooling fan greatly influences its noise levels, lifespan, and operating characteristics.
Ball Bearings: Known for their durability and long service life, ball bearings can last over 60,000 hours at elevated temperatures. However, they may not be the quietest option.
Sleeve Bearings: These tend to be quieter and less expensive but have a shorter lifespan and may perform poorly in high-temperature environments.
Fluid Dynamic Bearings: These offer near-silent operation and good longevity but are typically more expensive than sleeve bearings.
Rifle Bearings: A hybrid option that combines the advantages of sleeve and ball bearings, offering a good balance of noise reduction and lifespan. Selecting the appropriate bearing type is essential for achieving the desired performance characteristics of the cooling fan.
Noise Reduction Features
Modern cooling fans incorporate advanced noise reduction technologies to minimize operational sound levels. Key features that contribute to quiet performance include optimized blade designs, advanced motor technologies, and vibration-dampening materials.
Some fans can operate at sound levels as low as 10-20 dBA, making them nearly imperceptible during operation. Additionally, dynamic speed controls allow fans to adjust their operation based on system temperature, further enhancing quiet performance.
Aesthetic Appeal and Customization
Aesthetics play an increasingly important role in the selection of cooling fans, particularly in environments where design and functionality must align.
Features such as customizable colors, LED lighting, and sleek designs not only enhance the visual appeal of a workspace but also contribute to a more enjoyable user experience. A growing emphasis on design integration indicates that consumers are more likely to choose products that are visually attractive.
Installation and Maintenance
Installation of Cooling Fans
Installing case fans in a PC is a straightforward process, as most cases come with predefined mounting points located at the front, rear, top, bottom, and sometimes the sides. The common fan sizes supported by cases are usually 120mm and 140mm, so it is advisable to consult the case’s documentation to ensure compatibility.

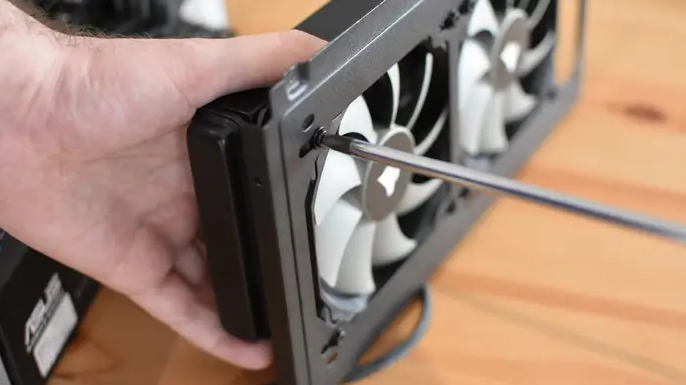

The installation involves simply inserting the fan into the designated space, aligning it with the mounting holes, and securing it with four screws. After securing the fan, it is necessary to connect the power cable to the appropriate fan header on the motherboard, and if applicable, an RGB header for customizable lighting effects. Removing a fan is equally easy, requiring disconnection from power and RGB connectors, followed by unscrewing the fasteners to take it out.
Considerations for Effective Airflow
When planning the installation of cooling fans, understanding airflow dynamics is essential. It is generally more efficient to exhaust air out of the case rather than blow air in, particularly due to the presence of internal obstacles that can create turbulence and eddy currents.
Exhausting allows the air to follow the path of least resistance, which can also contribute to quieter operation. Users should strive to balance the intake and exhaust fans, ensuring that the intake fans are positioned to direct cool air towards critical components like the CPU and GPU. Typically, front-mounted intake fans work best, while bottom intake fans can be effective in cases elevated off the ground.
Maintenance of Cooling Fans
Proper maintenance of cooling fans is crucial for ensuring their longevity and effectiveness. Dust buildup can significantly hinder airflow and cooling performance, so regular cleaning of dust filters and fan blades is recommended. The type and density of dust filters used can impact airflow resistance; tighter meshes may prevent dust from entering but can also clog more easily. Therefore, it is advisable to choose filters that strike a balance between dust prevention and airflow efficiency.
Additionally, engineers and users should prioritize cooling fan designs that facilitate easy installation and maintenance. Features such as tool-less installation and modular designs can simplify the process of replacing or upgrading fans. As system performance demands increase, employing high-quality thermal paste between the CPU and cooler, adding extra fans, or considering liquid cooling solutions can also enhance thermal management. Adopting these practices can help maintain optimal operating temperatures and ensure the stability and longevity of the system.
Alternatives to Cooling Fans
Cooling fans are widely utilized in personal computers to dissipate heat from components and maintain optimal operating temperatures. However, there are several alternative cooling methods that can be employed, each with its advantages and disadvantages.
Passive Cooling
Passive cooling relies on natural convection to dissipate heat without the use of fans. This method employs heat sinks designed to increase the surface area in contact with air, allowing heat to be transferred away from components effectively. Carefully designed heatsinks can dissipate substantial heat, sometimes up to 100 W, solely through natural convection, making it a reliable choice for low-power systems and components that do not generate excessive heat.
Liquid Cooling
Liquid cooling systems are another alternative, using a coolant, typically water or a specialized fluid, to absorb heat from electronic components. These systems are more efficient than air cooling due to the higher thermal conductivity of liquids, making them particularly suitable for high-performance applications and overclocking. Liquid cooling can be implemented through All-in-One (AIO) systems, which offer ease of installation and maintenance, or custom loops that allow for tailored configurations for enhanced performance and aesthetics.
Thermoelectric Cooling
Thermoelectric cooling utilizes the Peltier effect, where an electric current causes a temperature difference across a thermoelectric module. This method allows for localized cooling and precise temperature control, making it beneficial for high-power electronic systems where traditional cooling methods may be insufficient.
Phase Change Cooling
Phase change cooling systems leverage refrigerants that change state from liquid to gas and back to liquid to absorb and release heat. This cooling technique is highly effective for devices that generate concentrated heat, as it allows for significant heat transfer in compact spaces.
Natural Convection Cooling
Natural convection cooling relies on the principle of warm air rising and cool air sinking, which can effectively manage temperatures in systems designed to minimize heat generation. This method can be implemented through proper orientation and placement of components and heatsinks, reducing the need for active cooling solutions like fans.
While cooling fans remain popular for their efficiency and cost-effectiveness, these alternative cooling solutions provide viable options for users seeking quieter, more reliable, or space-efficient methods to manage heat in their PCs. Each alternative presents unique benefits, making it essential for users to consider their specific needs when selecting a cooling solution.
