High-CFM Brushless DC Axial Fan for Quiet Cooling

Reinventing Compact Cooling: The High-CFM Brushless DC Axial Fan .

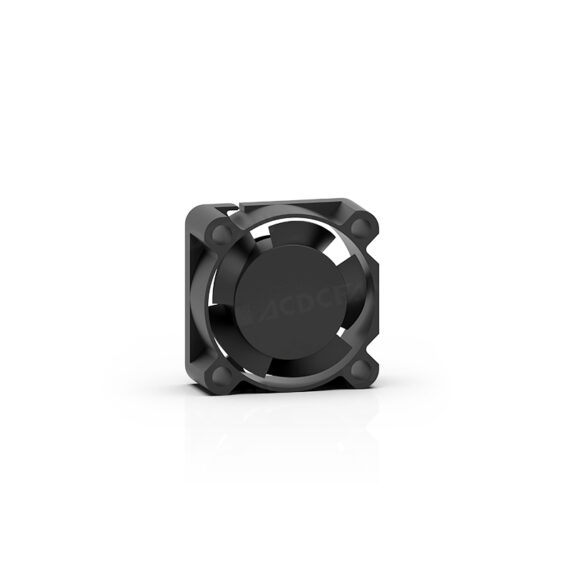

In the ever-evolving landscape of electronics, where parts end up being much more effective and small, reliable thermal administration is no more a deluxe however an important necessity. Responding to this need, our follower introduces the series, a line of high-performance 30x30x10mm brushless DC axial fan.

This DC axial fan is carefully crafted to deliver an exceptional equilibrium of high air flow (CFM), impressive static pressure, and whisper-quiet operation, making it the premier selection for a huge selection of space-constrained applications. From largely stuffed web server shelfs and telecommunication equipment to cutting-edge consumer electronic devices and commercial control systems, the DC axial fan supplies a durable and dependable air conditioning remedy that ensures optimum performance and durability of sensitive elements.

The core of the collection’s remarkable performance lies in its innovative brushless DC electric motor modern technology. This layout not just adds to a substantially longer operational lifespan contrasted to standard motor types however additionally boosts performance, lessening power consumption while taking full advantage of cooling potential. The series is built for resilience, with both the follower frame and impeller built from Thermoplastic PBT UL 94V-0, a product renowned for its high stamina, heat resistance, and flame-retardant residential or commercial properties. This makes certain that the follower can endure the rigors of continuous operation sought after thermal environments.

Acknowledging that a one-size-fits-all technique is insufficient for the varied needs of contemporary electronic devices, the DC axial fan is available in a wide variety of arrangements. Engineers and designers can pick from multiple voltage alternatives, including 5V, 12V, and 24V DC, to flawlessly incorporate the fan right into different power designs. In addition, the DC axial fan is supplied in three distinctive rate and performance rates: Reduced (L), Tool (M), and High (H). This permits exact customizing of the air conditioning remedy to the specific needs of the application, whether the priority is near-silent operation or optimum heat dissipation.

Unparalleled Performance in a Compact Kind Variable .

Regardless of its petite 30x30x10mm framework and a plain 7.6 g weight, the DC aixal fan loads a powerful strike. The high-speed model, the GD3010H, is a testament to this, boasting an outstanding rotational rate of 13,000 RPM. This model supplies a maximum air movement of 4.22 CFM (Cubic Feet per Min) and an amazing optimum fixed pressure of 9.77 mmH ₂ O. Such high static pressure is essential in applications with high-density element layouts or restricted air flow courses, as it makes it possible for the follower to effectively press air via obstacles and make certain that cool air gets to critical components.

For applications where acoustic efficiency is critical, the DC axial fan version offers an engaging option. Running at a more subdued 8,500 RPM, this variant offers a commendable 2.76 CFM of air flow while preserving a sound level of simply 27.5 dB( A). This makes it a suitable option for office devices, consumer electronics, and any type of atmosphere where low sound is a vital factor to consider. The model strikes a perfect balance between the two, with a speed of 10,500 RPM, an air movement of 3.41 CFM, and a modest sound degree of 30.2 dB( A), making it a versatile alternative for a wide variety of applications.

The air performance of the DC axial fan is clearly shown in the provided performance contour, which plots static stress versus air flow for each of the 3 speed variants. This information is important for engineers, enabling them to precisely predict the DC axial fan’s efficiency within their details system insusceptibility, guaranteeing that the selected follower will fulfill the called for cooling specs.

Engineered for Durability and Reliability .

The integrity of a cooling DC axial fan is directly connected to the longevity of the elements it is created to secure. We has actually engineered the collection with this principle at its core. The series uses a choice of two high-quality bearing systems: ball bearing and sleeve bearing.

The sphere bearing choice is developed for maximum resilience and a lengthy operational lifespan, rated for a remarkable 70,000 hours of continual operation at 40 ° C. This makes it the ideal option for mission-critical applications where integrity is non-negotiable. Round bearing followers additionally have a broader operating temperature level array, from -30 ° C to 70 ° C, making them ideal for use in a lot more severe environments.

For applications with less stringent life expectancy needs or where expense is a more significant factor, the sleeve bearing alternative offers a reliable and cost-effective choice. With a life span of 30,000 hours at 40 ° C and an operating temperature range of -10 ° C to 55 ° C, the sleeve bearing variants still offer exceptional efficiency and reliability for a large range of consumer and industrial applications.

Advanced Features and Personalization for Tailored Solutions .

The DC axial fan goes beyond standard air conditioning fans by providing an extensive collection of offered features that allow for innovative control and system surveillance. These optional functions offer an additional layer of intelligence and security, making it possible for extra advanced thermal administration techniques.

Electric motor Protection: .

• Reverse Polarity (RP): Safeguards the DC axial fan from damages if the power supply is unintentionally gotten in touch with the incorrect polarity.
• Soft Beginning (SS): Progressively raises the DC axial fan rate on startup to decrease electric and mechanical anxiety.
• Car Beginning (AS): Guarantees the DC axial fan automatically reactivates if the motor is stalled or obstructed.
• Current Limiting (CL): Limits the existing attracted by the fan to a secure level.
• Over Voltage Security (OVP): Protects the fan from damages in case of a voltage spike.

Signal Result: .

• Regularity Generator (FG): Gives a tachometer signal that outputs a square wave, with the frequency proportional to the DC axial fan’s speed. This permits precise tracking of the fan’s rotational rate.
• Rotation Detector (RD): Results a high signal when the follower is rotating and a reduced signal when it quits, providing a basic and reliable means to identify follower failing.
• Turning Detector with Bar (RDB): Similar to the RD signal yet with an included bar to suggest a secured rotor condition.
• Lock Detector (LD): Outcomes a signal specifically when the DC axial fan’s blades is locked.

Rate Control Mode: .

• Pulse Width Inflection (PWM): Enables specific control of the follower rate by differing the task cycle of a PWM signal. This is a highly reliable method of speed control that is extensively utilized in contemporary electronics.
• Thermal Control (TC): Instantly readjusts the fan rate based on the temperature level measured by a thermistor.
• Voltage Control (VC): Enables the follower speed to be managed by varying the input voltage.
• Consistent Current (CC): Preserves a continuous current to the follower motor.
• Constant Rate (CS): Makes sure the DC axial fan runs at a continuous rate, despite minor voltage changes.

These advanced attributes, integrated with the wide variety of voltage and rate alternatives, make the collection one of one of the most flexible and personalized compact air conditioning remedies on the market. We encourage consumers with specific demands to contact us to talk about customized options that are flawlessly customized to their requirements.

Versatile Applications Across Countless Industries .

The compact size, high performance, and progressed features of the series make it a suitable cooling solution for a wide variety of applications where room goes to a premium and effective warm dissipation is vital. These include:.

• Infotech and Telecoms: Cooling down network switches, routers, and compact web server elements.
• Industrial Controls: Preserving ideal operating temperatures in PLCs, motor drives, and various other control system parts.
• Customer Electronics: Offering quiet and reliable air conditioning for set-top boxes, projectors, and various other home enjoyment tools.
• Medical Devices: Making sure the integrity of sensitive medical equipment.
• Automotive Electronics: Cooling infotainment systems and other in-vehicle electronic devices.
• LED Illumination: Dissipating warmth from high-power LED components to make sure optimal performance and life-span.
• 3D Printers and Hobbyist Electronic Devices: Providing necessary cooling for hotends and various other crucial elements in 3D printers and various do it yourself electronics jobs.

To conclude, the DC axial fan stands as a testament to advancement in small thermal administration. By incorporating high air movement, high fixed pressure, and silent procedure with a durable style, lengthy life span, and a vast variety of innovative attributes, the DC axial fan provides designers and developers with an effective and versatile device to solve the cooling obstacles of today’s and tomorrow’s digital tools. For those seeking a premium, dependable, and customizable air conditioning option in a compact form variable, the collection is the conclusive choice.
